ASTM B564 UNS N04400 Monel 400 Stainless Steel 90 Degree Elbow
ASTM B564 UNS N04400 Monel 400 Stainless Steel 90 Degree Elbow
ASTM B564 UNS N04400 Monel 400 Stainless Steel 90 Degree Elbow
ASTM B564 UNS N04400 Monel 400 Stainless Steel 90 Degree Elbow
ASTM B564 UNS N04400 Monel 400 Stainless Steel 90 Degree Elbow
ASTM B564 UNS N04400 Monel 400 Stainless Steel 90 Degree Elbow
ASTM B564 UNS N04400 Monel 400 Stainless Steel 90 Degree Elbow
ASTM B564 UNS N04400 Monel 400 Stainless Steel 90 Degree Elbow
ASTM B564 UNS N04400 Monel 400 Stainless Steel 90 Degree Elbow
ASTM B564 UNS N04400 Monel 400 Stainless Steel 90 Degree Elbow
Specifications
Brand Name :
YUHONG
Model Number :
ASTM B564 Monel 400 Steel Pipe Fittings 2 90 degree elbow
Certification :
API , ABS, DNV, GL , LR, NK.
Place of Origin :
CHINA
MOQ :
1
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T
Delivery Time :
20-80
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Standard :
ANSI,ASME
Shape :
Elbow
Connection :
Female
Technics :
Forged
Type :
Elbow
Size :
Customized Size
Application :
gas and oil pipes
Color :
Gray
Description

ASTM B564 Monel 400 Steel Pipe Fittings 2 90 degree elbow​

We are one of the biggest projects pipeline products supplier in China. Our products contain steel pipe/tube,fittings, flanges. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.

Monel 400 FORGED FITTINGS, ASTM B564 UNS N04400 3000# 90° ELBOW MSS SP-95 ASME B16.11

Square Socket Reducer Inserts , Stainlesss, Carbon Steel , Duplex Steel , Nickel Alloy Steel.

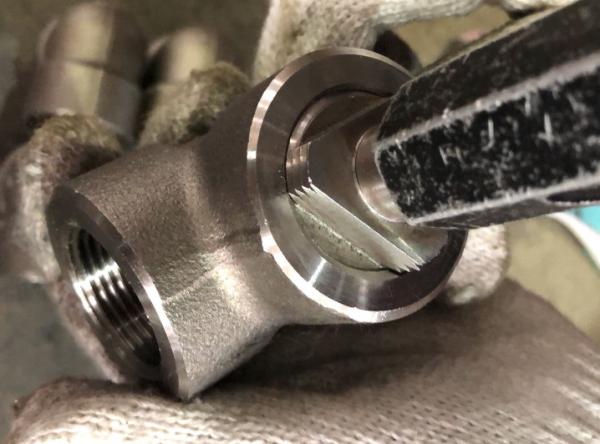

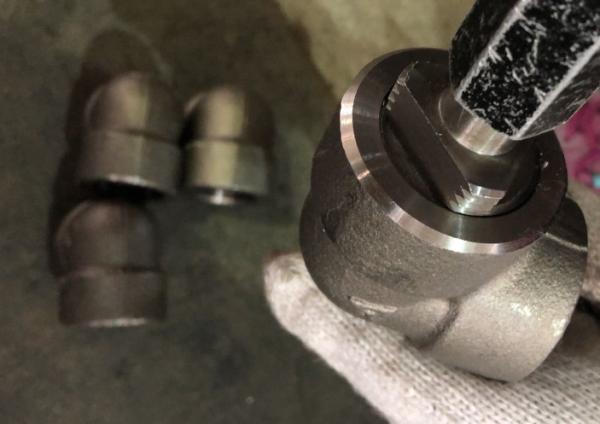

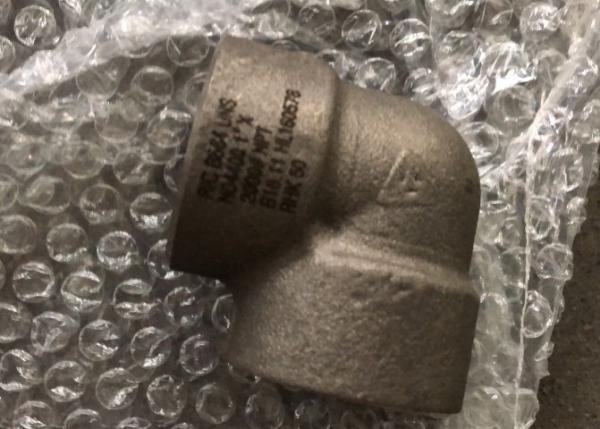

Product Pictures and Drawings
ASTM B564 UNS N04400 Monel 400 Stainless Steel 90 Degree Elbow ASTM B564 UNS N04400 Monel 400 Stainless Steel 90 Degree Elbow ASTM B564 UNS N04400 Monel 400 Stainless Steel 90 Degree Elbow ASTM B564 UNS N04400 Monel 400 Stainless Steel 90 Degree Elbow
Type1
 Type2

Monel 400 Chemical Composition

Chemical Requirements
Monel 400 Ni C Mn S Si Cu Fe
Max 0.3 2 0.024 0.5 34 2.5
Min 63 28

Monel 400 Mechanical Properties

Mechanical Property Requirements
Monel 400 Ultimate Tensile Yield Strength (0.2% OS) Elong. in 2 in. or 50mm (or 4D), min.,% R/A Hardness
Cold Worked/SR
Min 87 KSi 60 KSi 20B
Max
Min 600 MPa 415 MPa
Max
Hot Worked/SR
Min 80 KSi 40 KSi 30D
Max
Min 552 MPa 276 MPa
Max

Dimensional Data
Socket weld reducer Inserts availbale in class 3000, 6000 and 9000
Class 3000 Class 6000 Class 9000
Nominal Pipe Size C D Fitting A B E Fitting A B E Fitting A B E
Type Type Type
3/8 x 1/4 0.675 0.555 1 7/16 3/4 15/16 1 7/16 7/8 1
1/2 x 3/8 0.85 0.69 1 7/16 13/16 1 1/16 1 7/16 15/16 1 3/16
1/2 x 1/4 0.85 0.555 1 7/16 13/16 15/16 1 7/16 7/8 1
3/4 x 1/2 1.06 0.855 1 7/16 7/8 1 5/16 1 7/16 1 1/16 1 3/8 1 7/16 1 3/16 1 3/4
3/4 x 3/8 1.06 0.69 2 7/16 5/8 - 1 7/16 7/8 1 3/16
3/4 x 1/4 1.06 0.555 2 3/8 11/16 - 2 3/8 7/8 -
1 x 3/4 1.325 1.065 1 9/16 15/16 1 1/2 1 9/16 1 1/8 1 11/16 1 9/16 1 1/4 2
1 x 1/2 1.325 0.855 2 1/2 5/8 - 1 7/16 1 1/8 1 3/8 1 7/16 1 1/8 1 3/4
1 x 3/8 1.325 0.69 2 7/16 11/16 - 2 1/2 7/8 -
1 x 1/4 1.325 0.555 2 3/8 3/4 - 2 3/8 15/16 -
1 1/4 x 1 1.67 1.33 1 9/16 1 1 7/8 1 9/16 1 3/16 2 1 9/16 1 3/8 2 3/8
1 1/4 x 3/4 1.67 1.065 2 9/16 11/16 - 2 9/16 13/16 - 1 9/16 1 3/16 2
1 1/4 x 1/2 1.67 0.855 2 1/2 3/4 - 2 1/2 7/8 - 2 1/2 7/8 -
1 1/4 x 3/8 1.67 0.69 2 7/16 13/16 - 2 7/16 15/16 -
1 1/4 x 1/4 1.67 0.555 2 3/8 7/8 - 2 3/8 1 -
1 1/2 x 1 1/4 1.91 1.675 1 9/16 1 1/8 2 1/4 1 9/16 1 3/8 2 3/8 1 9/16 1 5/8 2 3/4
1 1/2 x 1 1.91 1.33 2 5/8 11/16 - 1 9/16 1 3/16 2 1 9/16 1 3/8 2 3/8
1 1/2 x 3/4 1.91 1.065 2 9/16 3/4 - 2 9/16 1 - 2 9/16 1 -
1 1/2 x 1/2 1.91 0.855 2 1/2 13/16 - 2 1/2 1 1/16 - 2 9/16 1 -
1 1/2 x 3/8 1.91 0.69 2 7/16 7/8 - 2 7/16 1 1/8 -
2 x 1 1/2 2.385 1.915 1 9/16 1 1/4 2 1/2 1 9/16 1 7/8 2 11/16 1 9/16 2 1/16 3
2 x 1 1/4 2.385 1.675 2 11/16 13/16 - 2 7/8 15/16 - 1 9/16 2 2 3/4
2 x 1 2.385 1.33 2 5/8 7/8 - 2 13/16 1 - 2 13/16 1 -
2 x 3/4 2.385 1.065 2 9/16 15/16 - 2 3/4 1 1/16 - 2 3/4 1 1/16 -
2 x 1/2 2.385 0.855 2 1/2 1 - 2 11/16 1 1/8 - 2 11/16 1 1/8 -

ASTM B564 UNS N04400 Monel 400 Stainless Steel 90 Degree Elbow
