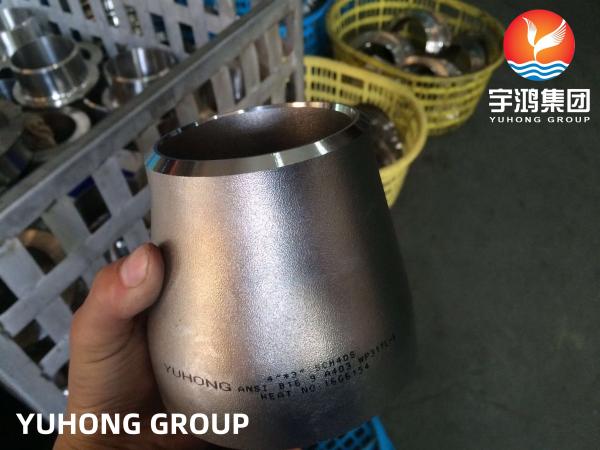

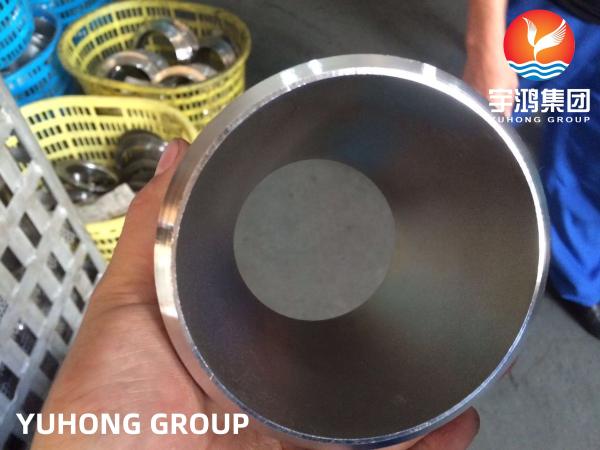

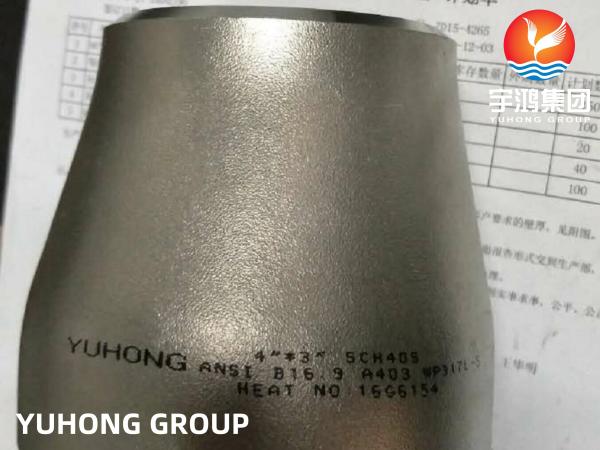

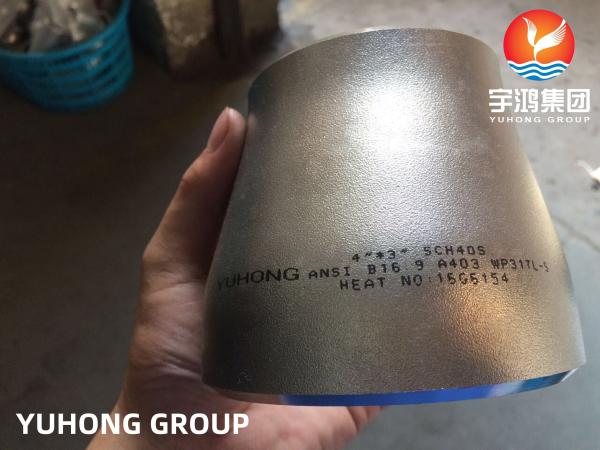

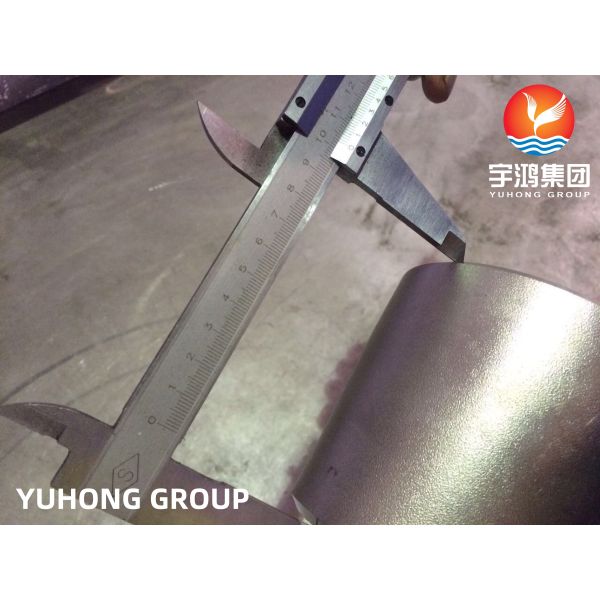

ASTM A403 WP317L-S Stainless Steel Reducer Butt Weld Pipe Fitting B16.9
ASTM A403 WP317L-S Stainless Steel Reducer Butt Weld Pipe Fitting B16.9
ASTM A403 WP317L-S Stainless Steel Reducer Butt Weld Pipe Fitting B16.9
ASTM A403 WP317L-S Stainless Steel Reducer Butt Weld Pipe Fitting B16.9
ASTM A403 WP317L-S Stainless Steel Reducer Butt Weld Pipe Fitting B16.9
ASTM A403 WP317L-S Stainless Steel Reducer Butt Weld Pipe Fitting B16.9
ASTM A403 WP317L-S Stainless Steel Reducer Butt Weld Pipe Fitting B16.9
ASTM A403 WP317L-S Stainless Steel Reducer Butt Weld Pipe Fitting B16.9
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A403 WP317
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
CHINA
Payment Terms :
L/C, T/T
Supply Ability :
100 tons per month
Delivery Time :
Depends on quantity
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
MOQ :
1 PC
Price :
Negotiable
Product Name :
Stainless Steel Reducer
Specification :
ASME SA403 WP317L
Type :
Buttweld
Schedule :
SCH 5- SCH XXS
WP Grade :
Seamless
Surface Treatment :
Sand Rolling / Sand Blasting
High Light :
Stainless Steel Reducer, Stainless Steel BW Reducer, Steel Pipe B16.9 Reducer
Description

ASTM A403 WP317L-S Stainless Steel Reducer Butt weld Pipe Fitting B16.9

What is a stainless steel reducer?

A stainless steel reducer is a fitting used in piping systems to connect pipes of different sizes. It is designed to reduce the size of the pipe bore, allowing for the smooth flow of liquids or gases through the system. Stainless steel reducers are popular due to their durability, corrosion resistance, and suitability for various applications, especially in industries where hygiene and cleanliness are crucial, such as food processing, pharmaceuticals, and chemical processing.

What is grade SS317L/UNS S31703?

Grade SS317L/UNS S31703 refers to a specific type of stainless steel alloy. SS317L is a low-carbon version of SS317, which is an austenitic stainless steel that contains higher levels of chromium, nickel, and molybdenum compared to standard austenitic stainless steels. This makes SS317L more resistant to corrosion, especially in harsh environments such as chemical processing, petrochemical, and pharmaceutical industries.

UNS S31703 is the Unified Numbering System designation for this specific grade of stainless steel. It indicates a material that has a chemical composition meeting the UNS standard for stainless steel grade 317L. This grade is known for its excellent corrosion resistance, high strength, and good formability, making it suitable for a wide range of applications where resistance to corrosion and high temperatures is required.

SS317L Mechanical Properties

Density Melting Point Tensile Strength Yield Strength Elongation
8.0 g/cm3 1040 °C (1900 °F) ksi – 75, MPa – 515 ksi – 30 , MPa – 205 35 %

SS317L Chemical Composition

Grade C Mn Si P S Cr Mo Ni
SS 317L 0.030 max 2.00 max 1.00 max 0.045 max 0.030 max 18.00 - 20.00 max 3.00 – 4.00 max 11.00 – 15.00 max

SS317L Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS EN
SS317L 1.4438 S31703 SUS 317L X2CRNIMO18-15-4

SS317L Chemical Composition

Grade C Mn Si P S Cr Mo Ni
SS 317L 0.030 max 2.00 max 1.00 max 0.045 max 0.030 max 18.00 - 20.00 max 3.00 – 4.00 max 11.00 – 15.00 max

WP317L Fittings Application:

Chemical Processing

Food and Beverage

Pharmaceuticals

Petrochemical

Water Treatment

Marine Applications

ASTM A403 WP317L-S Stainless Steel Reducer Butt Weld Pipe Fitting B16.9
