ASTM A182 F304 ASME B16.11 Stainless Steel Elbow Fitting
ASTM A182 F304 ASME B16.11 Stainless Steel Elbow Fitting
ASTM A182 F304 ASME B16.11 Stainless Steel Elbow Fitting
ASTM A182 F304 ASME B16.11 Stainless Steel Elbow Fitting
ASTM A182 F304 ASME B16.11 Stainless Steel Elbow Fitting
ASTM A182 F304 ASME B16.11 Stainless Steel Elbow Fitting
ASTM A182 F304 ASME B16.11 Stainless Steel Elbow Fitting
ASTM A182 F304 ASME B16.11 Stainless Steel Elbow Fitting
ASTM A182 F304 ASME B16.11 Stainless Steel Elbow Fitting
ASTM A182 F304 ASME B16.11 Stainless Steel Elbow Fitting
ASTM A182 F304 ASME B16.11 Stainless Steel Elbow Fitting
ASTM A182 F304 ASME B16.11 Stainless Steel Elbow Fitting
ASTM A182 F304 ASME B16.11 Stainless Steel Elbow Fitting
ASTM A182 F304 ASME B16.11 Stainless Steel Elbow Fitting
Specifications
Brand Name :
YUHONG
Model Number :
ASTM, JIS, DIN, EN
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
CHINA
MOQ :
1PCS
Price :
USD
Payment Terms :
L/C, T/T
Supply Ability :
1500 TONS PER MONTH
Delivery Time :
7 DYAS
Packaging Details :
PLY-WOODEN CASE PACKING/IRON CASE PACKING
STANDARD :
ASTM A182
Material :
Stainless Steel
OD :
1/8'' to 4''
PRESSURE :
1500# to 9000#
Grade :
F304
Description

ASTM A182 F304L FORGED FITTINGS SW 3000#/6000#/9000# ASME B16.11 STAINLESS

ASTM A182 F304 is a standard specification for forged or rolled stainless steel pipe fittings that are made from austenitic stainless steel alloy 304. These fittings are commonly used in high-pressure and high-temperature applications in industries such as oil and gas, chemical processing, and power generation.

Some common types of ASTM A182 F304 fittings include elbows, tees, reducers, couplings, and caps. These fittings are designed to provide a leak-proof and reliable connection between pipes or tubing in a piping system.

ASTM A182 F304 fittings are known for their corrosion resistance, high strength, and durability. They are suitable for use in a wide range of environments and applications where resistance to corrosion is essential.

ASTM A182 F304 fittings are a popular choice for many industries due to their high-quality construction and performance characteristics.

STEEL ELBOW REDUCER TEE

Square Socket Reducer Inserts , Stainlesss, Carbon Steel , Duplex Steel , Nickel Alloy Steel .

Products ASTM A182 F304 ASME B16.11 Stainless Steel Elbow Fitting Socket Reducer Inserts

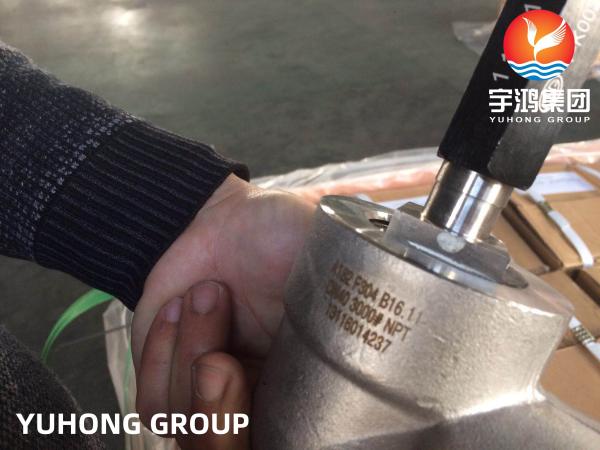

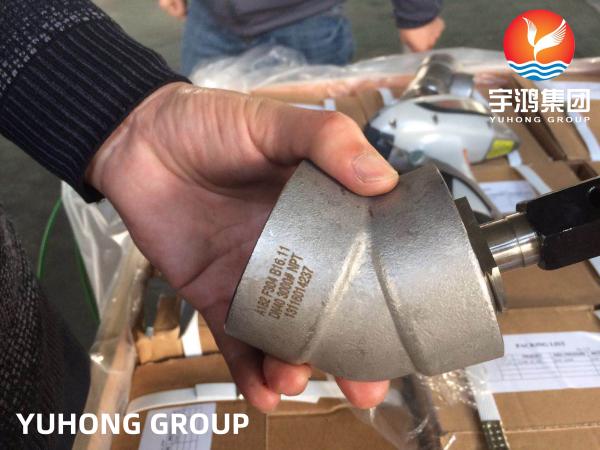

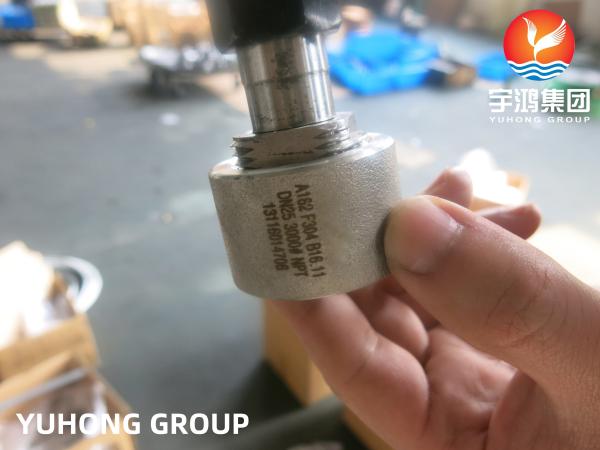

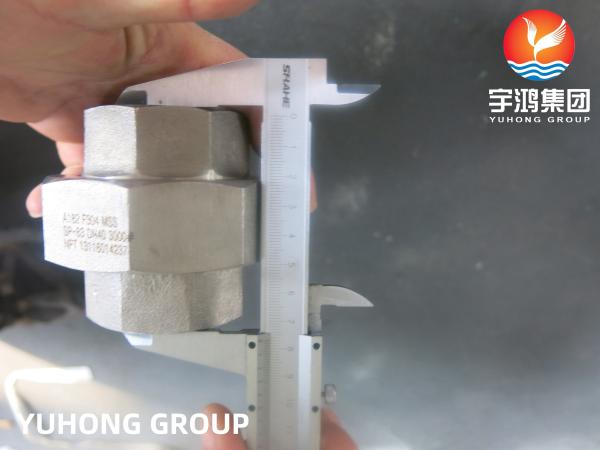

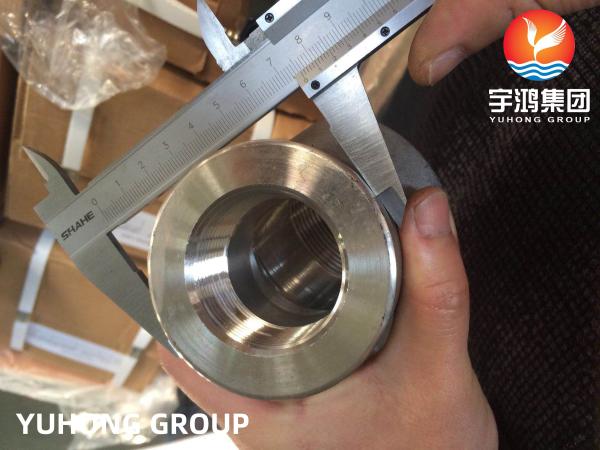

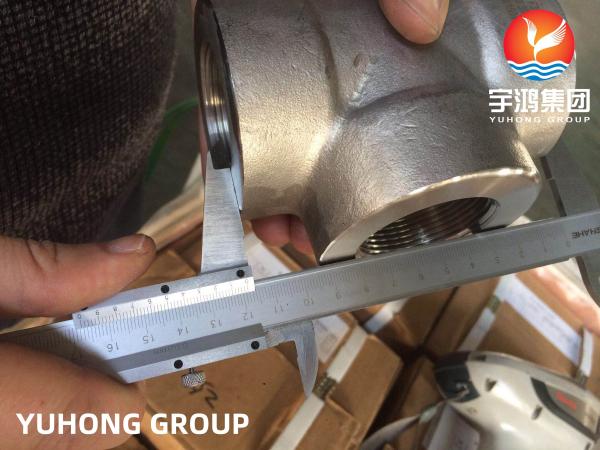

Product Pictures and Drawings
ASTM A182 F304 ASME B16.11 Stainless Steel Elbow Fitting ASTM A182 F304 ASME B16.11 Stainless Steel Elbow Fitting ASTM A182 F304 ASME B16.11 Stainless Steel Elbow Fitting ASTM A182 F304 ASME B16.11 Stainless Steel Elbow Fitting
Type1
Type2
Dimensional Data
Socket weld reducer Inserts availbale in class 3000, 6000 and 9000
Class 3000 Class 6000 Class 9000
Nominal Pipe Size C D Fitting
Type		 A B E Fitting
Type		 A B E Fitting
Type		 A B E
3/8 x 1/4 0.675 0.555 1 7/16 3/4 15/16 1 7/16 7/8 1
1/2 x 3/8 0.850 0.690 1 7/16 13/16 1 1/16 1 7/16 15/16 1 3/16
1/2 x 1/4 0.850 0.555 1 7/16 13/16 15/16 1 7/16 7/8 1
3/4 x 1/2 1.060 0.855 1 7/16 7/8 1 5/16 1 7/16 1 1/16 1 3/8 1 7/16 1 3/16 1 3/4
3/4 x 3/8 1.060 0.690 2 7/16 5/8 - 1 7/16 7/8 1 3/16
3/4 x 1/4 1.060 0.555 2 3/8 11/16 - 2 3/8 7/8 -
1 x 3/4 1.325 1.065 1 9/16 15/16 1 1/2 1 9/16 1 1/8 1 11/16 1 9/16 1 1/4 2
1 x 1/2 1.325 0.855 2 1/2 5/8 - 1 7/16 1 1/8 1 3/8 1 7/16 1 1/8 1 3/4
1 x 3/8 1.325 0.690 2 7/16 11/16 - 2 1/2 7/8 -
1 x 1/4 1.325 0.555 2 3/8 3/4 - 2 3/8 15/16 -
1 1/4 x 1 1.670 1.330 1 9/16 1 1 7/8 1 9/16 1 3/16 2 1 9/16 1 3/8 2 3/8
1 1/4 x 3/4 1.670 1.065 2 9/16 11/16 - 2 9/16 13/16 - 1 9/16 1 3/16 2
1 1/4 x 1/2 1.670 0.855 2 1/2 3/4 - 2 1/2 7/8 - 2 1/2 7/8 -
1 1/4 x 3/8 1.670 0.690 2 7/16 13/16 - 2 7/16 15/16 -
1 1/4 x 1/4 1.670 0.555 2 3/8 7/8 - 2 3/8 1 -
1 1/2 x 1 1/4 1.910 1.675 1 9/16 1 1/8 2 1/4 1 9/16 1 3/8 2 3/8 1 9/16 1 5/8 2 3/4
1 1/2 x 1 1.910 1.330 2 5/8 11/16 - 1 9/16 1 3/16 2 1 9/16 1 3/8 2 3/8
1 1/2 x 3/4 1.910 1.065 2 9/16 3/4 - 2 9/16 1 - 2 9/16 1 -
1 1/2 x 1/2 1.910 0.855 2 1/2 13/16 - 2 1/2 1 1/16 - 2 9/16 1 -
1 1/2 x 3/8 1.910 0.690 2 7/16 7/8 - 2 7/16 1 1/8 -
2 x 1 1/2 2.385 1.915 1 9/16 1 1/4 2 1/2 1 9/16 1 7/8 2 11/16 1 9/16 2 1/16 3
2 x 1 1/4 2.385 1.675 2 11/16 13/16 - 2 7/8 15/16 - 1 9/16 2 2 3/4
2 x 1 2.385 1.330 2 5/8 7/8 - 2 13/16 1 - 2 13/16 1 -
2 x 3/4 2.385 1.065 2 9/16 15/16 - 2 3/4 1 1/16 - 2 3/4 1 1/16 -
2 x 1/2 2.385 0.855 2 1/2 1 - 2 11/16 1 1/8 - 2 11/16 1 1/8 -

Equivalent
Trade Name
Grade
UNS #
Flanges
304
F304
S30400
A182 / SA182
Chemical Composition
Symbol
C
Mn
P
S
Si
Ni
Cr
Mo
F304
0.08
2
0.045
0.03
1
8.0-11.0
18.0-20.0
_
Mechanical Properties
Material Symbol
Tensile Strength min, MPa
Yield point min, Mpa
Elongation min, %
Reduction of area min, %
ASTM A182 F304
515
205
30
50

ASTM A182 F304 ASME B16.11 Stainless Steel Elbow Fitting

ASTM A182 F304 ASME B16.11 Stainless Steel Elbow Fitting
