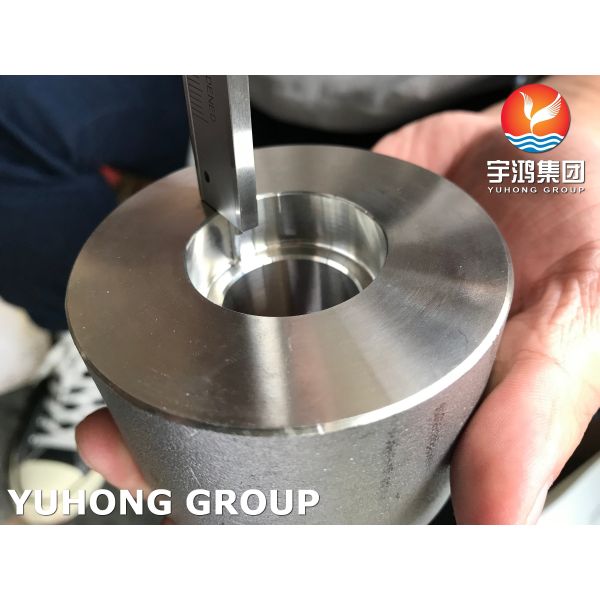

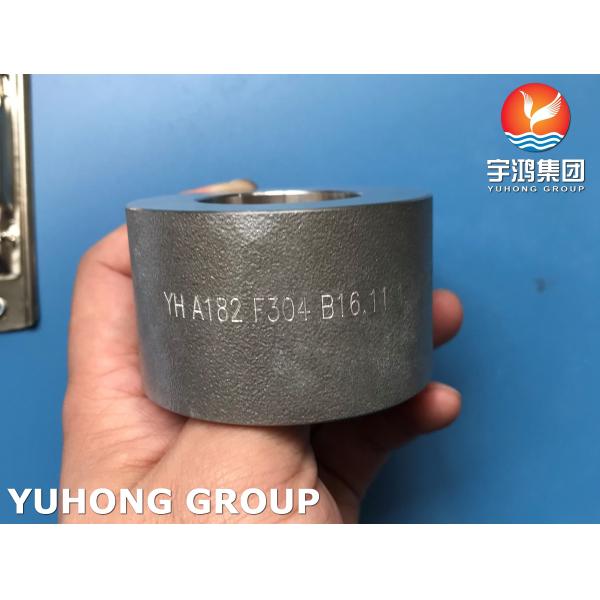

ASTM A182 F304 F304L Stainless Steel Socket Weld Full Coupling High Pressure Fittings B16.11
ASTM A182 F304 F304L Stainless Steel Socket Weld Full Coupling High Pressure Fittings B16.11
ASTM A182 F304 F304L Stainless Steel Socket Weld Full Coupling High Pressure Fittings B16.11
ASTM A182 F304 F304L Stainless Steel Socket Weld Full Coupling High Pressure Fittings B16.11
ASTM A182 F304 F304L Stainless Steel Socket Weld Full Coupling High Pressure Fittings B16.11
ASTM A182 F304 F304L Stainless Steel Socket Weld Full Coupling High Pressure Fittings B16.11
ASTM A182 F304 F304L Stainless Steel Socket Weld Full Coupling High Pressure Fittings B16.11
ASTM A182 F304 F304L Stainless Steel Socket Weld Full Coupling High Pressure Fittings B16.11
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A182 F304
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000Tons/Month
Delivery Time :
7DAYS
Packaging Details :
Ply-wooden Case / Pallet
Product Name :
Stainless Steel Coupling
Standard :
ASTM A182, ASME SA182
Material Grade :
F304, F304L
Size :
Customized Size, 1/8"-4"
Pressure Rating :
2000LBS, 3000LBS, 6000LBS, 9000LBS
Type :
Socket Weld Coupling, Threaded Coupling, Half Coupling, Full Coupling
Surface Treatment :
Galvanized, Polishing, Sand Blasting
Applications :
Decoration,Construction,Boiler,Oil And Gas,Electric
Description

ASTM A182 F304, F304L Stainless Steel Socket Weld Full Coupling High Pressure Fittings B16.11

Grade F304L(Austenitic Stainless Steel)

UNS code: S30403

Chemical composition, % :

C: ≤0.030

Mn: ≤2.00

P: ≤0.045

S: ≤0.030

Si: ≤1.00

Ni: 8.0-13.0

Cr: 18.0-20.0

N: ≤0.10

Heat treatment:

Solution treatment plus quenching: ≥1040 °C

Cooling medium: liquid

Quench and cool to below 260℃

Tensile properties:

Tensile strength: 485MPa

Yield strength: 170MPa

Elongation 2 in. or 50 mm (or 4D), %: 30

Section shrinkage, %: 50

ASTM A182 F304 F304L Stainless Steel Socket Weld Full Coupling High Pressure Fittings B16.11

Equivalent Grades:

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
F304 1.4301 S30400 SUS 304 304S31 08Х18Н10 Z7CN18‐09 X5CrNi18-10
F304L 1.4306 / 1.4307 S30403 SUS 304L 3304S11 03Х18Н11 Z3CN18‐10 X2CrNi18-9 / X2CrNi19-11

Chemical Composition:

Steel Grade C(Max) Si(Max) Mn(Max) P(Max) S(Max) Ni Cr N
F304 0.08 0.75 2.00 0.045 0.03 8.0–10.5 18.0–20.0 0.1
F304L 0.03 0.75 2.00 0.045 0.03 8.0–12.0 18.0–20.0 0.1

Mechanical Properties:

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
F304 515 205 40 92 201
F304L 485 170 40 92 201

Manufacturing Standards:

ASME ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
DIN DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN EN10253-1, EN10253-2

ASTM A182 F304 F304L Stainless Steel Socket Weld Full Coupling High Pressure Fittings B16.11
