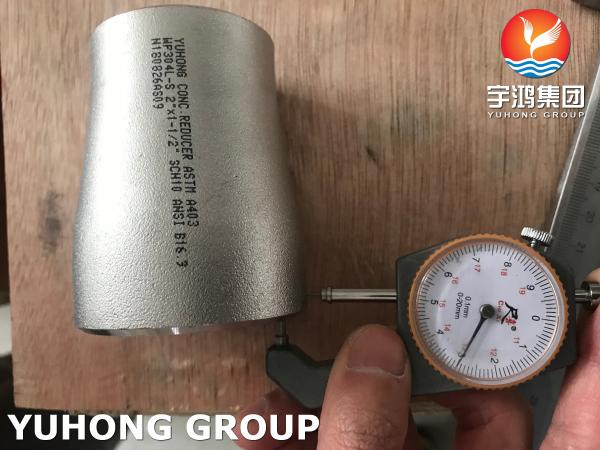

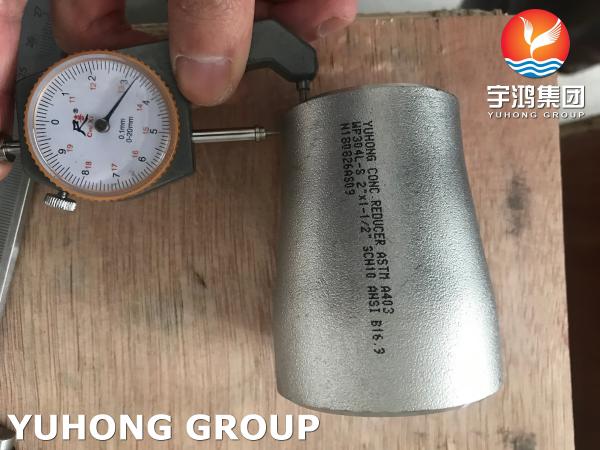

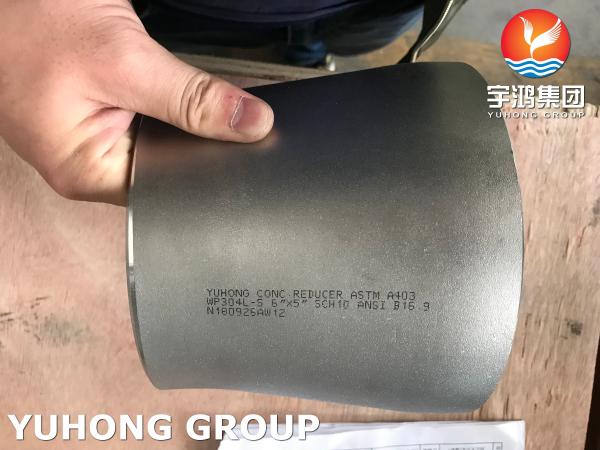

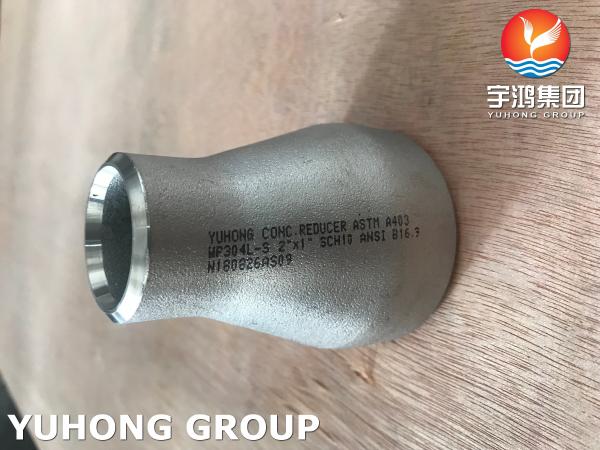

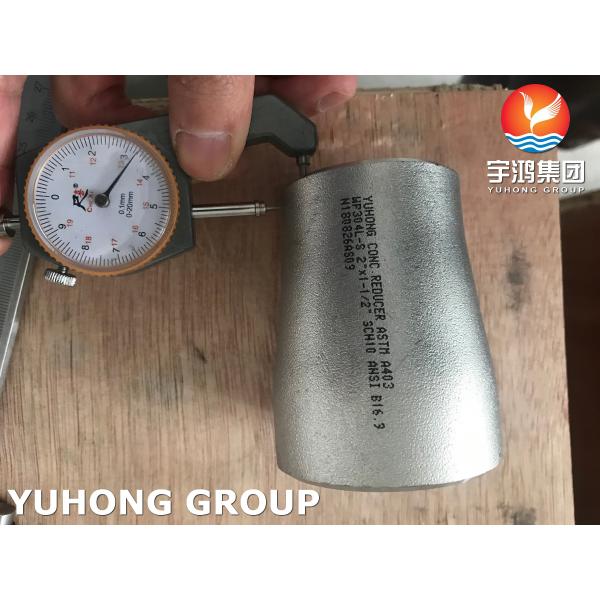

SS Pipe Fitting ASTM A403 WP304L S30403 Concentric Reducer B16.9
SS Pipe Fitting ASTM A403 WP304L S30403 Concentric Reducer B16.9
SS Pipe Fitting ASTM A403 WP304L S30403 Concentric Reducer B16.9
SS Pipe Fitting ASTM A403 WP304L S30403 Concentric Reducer B16.9
SS Pipe Fitting ASTM A403 WP304L S30403 Concentric Reducer B16.9
SS Pipe Fitting ASTM A403 WP304L S30403 Concentric Reducer B16.9
SS Pipe Fitting ASTM A403 WP304L S30403 Concentric Reducer B16.9
SS Pipe Fitting ASTM A403 WP304L S30403 Concentric Reducer B16.9
SS Pipe Fitting ASTM A403 WP304L S30403 Concentric Reducer B16.9
SS Pipe Fitting ASTM A403 WP304L S30403 Concentric Reducer B16.9
SS Pipe Fitting ASTM A403 WP304L S30403 Concentric Reducer B16.9
SS Pipe Fitting ASTM A403 WP304L S30403 Concentric Reducer B16.9
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A403 WP304L
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
China
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000 tons per month
Delivery Time :
Depends on quantity
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case
Specification :
ASTM A403
Grade :
WP304L
Non Destructive Test :
Eddy Current Test -ASTM E426, Hystostatic Test-ASTM A999, Ultrsonic Test -ASTM E213
Type :
Buttweld
Description

SS Pipe Fitting ASTM A403 WP304L S30403 Concentric Reducer B16.9

ASTM A403 WP304L Fittings come under the standard ASME B16.9 and diameters ranging from ½ inches to 48 inches. The material has 18% chromium and 8% nickel in the composition and has good corrosion resistance and strength. The ASTM A403 WP304L Fittings have high operating temperature range up to 870 degrees Celsius. So they can be used in high heat applications. The low carbon content in the material makes it better for welding applications.

Buttweld Concentric Reducer Specifications

Outside Diameter (OD) Seamless Pipe Concentric Reducer ( 1/2″～24″), ERW / Welded / Fabricated Pipe Concentric Reducer (1/2″～48″)
Dimensions ASME/ANSI B16.9, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313, ASME B16.28
Wall Thickness SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS / 3mm – 40mm
Bending Radius R=1D – 10D, 15D, 20D
Product’s Angle Concentric Reducer
Important Grades ASTM A403 WP 304 / 304L / 304H / 316 / 316L / 317 / 317L / 321 / 310 / 347 / 904L
Production Materials Stainless Steel, Alloy Steel, Carbon Steel, Duplex, Nickel Alloys, Cupro Nickel, Low Temperature Steel
SS Melting Points 1400-1450°C (WP304, WP304L), 1390-1440 °C (WP316L), 1370 – 1400 °C (WP316)

Chemical Composition and Mechanical Property for 304L

Steel Grade Chemical Composition Mechanical Performance
C(Max) Si(Max) Mn(Max) P(Max) S(Max) Ni Cr N Mo Tensile Strength
(Min)		 Yield Strength
(Min)
Mpa Mpa
304L 0.03 0.75 2.00 0.045 0.03 8.0–12.0 18.0–20.0 0.1 / 485 170

Dimensional Tolerances of Concentric and Eccentric Reducers ASME B16.9

Nominal Pipe Size 1/2 to 2.1/2 3 to 3.1/2 4 5 to 8
Outside Diameter
at Bevel (D)		 + 1.6
– 0.8		 1.6 1.6 + 2.4
– 1.6
Inside Diameter at End 0.8 1.6 1.6 1.6
Overall Length (H) 2 2 2 2
Nominal Pipe Size 10 to 18 20 to 24 26 to 30 32 to 48
Outside Diameter
at Bevel (D)		 + 4
– 3.2		 + 6.4
– 4.8		 + 6.4
– 4.8		 + 6.4
– 4.8
Inside Diameter at End 3.2 4.8 + 6.4
– 4.8		 + 6.4
– 4.8
Overall Length (H) 2 2 5 5
Wall Thickness (t) Not less than 87.5% of Nominal Wall Thickness

Applications:

-Food processing equipment

-Equipment and appliances

-Architectural railings

-Pharmaceutical and chemical process equipment

-Heat exchangers

-Threaded fasteners

-Springs

-Industrial fabrications

SS Pipe Fitting ASTM A403 WP304L S30403 Concentric Reducer B16.9
