ASTM A182 F347 WN RF Stainless Steel Flanges , Bridas
ASTM A182 F347 WN RF Stainless Steel Flanges , Bridas
ASTM A182 F347 WN RF Stainless Steel Flanges , Bridas
ASTM A182 F347 WN RF Stainless Steel Flanges , Bridas
ASTM A182 F347 WN RF Stainless Steel Flanges , Bridas
ASTM A182 F347 WN RF Stainless Steel Flanges , Bridas
ASTM A182 F347 WN RF Stainless Steel Flanges , Bridas
ASTM A182 F347 WN RF Stainless Steel Flanges , Bridas
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A182
Certification :
ABS, GL, DNV, NK, PED, AD2000,CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
5PC
Price :
1-150000 USD
Payment Terms :
T/T, L/C
Supply Ability :
2000 pcs/month
Delivery Time :
10-45 days
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Product :
Welding Neck Flanges
Material :
Stainless Steel
Standard :
ASTM A182
Grade :
F347
Type of Face :
RF
Packing :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Description

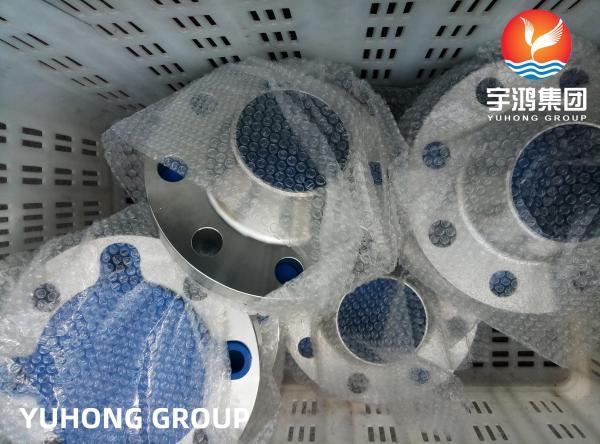

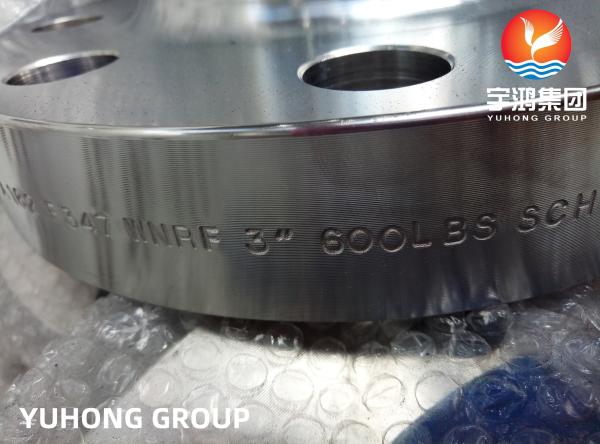

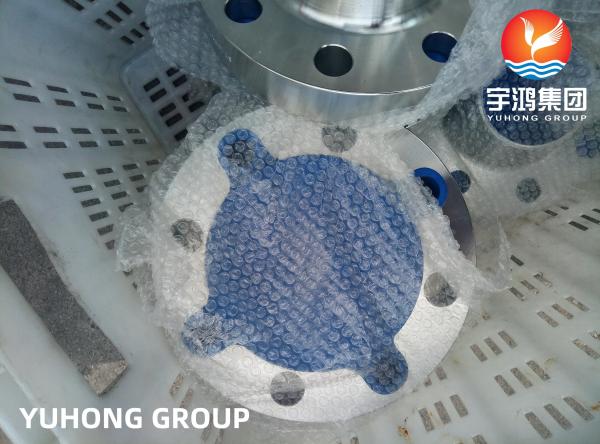

ASTM A182 F347 WN RF Stainless Steel Flanges , Bridas


YUHONG Group can offer ASTM A182 F347 welding neck RF stainless steel flanges / bridas, and our products sell more than 70 countries up to now.

ASTM A182 --- This specification covers forged low alloy and stainless steel piping components for use in pressure systems. Included are flanges, fittings, valves, and similar parts to specified dimensions or to dimensional standards.

F347 is a high temperature stainless steel with good corrosion resistance and high temperature strength. It can adjust its wear resistance and corrosion resistance by adding alloy elements to meet the needs of specific application scenarios. It has many excellent properties, such as corrosion resistance, high temperature resistance, oxidation resistance, tensile resistance, easy processing, etc., so it is widely used in many fields.



Specification of ASTM A182 F347

Type Slip-On;Welding-Neck;Blind;Thread;Plate;Socket-Weld,etc
Size Required by clients
Flange Face Type Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Equal Standard UNS S34700;EN 1.4550;JIS SUS347
Flange Value Added Service Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment
Coating Flanges Face Zinc Plated, Yellow Transparent, Anti-rust Paint, Cold and Hot Dip Galvanized, Oil Black Paint
Flange Packaging Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector


Tests Required

Tension Tests/ Hardness Tests/ Corrosion Testing for Austenitic Grades/ Nondestructive Tests,etc

Chemical Composition of ASTM A182 F347

ELEMENT COMPOSITION (%)
Carbon 0.08
Manganese 2.00
Phosphorus 0.045
Sulfur 0.030
Silicon 1.00
Nickel 9.0-13.0
Chromium 17.0-20.0


Tensile and Hardness Requirements

Tensile Strength MIN Yield Strength (0.2%Offset) MIN Elongation MIN Reduction of Area min
Ksi – 75 , MPa – 515 Ksi – 30 , MPa – 205 30 % 50 %





Heat Treating Requirements

Grade Heat Treat Type Temperature min Cooling Media Quenching Cool Below
F347 Solution Treat and Quench 1040℃ Liquid 260℃



Applications


Fabrication Industry
Natural Gas Industry
Pharmaceutical Industry
Pulp and Paper Industry
Chemical Industry
Oil and Gas Well Piping
Nuclear Fuel Reprocessing
Water Pipeline Industry
Condenser, Heat Exchangers and Piping Systems

ASTM A182 F347 WN RF Stainless Steel Flanges , Bridas
