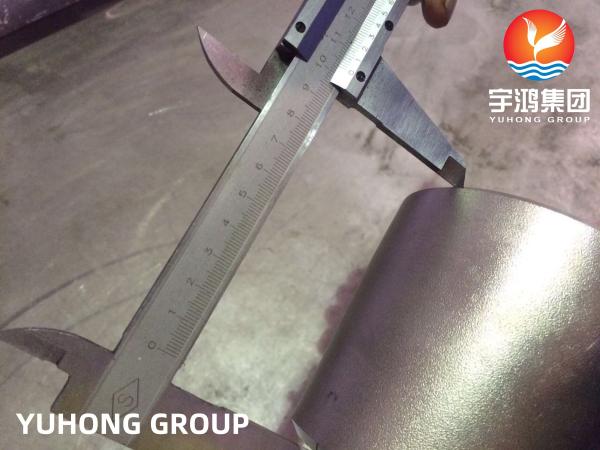

Butt Weld Pipe Fittings ASTM A403 WP317-S Stainless Steel Concentric Reducer ANSI B16.9
Butt Weld Pipe Fittings ASTM A403 WP317-S Stainless Steel Concentric Reducer ANSI B16.9
Butt Weld Pipe Fittings ASTM A403 WP317-S Stainless Steel Concentric Reducer ANSI B16.9
Butt Weld Pipe Fittings ASTM A403 WP317-S Stainless Steel Concentric Reducer ANSI B16.9
Butt Weld Pipe Fittings ASTM A403 WP317-S Stainless Steel Concentric Reducer ANSI B16.9
Butt Weld Pipe Fittings ASTM A403 WP317-S Stainless Steel Concentric Reducer ANSI B16.9
Butt Weld Pipe Fittings ASTM A403 WP317-S Stainless Steel Concentric Reducer ANSI B16.9
Butt Weld Pipe Fittings ASTM A403 WP317-S Stainless Steel Concentric Reducer ANSI B16.9
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A403 WP317-S
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
According To Customers' Request
Delivery Time :
5 - 30 Work Days
Packaging Details :
Ply-wooden Case / Pallet
Syandard :
ASTM A403, ASME SA403
Material Grade :
WP317-S
Size :
1/2''-48''(DN15-DN1200)
Type :
Elbow, concentric Reducer, Eccentric Reducer, Reducing Tee, Equal Tee, Cap, Cross
Technics :
Butt Weld
Applications :
Construction,gas and oil pipes,air,Steam,Petroleum gas water
Description

Butt Weld Pipe Fittings ASTM A403 WP317-S Stainless Steel Concentric Reducer ANSI B16.9

Comprised of higher contents of chromium, nickel and molybdenum, fittings made from stainless steel 317 tend to be more corrosion resistant as compared to SS316. This is also due to the high percentage of iron in the chemistry of Stainless Steel 317 Pipe Fittings. The combination of iron with the alloying of chromium-nickel-molybdenum content yields a strong and hard alloy. We manufacture stainless steel concentric and eccentric reducers for more than 30 years which have high quality and we also supply other buttweld stainless steel fittings, like 45/90/180 degree elbows, reducing tees, equal tees, end caps and so on.

Equivalent Grades:

STANDARD WERKSTOFF NR. UNS JIS EN
SS 317 1.4449 S31700 SUS 317 –
SS 317L 1.4438 S31703 SUS 317L X2CrNiMo18-15-4

Specifications:

Specifications ASTM A403/ ASME SA403
size Seamless Butt Weld Fittings: 1/2" - 10"
Welded Butt Weld Fittings: 1/2" - 48"
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS
Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Manufacturing process Push, Press, Forge, Cast, etc.
Specialized manufacturer Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend
Application & uses Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc.

Butt Weld Pipe Fittings ASTM A403 WP317-S Stainless Steel Concentric Reducer ANSI B16.9

Chemical Composition:

Grade Mn Si C P S Cr Mo Fe Ni
WP317 2 max 1 max 0.08 max 0.045 max 0.03 max 18 - 20 3 - 4 57.845 min 11 - 15
WP317L 2 max 1 max 0.035 max 0.045 max 0.03 max 18 - 20 3 - 4 57.89 min 11 - 15

Mechanical Properties:

Tensile Strength Melting Point Density Yield Strength (0.2%Offset) Elongation
Psi – 75000 , MPa – 515 1400 °C (2550 °F) 7.9 g/cm3 Psi – 30000 , MPa – 205 35 %

Applications:

Industrial Boilers

Power Plants

Nuclear Plants

Oil & Gas Industries

Refineries Industries

Butt Weld Pipe Fittings ASTM A403 WP317-S Stainless Steel Concentric Reducer ANSI B16.9
