ASTM B462 UNS N10276, Hastelloy C276 Nickel Alloy Weld Neck Raised Face Flanges B16.5
ASTM B462 UNS N10276, Hastelloy C276 Nickel Alloy Weld Neck Raised Face Flanges B16.5
ASTM B462 UNS N10276, Hastelloy C276 Nickel Alloy Weld Neck Raised Face Flanges B16.5
ASTM B462 UNS N10276, Hastelloy C276 Nickel Alloy Weld Neck Raised Face Flanges B16.5
ASTM B462 UNS N10276, Hastelloy C276 Nickel Alloy Weld Neck Raised Face Flanges B16.5
ASTM B462 UNS N10276, Hastelloy C276 Nickel Alloy Weld Neck Raised Face Flanges B16.5
ASTM B462 UNS N10276, Hastelloy C276 Nickel Alloy Weld Neck Raised Face Flanges B16.5
ASTM B462 UNS N10276, Hastelloy C276 Nickel Alloy Weld Neck Raised Face Flanges B16.5
Specifications
Brand Name :
YUHONG
Model Number :
UNS N10276 Hastelloy C276
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
According to Clients' Requirement
Delivery Time :
5 - 90 Work Days
Packaging Details :
Ply-wooden Case / Pallet
Standard :
ASTM B462, ASME SB462
Material Grade :
UNS N10276 Hastelloy C276
Size :
1/2"-48"
Pressure :
Class150/300/600/9001500/2500
Type :
Threaded flange,Slip on Flange,socket weld flange,weld neck flange,LAP Joint Flange
Surface treatment :
Heat treatment,Galvanized
Technics :
Froged
Application :
Petroleum,chemical,fittings and connection,beer
Description

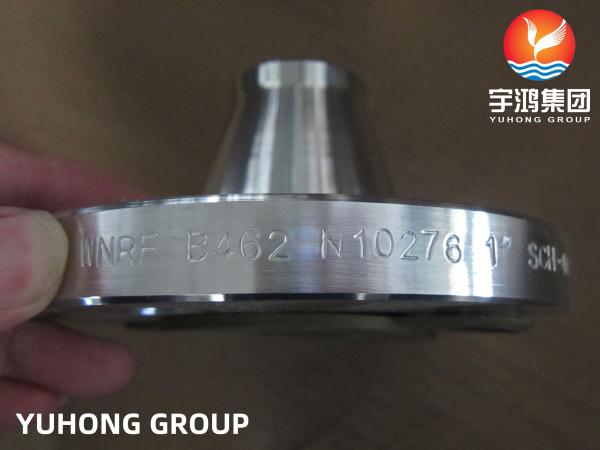

ASTM B462 UNS N10276 Hastelloy C276 Nickel Alloy Weld Neck Raised Face Flanges B16.5

Hastelloy C276 is a alloy composed of nickel, chromium, and molybdenum. This alloy also contains a small amount of tungsten, which makes it have high corrosion and oxidation resistance under harsh environments. ASTM B462 UNS N10276(Hastelloy C276) Weld Neck Raised Face Flanges can stand high pressure and temperature conditions because of their excellent toughness and high tensile strength.

Features:

Excellent Flexibility

Tensile Strength

Corrosion Resistance

Hardenability

Workability

Equivalent Grades:

STANDARD WERKSTOFF NR. UNS GOST JIS OR EN
Hastelloy C276 2.4819 N10276 ХН65МВУ NW 0276 ЭП760 NiMo16Cr15W

ASTM B462 UNS N10276, Hastelloy C276 Nickel Alloy Weld Neck Raised Face Flanges B16.5

Specifications:

Specifications ASTM B462 / ASME SB462
Size Range 1/2” to 48”
Dimensions ANSI/ ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, Etc.
Pressure Class 150#, 300#, 600#, 900#, 1500#, 2500#, Etc.
Connect Type/ Face Type Raised Face (RF), Ring Type Joint (RTJ), Large Male-Female (LMF), Flat Face (FF), Small Male-Female (SMF), Lap-Joint Face (LJF), Etc.
Flange Type Weld Neck Ring Flanges (WNRF), Slip-On Ring Flanges (SORF), Blind Ring Flanges (BLRF), Socket Weld Ring Flanges (SWRF), Lap Joint Ring Flanges (LJRF), Ring Type Joint Flanges (RTJF), Large Diameter Flanges, Orifice Flanges

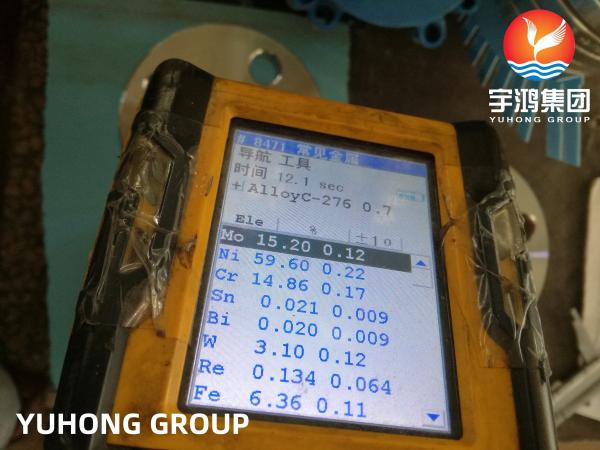

Chemical composition:

C Mn Si S Co Cr Fe Mo P Ni
0.01 max 1 max 0.08 max 0.03 max 2.5 max 14.5 – 16.5 4 – 7 15 – 17 0.04 max Bal.

Mechanical Properities:

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation, min
8890 kg/m3 1370 °C - 2500 °F Psi – 115000, MPa – 790 Psi – 52000, MPa – 355 40 %

Applications:

Chemical&Petrochemical

Pharmaceutical

Paper and Pulp Plant

Heat Exchangers

Nuclear Power

Oil And Gas Processing

Fired Heater

Water Treatment

ASTM B462 UNS N10276, Hastelloy C276 Nickel Alloy Weld Neck Raised Face Flanges B16.5
