Specifications
Brand Name :
YUHONG
Model Number :
NO8811
Certification :
API , ABS, DNV, GL , LR, NK.
Place of Origin :
CHINA
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
T/T, L/C AT SIGHT
Supply Ability :
10000 tons per month
Delivery Time :
Depends on quantity
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Product Name :
Stainless Steel BW Elbow
Specification :
ASTM B564
Dimension Standard :
ASME/ANSI B16.9
Material :
NO8811
O.D. :
1/2″ To 24″
W.T. :
Sch5-Sch160,XS,XXS,STD
Description

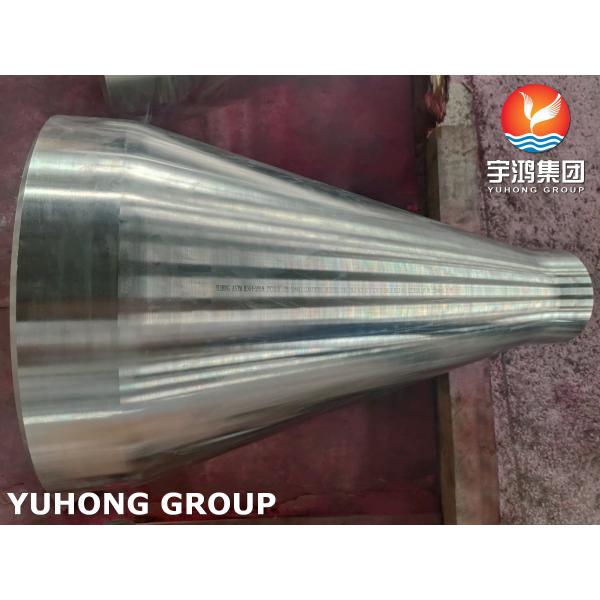

Concentric Reducer ASTM B564 NO8811 Stainless Steel Pipe Fitting B16.9 Heat Exchanger


What is Concentric reducer


The center of the circle in a straight line is called concentric head. Usually the molding process for the reduction of pressing, expansion of pressing or reduction and expansion of pressing, for some specifications of the reducer can also be used for stamping.



ASTM B564 NO8811 Concentirc Reducer Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
800 / 800H / 800HT 7.94 g/cm3 1385 °C (2525 °F) Psi – 75,000 , MPa – 520 Psi – 30,000 , MPa – 205 30 %
825 8.14 g/cm3 1400 °C (2550 °F) Psi – 80,000 , MPa – 550 Psi – 32,000 , MPa – 220 30 %


ASTM B564 NO8811​ Concentirc Reducer Chemical Composition

Grade C Mn Si S Cu Fe Ni Cr Al Ti
800 0.10 max 1.50 max 1.00 max 0.015 max 0.75 max 39.50 min 30.00 – 35.00 19.00 – 23.00 0.15 – 0.60 0.15 – 0.60
800H 0.05 – 0.10 1.50 max 1.00 max 0.015 max 0.75 max 39.50 min 30.00 – 35.00 19.00 – 23.00 0.15 – 0.60 0.15 – 0.60
800HT 0.06 – 0.10 1.50 max 1.00 max 0.015 max 0.75 max 39.50 min 30.00 – 35.00 19.00 – 23.00 0.15 – 0.60ᴬ 0.15 – 0.60ᴬ
825 0.05 max 1.00 max 0.5 max 0.03 max 1.50 – 3.00 22.00 min 38.00 – 46.00 19.50 – 23.50 0.02 max 0.06 – 1.20



Equivalent of ASTM B564 NO8811 Concentirc Reducer

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN OR
Incoloy 800 1.4876 N08800 NCF 800 NA 15 ЭИ670 Z8NC32-21 X10NiCrAlTi32-20 XH32T
Incoloy 800H 1.4958 / 1.4876 N08810 NCF 800H NA 15(H) ЭИ670 Z8NC33-21 X5NiCrAlTi31-20 XH32T
Incoloy 800HT 1.4859 / 1.4876 N08811 NCF 800HT NA 15(HT) ЭИ670 - X8NiCrAlTi32-21 XH32T
Incoloy 825 2.4858 N08825 NCF 825 NA 16 ЭП703 NFE30C20DUM NiCr21Mo XH38BT

ASTM B564 NO8811Application:

  • construction,
  • factories and mines,
  • chemical industry,
  • petroleum
