Specifications
Brand Name :
YUHONG
Model Number :
C70600
Certification :
API, PED
Place of Origin :
CHINA
MOQ :
500KGS
Price :
Negotiable
Payment Terms :
T/T, L/C at sight
Supply Ability :
1000 TONS PER MONTH
Delivery Time :
Depends on quantity
Packaging Details :
PLY-WOODEN CASE OR PALLET
Materials :
C70600
Schedule :
SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Specification :
B466
Dimension Standard :
ASME B16.9
O.D. :
1/2" NB TO 48" NB
W.T. :
Sch 10s to Sch XXS
Description

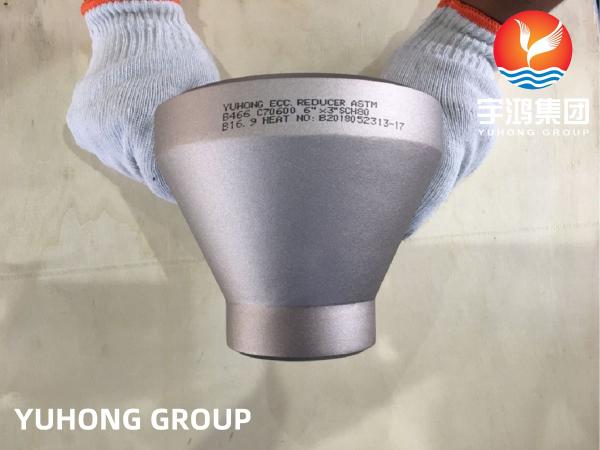

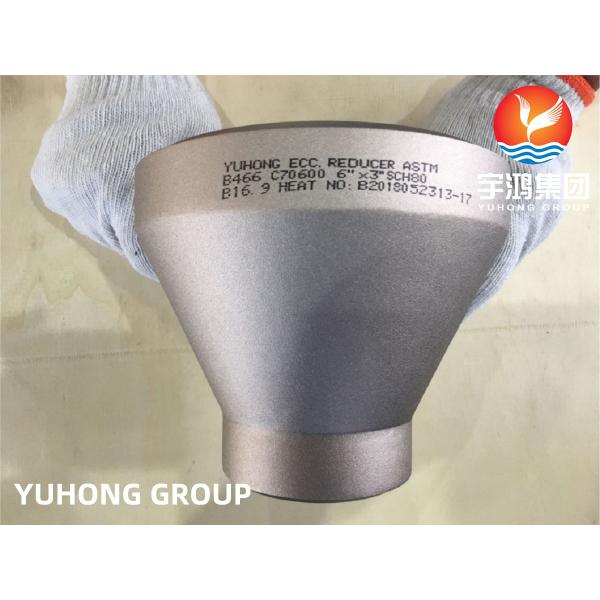

Copper Nickel Butt Weld Fitting Ecc Reducer ASTM B466 C70600 B16.9 Boiler Pump

Overwiew

B466 C70600 is equivalent to BFe10-1-1CuNi alloy pipe in GB5231-2001, B466 C70600 copper-nickel alloy has the advantages of resistance to seawater corrosion and marine life corrosion. More and more widely used in the shipbuilding industry, chemical industry, energy industry, ocean engineering and other fields, especially the rapid development of shipbuilding industry and LNG receiving station project started construction, pipeline with copper-nickel alloy seamless pipe usage increased greatly!

Chemical Composition of ASTM B466 C70600
UNS C70600 Fittings MIL-T-16420K
C70600		 DIN 86019
Cuni 90/10 (2.1972)		 EEMUA 144
UNS 7060X		 ASTM B466
C70600		 BS 2871
CN 102		 JIS H 3300
C7060
Ni% 9.0-11.0 9.0-11.0 10.0-11.0 9.0-11.0 10.0-11.0 9.0-11.0
Fe% 1.0-1.8 1.5-1.8 1.5-2.0 1.0-1.8 1.0-2.0 1.0-1.8
Mn% Max1.0 0.5-1.0 0.5-1.0 Max.1.0 0.5-1.0 0.2-1.0
C% Max.0.05 Max.0.05 Max.0.05 Max.0.05 Max.0.05
Pb% Max.0.02 Max.0.03 Max.0.01 Max.0.02 Max.0.01 Max.0.05
S% Max.0.02 Max.0.015 Max.0.02 Max.0.02 Max.0.05
P% Max.0.02 Max.0.02 Max.0.02 Max.0.02
Zn% Max.0.05 Max.0.15 Max.0.20 Max.0.50 Max.0.50
Zr% Max.0.03
Others Max.0.30 Max.0.30 Max.0.30
Cu% Min.86.5 Balance Balance Balance Balance Cu+Ni
+Fe+Mn
Min.99.5

Mechanical Properties of ASTM B466 C70600

Properties Metric Imperial
Tensile strength, ultimate 303-414 MPa 43900-60000 psi
Tensile strength, yield (depending on temper) 110-393 MPa 16000-57000 psi
Elongation at break (in 254 mm) 42.00% 42.00%
Machinability (UNS C36000 (free-cutting brass) = 100%) 20% 20%
Shear modulus 52.0 GPa 7540 ksi
Poisson's ratio 0.34 0.34
Elastic modulus 140 GPa 20300 ksi

Equivalent Grades of ASTM B466 C70600

STANDARD UNS WNR.
Copper Nickel 90/10 C70600 2.0872

Application

car headers

Pump

machinery parts

Boiler

food handling equipment
