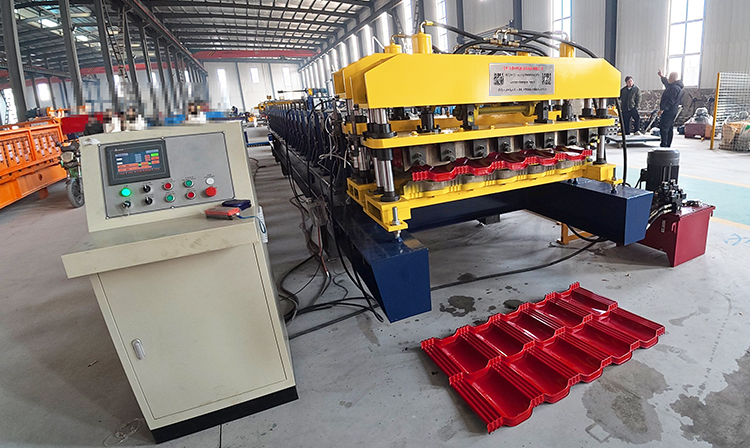

Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine
Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine
Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine
Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine
Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine
Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine
Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine
Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine
Specifications
Brand Name :
CHBEST
Model Number :
XY1120
Certification :
CE/BV/SGS
Place of Origin :
China Hebei
MOQ :
1 set
Supply Ability :
20 sets/month
Delivery Time :
20-30 days
Packaging Details :
plastic film for naked machine
Name :
Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine
Machine speed :
4-6m/min
Driven system :
Chain or gear box
Control system :
PLC
Cutting type :
Hydraulic
Blade :
Cr12
Usage :
Roof Building
Color :
Customized
Condition :
New
Description

Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine

Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine

Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine Machine components

No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Pressing Device 1 Set
4. Hydraulic Cutting Device 1 Set
5. PLC Control Box 1 Set
6. Hydraulic Pump 1 Set
7. Stacker 1 Set

Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine


Decoiler

Type Manual type(standard) Hydraulic type(option)
Width 1250mm 1500mm
Capacity Max 5tons From 5-15 tons
Inner diameter φ508-610mm φ508-610mm
Outer diameter φ1500mm φ1800mm

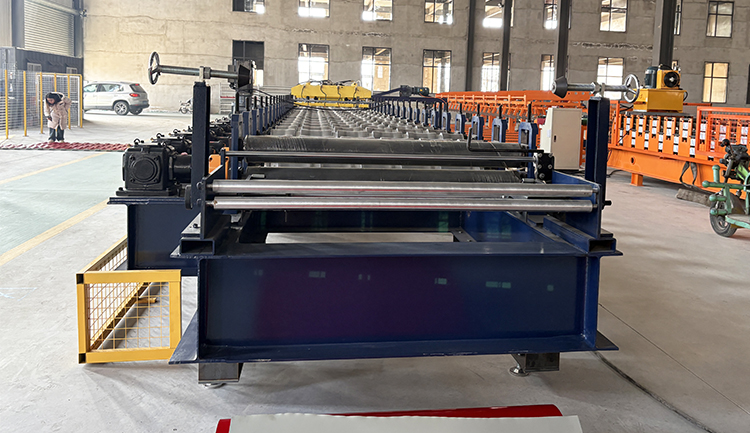

roll forming

(1) Material Thickness: 0.4-0.8mm
(2) Rollers: 22steps

(3) Material for Rollers: 45# steel polished and coated with chrome HRC55-60℃
(4) Material for shaft: high grade No.45 steel after treatment

(5) Diameter of shaft: 70mm

(6) Frame panel thickness: 20mm

(7) Bottom frame: 36# H-section steel
(8) Motor Power: 5.5 kw

(9) Driven type: 1.0＂Chain

Pressing and cutting device

Type

bearing sliding type
Blade material Cr12mov quenching and grinding
Frame processing

the whole bottom frame is grinding for high-precision
Blade processing wire-electrode cutting, but the upper balde can not be straight. this is technology
Working Hydraulic type

Stacker

Type

Manual

Auto(option)
Length 1.5m-2m 6m or 12m

PLC

Main item Parameter detail
PLC

Delta(standard) or according to your request
Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase

Hydraulic pump

Main Item Parameter detail
Motor

3kw China brand or according to your request
Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system

Cooling fan

Terms:

1. Delivery:in stock

2. Package:export standard package for container

3. Payment:TT (30% by TT in advance,70% by TT after you inspect machine we need)

4. Delivery date:within 30 working days after receiving deposit

5. Products Warranty:18months,and we will provide the technical support for whole life of the equipment.

Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine Re-sale Service :

1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine After-sale Service :
Any questions, contact us by WhatsApp or Telephone.

Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine Photos

Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine
