Specifications
Brand Name :
CHBEST
Model Number :
XY125
Certification :
CE/BV/SGS
Place of Origin :
China Hebei
MOQ :
1 set
Price :
$15200-$28500/set
Supply Ability :
10 sets/month
Delivery Time :
40-50 days
Packaging Details :
plastic film for naked machine
Product name :
Hydraulic Cutting K Gutter Making Roll Forming Machine
Machine dimention :
9mx1.4mx1.4m
Driven system :
Chain or gear box
Cutting type :
Hydraulic
Warranty :
2 years
Life time :
more than 10 years
Description
Galvanized Steel Profile PLC Control Hydraulic Cutting K Gutter Making Roll Forming Machine
Machine Overview

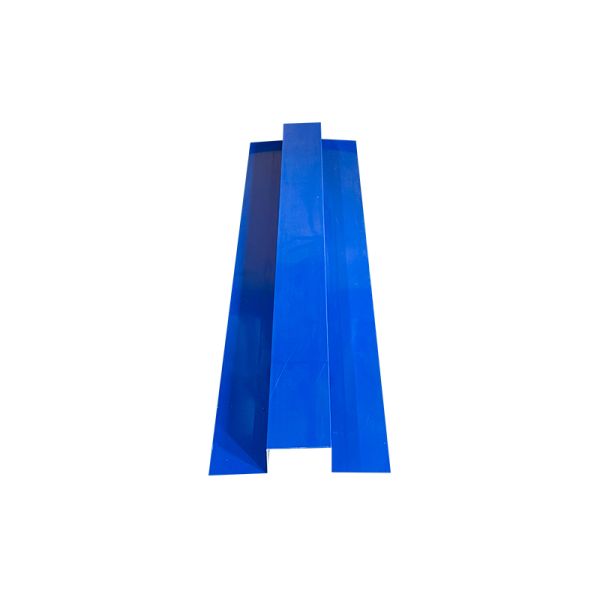

Advanced roll forming system for manufacturing K-style gutters from galvanized steel profiles with PLC-controlled hydraulic cutting precision.
Galvanized Steel Profile PLC Control Hydraulic Cutting K Gutter Making Roll Forming Machine
Complete Machine Configuration
  • De-coiler - 1 set
  • Forming machine - 1 set
  • Cutting device - 1 set
  • PLC control box - 1 set
  • Hydraulic pump station - 1 set
  • Production support table - 1 set
  • Bending machine - 1 set
De-coiler Specifications
Type Manual Type (Standard) Hydraulic Type (Option)
Width 500mm 600mm
Capacity Max 5 tons 5-15 tons
Inner Diameter φ450-550mm φ450-550mm
Outer Diameter φ1500mm φ1800mm

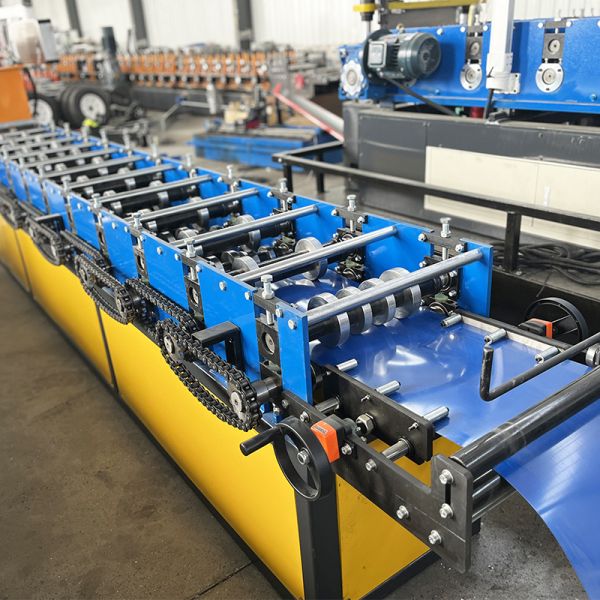

Roll Forming Technical Parameters
Processing Material: GI and PPGI
Material Thickness: 0.25-0.8mm
Machine Frame: 360#H steel with diagonal welding and precision leveling
Forming Stations: 16-22 stations (profile dependent)
Machine Rollers: No.45 forged steel with 0.05mm hard chrome plating
Machine Shaft: φ70-80mm No.45 steel
Machine Bearings: China Haerbin or SKF international (option)
Driving System: 1 inch chain or gear box (option)
Machine Power: 5.5kw-11kw (profile dependent)
Working Speed: 8-12m/min or 10-30m/min (option)

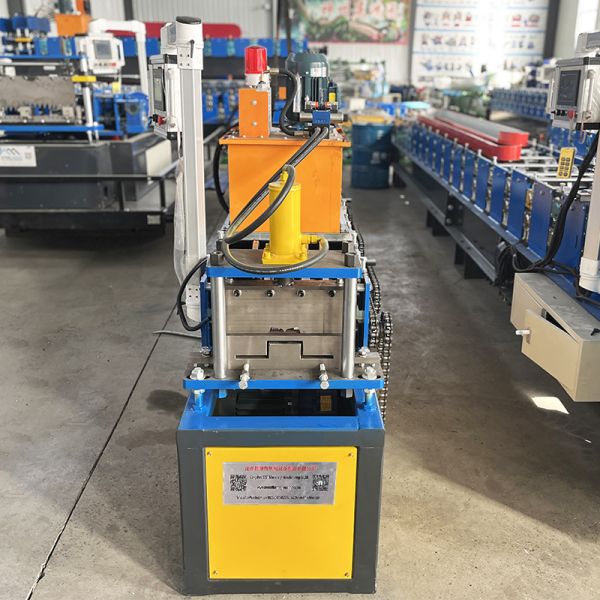

Hydraulic Cutting System
Galvanized Steel Profile PLC Control Hydraulic Cutting K Gutter Making Roll Forming Machine
Type Mould Type
Blade Material Cr12mov quenching and grinding
Frame Processing Whole bottom frame grinding for high precision
Blade Processing Wire-electrode cutting with specialized upper blade technology
Working Type Hydraulic
Stacker Options
Type Manual Auto (Option)
Length 2 pieces 6m or 12m
PLC Control System
Component Specification
PLC Delta (standard) or custom request
Inverter China brand (standard) or custom request
Touch Screen Mcgs (standard) or custom request
Encoder China brand (standard) or custom request
Voltage/HZ/Phase 380v/50-60hz/3phase
Hydraulic Pump Station
Galvanized Steel Profile PLC Control Hydraulic Cutting K Gutter Making Roll Forming Machine
Component Specification
Motor 3kw China brand or custom request
Pump China brand or custom request
Solenoid Valve China brand or custom request
Cooling System Cooling fan
