Hydraulic Cutting Type Steel Profile K Gutter Making Roll Forming Machine

•


• TECHNICAL PARAMETERS

  Specifications of Gutter Roll Forming Machine

  Seamless Gutter Machine	Item	Offered specification
  	Main forming Machine	5K,6K,7K, HALFROUND 3”/4”/5”/6”
  		(Each machine does one size and configuration)
  	Material width	Depend on profile
  	Rolling Speed	0-10m/min (not include cutting time)
  	Material Thickness	0.3-0.8mm G250mpa
  	Drive System	•Urethane top and bottom drive rollers for smooth even, non-twisting drive
  	Un Coiler	3 ton manual de-coiler (Built in the machine)
  	Roller Stations	11 stations
  	Roller Material	45# forge steel, coated with chrome, covered with rubber
  	Shaft Material and DIA	￠50mm, material is 45# forged steel
  	Main Motor Power	3.0kw
  	Cutoff Mechanism(alternative)	•Hand operated shear with built-in
  		•crimper or Cutoff saw
  	Tolerance	±1.5mm/3M
  	Electric Source	220V/380V, 50HZ,3 phase
  		Also can satisfy customer's require
  	Way Of Drive	1 inch single chain

  1. Description

  1. The structure is simple and the appearance of the gutter machine is beautiful.

  2. Gutter roll forming machine adopt the shape-steel structure and process as a whole after welding. It has

  the ability of strong loading and stable operation when running the machine.

  3. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

  4. It is very easy to install the equipment and suitable for producing in the factory.

  5. The machine has features of low noise and high efficiency.

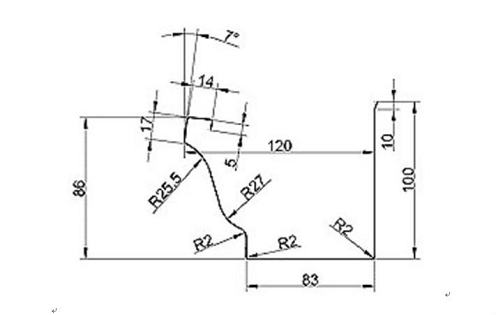

  2. Gutter Sketch












  4.Hydraulic Cutting Type Steel Profile K Gutter Making Roll Forming Machine Technical Details

  Machine Specifications
  Weight	About 7000kgs
  Size	About 12m x 1.1m x 1.2m (length x width x height)
  Color	Main color: blue
  	Warning color: yellow
  Suitable Raw Material
  Material	PPGI and PPGL Coils, Copper
  Thickness	0.5-0.7mm
  Coil width	610mm
  Yield Strength	235Mpa
  Main Technical Parameters
  Diameter of forming rollers shafts	55mm
  Quantity of roller stations	25 rows
  Roll Forming Speed	About 20m/min
  Forming rollers material	No.45 steel, coated with chromed treatment
  Cutter material	CR12 mould steel, with quenched treatment
  Controlling system	PLC and Converter
  Electric Power requirement	Main motor power: 5.5kw
  	Hydraulic unit motor power: 5.5kw
  Electric voltage	According to customer’s requirement



  5. Hydraulic Cutting Type Steel Profile K Gutter Making Roll Forming Machine Main Components

  No	Name		Quantity	Remarks
  1	Decoiler		1set	Up to customer
  2	Main machine	Pre-cutting device	1set	Up to customer
  		Feeding device	1set
  		Roll forming system	1set
  		Post cutting device	1set
  		Hydraulic system	1set
  3	Electric control system		1set
  4	Supporter/Automatic Stacker		1set	Up to customer
