Specifications
Brand Name :
BEST
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD18000---46000
Payment Terms :
L/C,T/T
Supply Ability :
20 sets/month
Delivery Time :
30 work days
Packaging Details :
As usual, we will cover the machine by plastiic film, then fix the machines into the container by steel line into the container
Name :
Galvanized Steel Profile Laser Welding Square&Round Tube Making Cold Roll Forming Machine
Usage :
Steel Construction
Cutting Blade Material :
Cr 12 High Grade Steel
Control System :
Taiwan Delta
Cutting Type :
Hydraulic Cutting
Color :
Client's Request
Feature :
High Speed Production
Description

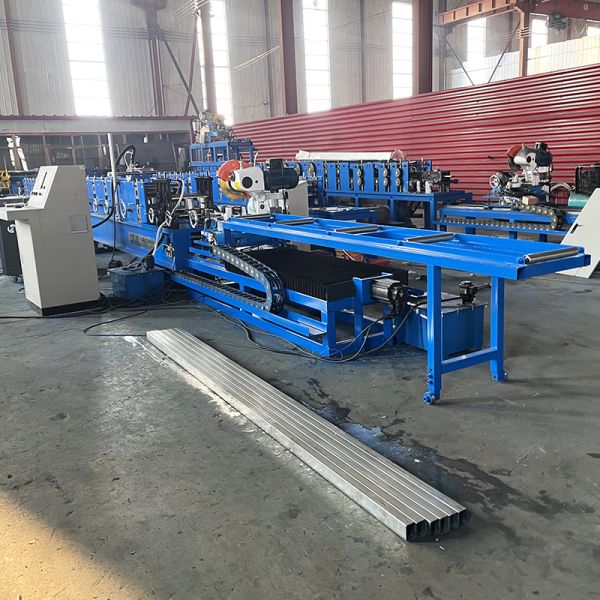

Galvanized Steel Profile Laser Welding Square & Round Tube Making Cold Roll Forming Machine
Our high-performance roll forming machine combines European quality standards with over a decade of manufacturing expertise to deliver exceptional production capacity and reliability.
Key Performance Advantages
  • Designed and manufactured to European quality standards
  • Premium materials and components backed by 10+ years of experience
  • Double the production capacity compared to competitor machines
  • High working speed up to 60 meters per minute
  • Easy installation and operation for maximum productivity
Material Specifications & Product Range
Parameter Specification
Material Type Aluminium coil or color coated coil
Material Thickness 1-3mm
Yield Strength 280-350 MPA
Feeding Width According to profile requirements
Effective Width According to profile requirements
Manual Decoiler System
Specification Value
Inner Diameter 450-550mm
Outer Diameter 1500mm
Max Coil Width 300mm
Capacity 1.5T
Decoiler Dimension 1.5 * 1.5 * 1.5m
Decoiler Weight 355 KGS
Quantity 1 set
The manual decoiler supports steel coils and uncoils them in a turntable motion, using passive uncoiling pulled by the roll forming system.

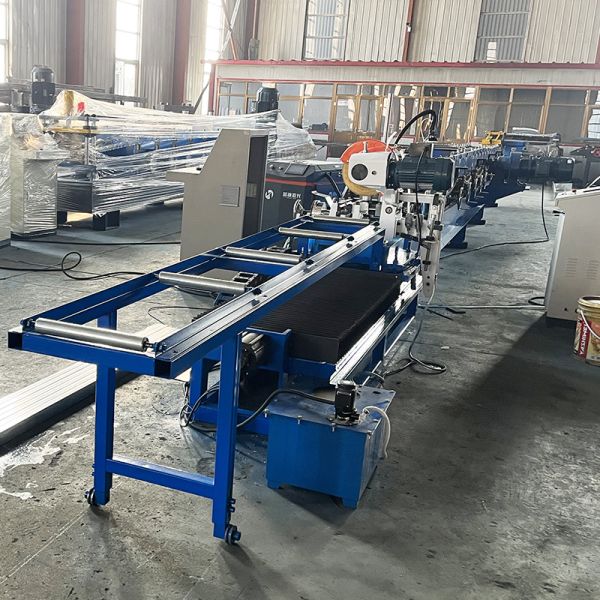

Main Forming Machine Specifications
Parameter Specification
Forming Steps 16 steps
Shaft Diameter 70mm
Machine Stand Welded Middle Plate
Machine Frame 300 H Steel welded
Roller Material 45# steel
Shaft Material 45# steel with quenching and tempering
Work Speed 10-15m/min
Transport System By chain
Main Machine Power 5.5kw
Voltage 380V-50HZ-3P (as required)
Machine Dimension 7.5 * 0.8 * 1.5m
Machine Weight Approximately 3.5T
Machine Color Yellow and blue (as required)
Features welded sheet structure for maintaining product shape and precision, motor reducer drive, chain transmission, and chromed rollers that ensure smooth molding plate surfaces and resistance to marking during operation. Engineered for stability, precision, and long service life.
