Specifications
Hydraulic Station Power :
11KW*2+5.5KW
Payment Terms :
L/C,D/A,D/P,T/T
Packaging Details :
Standard Packing with steel wire fixed and film coated
Material Thickness :
1.5-2.5mm, Galvanized coils
Brand Name :
sussman
Working Speed :
About 0-10m/min
Model Number :
PV Solar Strut Channel
Main motor power :
18.5 KW
MOQ :
1 set
Delivery Time :
75ays
Cutting type :
Servo following cutting
Price :
negotation
Supply Ability :
10 set per month
Forming Steps :
About 20 stations
Certification :
CE ISO 9001
Driven system :
Gear box
Place of Origin :
China
Description

This Solar PV Strut Channel Roll Forming Machine processes 1.5-2.5mm galvanized steel coils. It adopts servo following punching & cutting together with hydraulic punching function. The punching and cutting head tracks the running profile synchronously without line stop, achieving precise hole pitch and cut length, low deformation and clean cutting edge.

Fully automatic production for solar mounting brackets, solar racking and solar farm support structures. PLC & touch screen control, easy to adjust hole patterns and profile length for different solar project requirements.
Machine List:
S.N
Equipment name
Quantity
1
3 ton passive decoiler
1 set
2
Main roll forming machine
1 set
3
Servo following punching device
2 sets
4
Servo following cutting device
1 unit
5
PLC Control box
1 unit
6
Hydraulic station
1 unit
7
Out tables
2 units
8
Safety cover
1 set
9
Spare parts
1 Package
Machine Specification:
1
Material Thickness
1.5-2.5mm, Galvanized coils
2
Working Speed
About 0-10m/min
3
Forming Steps
About 20 stations
4
Material of Roller
Gcr15
5
Driven system
Gear box
6
Main motor power
18.5 KW
7
Cutting type
Servo following cutting
8
Material of cutting
Cr12Mov with quench HRC58-62°
9
Electronic control
PLC control
10
Hydraulic Station Power
11KW*2+5.5KW
1.5-2.5mm Galvanized Coils PV Solar Strut Channel Roll Forming Machine Servo Hydraulic Punching Solar Mounting Bracket
1.5-2.5mm Galvanized Coils PV Solar Strut Channel Roll Forming Machine Servo Hydraulic Punching Solar Mounting Bracket

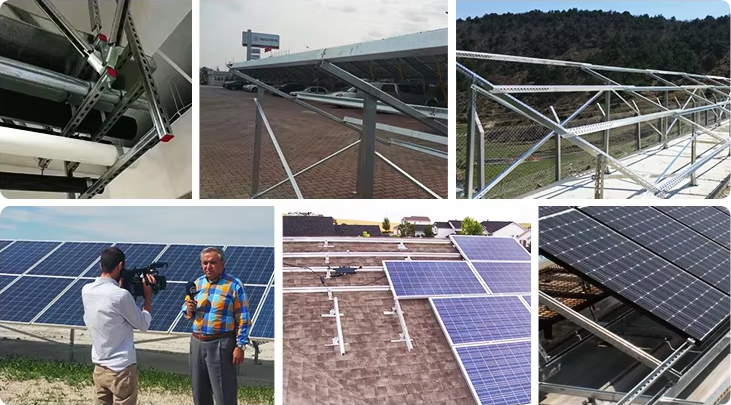

Wide Application Scenarios

1. Solar Farm Mounting Structure
Produce strut channels for ground-mounted solar power station support frames.

2. Rooftop Solar PV Racking
 Fabricate C-type strut profiles for rooftop solar panel mounting brackets.

3. Commercial Solar Installation
Supply metal strut components for industrial & commercial solar engineering projects.

4. Solar Bracket Manufacturing Factory
Mass production of galvanized solar strut channels for solar bracket manufacturers.

5. Building Solar Integration
Make PV support steel profiles for building-integrated solar systems.
Solution Advantages
1. Comprehensive After-sales Service
We promptly handle all equipment issues for customers. Remote technical guidance is available, and professional technicians can be dispatched for on-site commissioning to deliver satisfying service.


2. On-time Delivery Guarantee
Reasonable production schedules are formulated to arrange manufacturing orderly. We strictly control progress to ensure goods delivery as scheduled.


3. Complete Spare Parts Supply
Original matching accessories are fully provided, facilitating daily replacement and maintenance to keep machines running steadily.


4. Strict Quality Inspection
All products undergo multi-standard testing before delivery. Every detail is checked rigorously to guarantee reliable overall equipment quality.
