Specifications
MOQ :
1 set
Delivery Time :
95 days
Forming Station :
About 18-20 stations
Price :
negotation
Raw Material :
Hot dip galvanized Sheet，Stainless Steel
Packaging Details :
Standard Packing with steel wire fixed and film coated
Model Number :
SSM-SS
Warranty Period :
12 months
Supply Ability :
10 set per month
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Hydraulic Station :
30 kw
Brand Name :
Sussman
Roller Drive :
Gear box
Certification :
CE ISO 9001
Line Speed :
8-10 m/min
Place of Origin :
Jiangsu,Chain
Control :
PLC Systems
Description

Hydraulic Punching Solar Mounting System Unslotted&Slotted C Uni Solar Strut Roll Forming Machine

Hydraulic Punching 1.5-2.5mm GI Stainless Steel Strut Channel Slotted & Unsoltted Uni Solar Structure Channel Roll Forming Machine With Servo Following Cutting For Sale

1.Unslotted&Slotted C Uni Solar Strut Roll Forming Machine Technical Parameter

1 Suitable to process

Stainless steel and GI
2 Width of the plate As customer need
3 Thickness of the plate 1.5-2.5mm
4 De-coiler Passive one, can load 5 tons raw material
5 Rollers for forming About 18-20 rollers
6 Diameter of the roller Φ75mm
7 Rolling material High Grade Steel 45#
8 Main motor power 18.5kw
9 Productivity About 8-10m/min

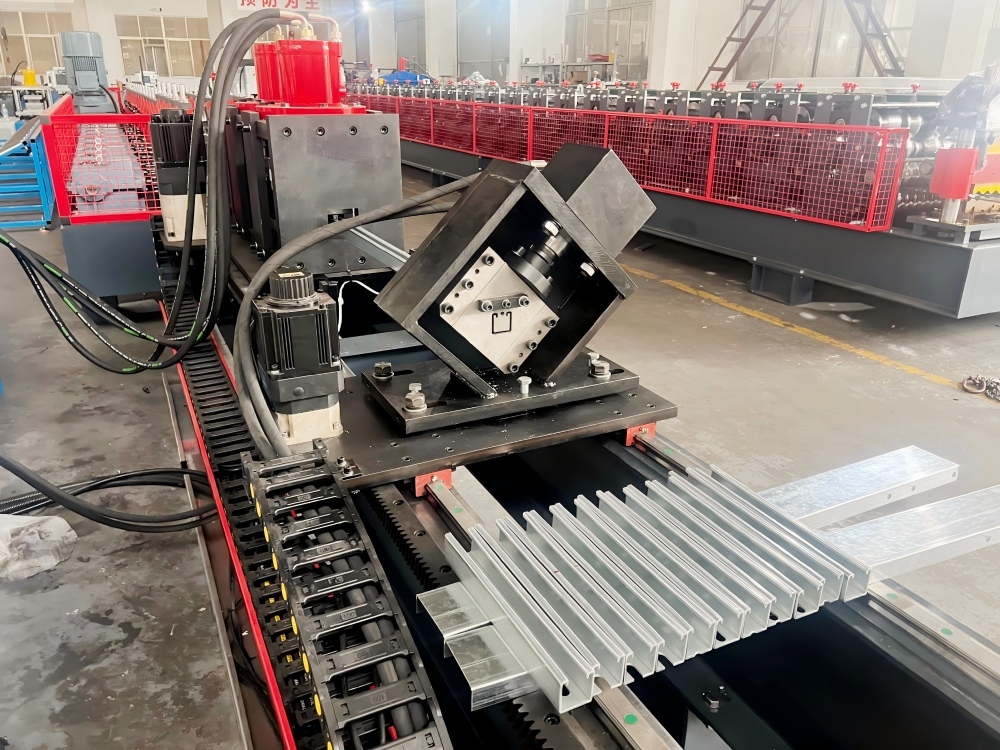

10 Cutting method Hydraulic servo following cutting
11 Material of the cutting blade Cr12Mov
12 Hydraulic cutting power 30kw
13 Processing precision +/- 1.50mm
14 Control system PLC control
15 Main structure of the machine 350 H steel
16 Weight About 15 T
17 Dimensions 12.5*1.1*1.2m
18 Voltage 220V 60Hz 3phases,or according to your request

2. Unslotted&Slotted C Uni Solar Strut Machine’s Components

Item Components Name Quantity
1 5T Passive Decoiler 1 set
2 Hydraulic Punching Dies 2 sets
3 Roll Forming Machine 1 set
4 Hydraulic Station 1 set
5 PLC control Cabinet 1 set
6 Cutting blade 1 set
7 Out table 1 set
8 Safety cover 1 pc

3. Unslotted&Slotted C Uni Solar Strut Profile Drawing

Hydraulic Punching 1.5-2.5mm GI Stainless Steel Strut Channel Slotted & Unsoltted Uni Solar Structure Channel Roll Forming Machine With Servo Following Cutting For Sale

4.Application

To make c channel strut channel machine, we have two method, one is by press punching with high speed,

other one is to by hydraulic punching with low speed, also can do fly punching, the speed is fast and save costs.

But this machine is customized without punching machine.

Hydraulic Punching 1.5-2.5mm GI Stainless Steel Strut Channel Slotted & Unsoltted Uni Solar Structure Channel Roll Forming Machine With Servo Following Cutting For Sale

Hydraulic Punching 1.5-2.5mm GI Stainless Steel Strut Channel Slotted & Unsoltted Uni Solar Structure Channel Roll Forming Machine With Servo Following Cutting For Sale
Hydraulic Punching 1.5-2.5mm GI Stainless Steel Strut Channel Slotted & Unsoltted Uni Solar Structure Channel Roll Forming Machine With Servo Following Cutting For Sale
We can make multiple sizes in one machine, please feel free to contact us to get more details about it !
