0.8-1.0mm Galvanized Steel Light-duty Curtain Track Rail Roll Forming Machine For Windows
0.8-1.0mm Galvanized Steel Light-duty Curtain Track Rail Roll Forming Machine For Windows
0.8-1.0mm Galvanized Steel Light-duty Curtain Track Rail Roll Forming Machine For Windows
0.8-1.0mm Galvanized Steel Light-duty Curtain Track Rail Roll Forming Machine For Windows
0.8-1.0mm Galvanized Steel Light-duty Curtain Track Rail Roll Forming Machine For Windows
0.8-1.0mm Galvanized Steel Light-duty Curtain Track Rail Roll Forming Machine For Windows
Specifications
Hydraulic power :
4Kw
MOQ :
1 set
Delivery Time :
60 days after deposit
Weight :
2.5 tons
Price :
negotiable
Packaging Details :
Standard packing
Forming Speed :
12-15 m/min
Model Number :
SM-SD
Payment Terms :
T/T L/C,Western Union,MoneyGram,D/P
Supply Ability :
10 sets per months
Main Motor Power :
5.5Kw
Certification :
CE,SGS,ISO
Forming Stations :
12 stations
Place of Origin :
Wuxi Jiangsu China
Material Thickness :
0.8-1.0 mm galvanized steel, PPGI
Brand Name :
Sussman
Description

0.8-1.0mm Galvanized Steel Light-duty Curtain Track Rail Roll Forming Machine For Windows



Shutter Door Technical Parameter


Description


Offered specification
Product Line speed 8-15m/min
Suitable material thickness 0.8-1.0mm galvanized steel, yield strength≤G250MPa
Material width As profile
Decoiler 3 Tons passive decoiler
Roller stations

12 stations
Roller material 45# steel, quenching treatment
Shaft diameter Φ60mm ,material is 45# forge steel
Transmission By chain
Material of chain 45# forged steel with frequency quenching
Cutting system Hydraulic cutting blade cr12mov with quench HRC58-62°
Main motor power 5.5kw
Motor power of hydraulic station 4kw
Hydraulic station pressure 12Mpa
Tolerance 6m+-1.5mm


Shutter Door Main Components


S.N

Equipment name

 Quantity
1.

3T passive un-coiler

 1 set
2.

Feeding with guide

 1 set
3.

Roll forming machine


1 set
4.

Hydraulic cutting device

 1 set
5.

Control system (including control box)

 1 set
6.

Out tables

 2 sets
7.

Spare Parts

 1 package

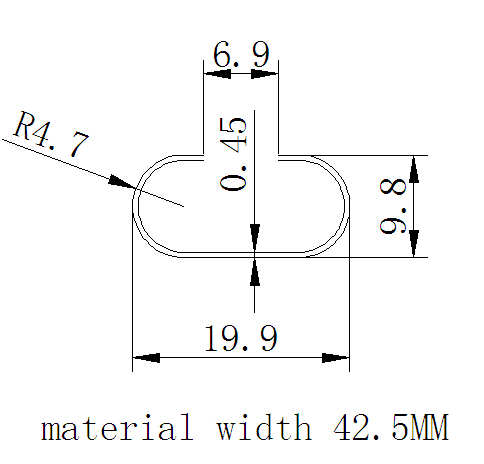

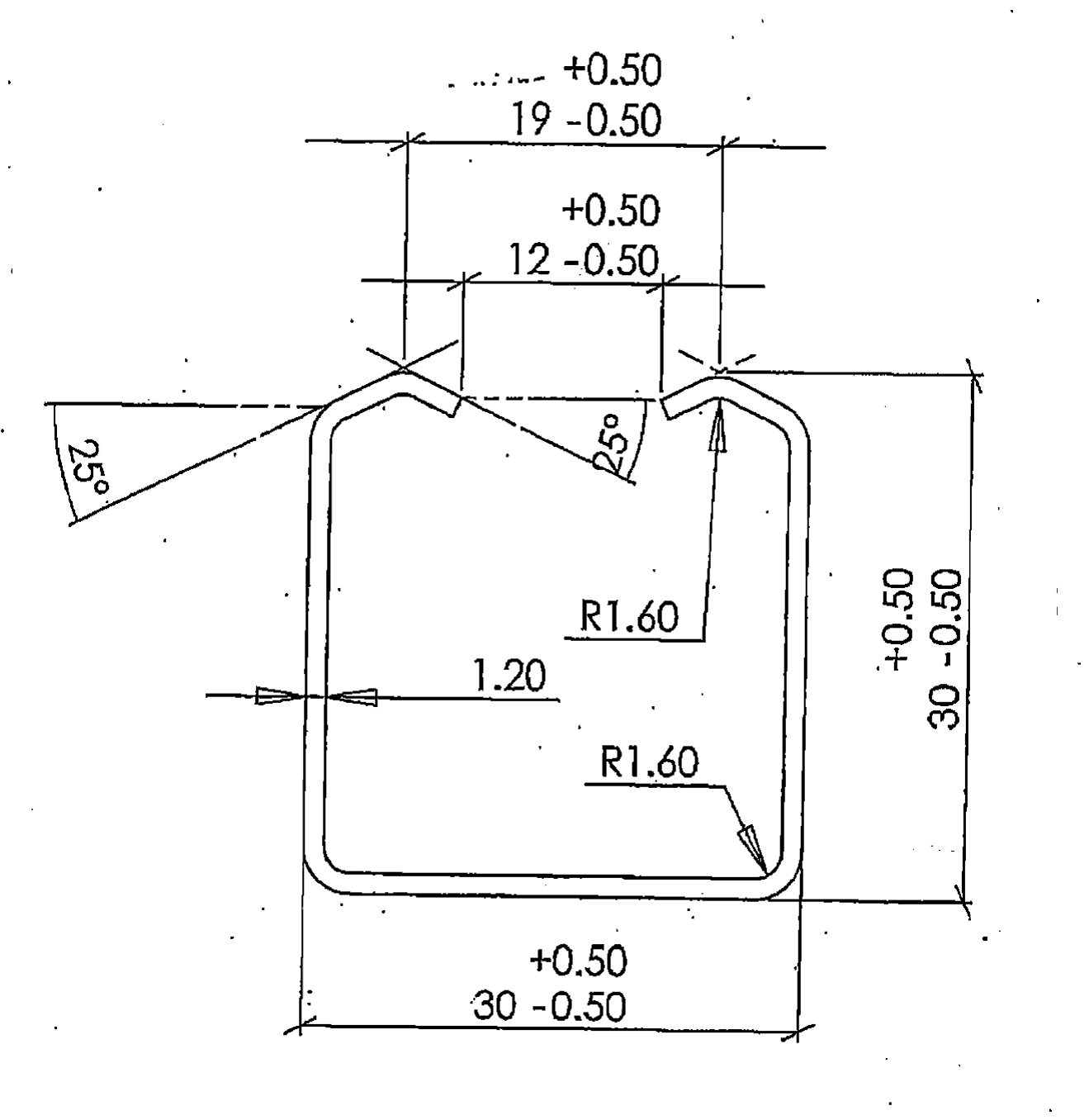

Profiles of metal curtain track

0.8-1.0mm Galvanized Steel Light-duty Curtain Track Rail Roll Forming Machine For Windows

0.8-1.0mm Galvanized Steel Light-duty Curtain Track Rail Roll Forming Machine For Windows

Applications

In short, the right curtain track combines strength, smooth operation, and a discreet look, making it a versatile solution for windows and room-dividing needs alike

  • Living & Dining Rooms: Often use motorized or heavy-duty tracks for large windows and a mix of sheer and heavy curtains .

  • Bedrooms: Multi-channel tracks are popular here to combine sheer curtains for daytime privacy and blackout curtains for sleep .

  • Kitchens & Bathrooms: Aluminum tracks are moisture-resistant and easy to clean. Cord-operated versions are practical over sinks and prep areas .

  • Offices & Hotels: S-Fold or cord-operated tracks are common for their professional, sleek appearance and ease of use in high-traffic areas .

  • Beyond Windows: Tracks can also be used as room dividers or to hide storage spaces

0.8-1.0mm Galvanized Steel Light-duty Curtain Track Rail Roll Forming Machine For Windows

0.8-1.0mm Galvanized Steel Light-duty Curtain Track Rail Roll Forming Machine For Windows
