70mm 78mm Awning Tube Roll Forming Machine with 0.6mm-1.2mm Thickness Galvanized Steel
70mm 78mm Awning Tube Roll Forming Machine with 0.6mm-1.2mm Thickness Galvanized Steel
70mm 78mm Awning Tube Roll Forming Machine with 0.6mm-1.2mm Thickness Galvanized Steel
70mm 78mm Awning Tube Roll Forming Machine with 0.6mm-1.2mm Thickness Galvanized Steel
70mm 78mm Awning Tube Roll Forming Machine with 0.6mm-1.2mm Thickness Galvanized Steel
70mm 78mm Awning Tube Roll Forming Machine with 0.6mm-1.2mm Thickness Galvanized Steel
70mm 78mm Awning Tube Roll Forming Machine with 0.6mm-1.2mm Thickness Galvanized Steel
70mm 78mm Awning Tube Roll Forming Machine with 0.6mm-1.2mm Thickness Galvanized Steel
70mm 78mm Awning Tube Roll Forming Machine with 0.6mm-1.2mm Thickness Galvanized Steel
70mm 78mm Awning Tube Roll Forming Machine with 0.6mm-1.2mm Thickness Galvanized Steel
Specifications
Supply Ability :
10 sets per month
Type :
70mm Awning Tube Roll Forming Machine
Model Number :
SM-OP
MOQ :
1 set
Delivery Time :
75 working days after deposit
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P
Working Speed :
0-10meters/min
Price :
negotiable
Forming Station :
About 30 Stations
Drive System :
Chain Driven
Certification :
CCC, SGS, ISO9001, CE
Place of Origin :
Wuxi Jiangsu China
Packaging Details :
Standard packing
Brand Name :
Sussman
Description

70mm 78mm Awning Tube Roll Forming Machine with 0.6mm-1.2mm Thickness Galvanized Steel

In the world of modern architecture and outdoor living, retractable awnings have become essential elements for residential and commercial spaces. At the heart of every high-quality awning system lies a critical component: the awning roller tube. Among the most popular and versatile sizes is the 70mm awning tube, which has emerged as the industry standard for a wide range of sunshade applications

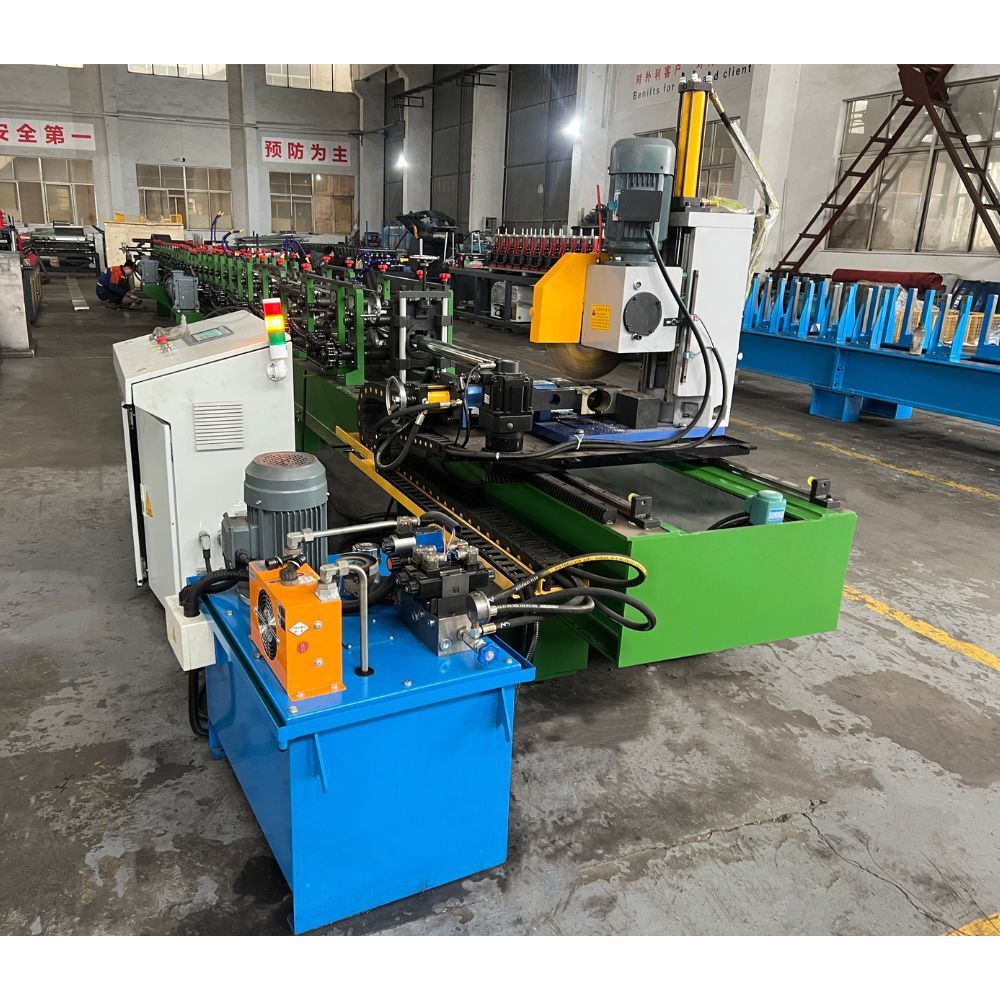

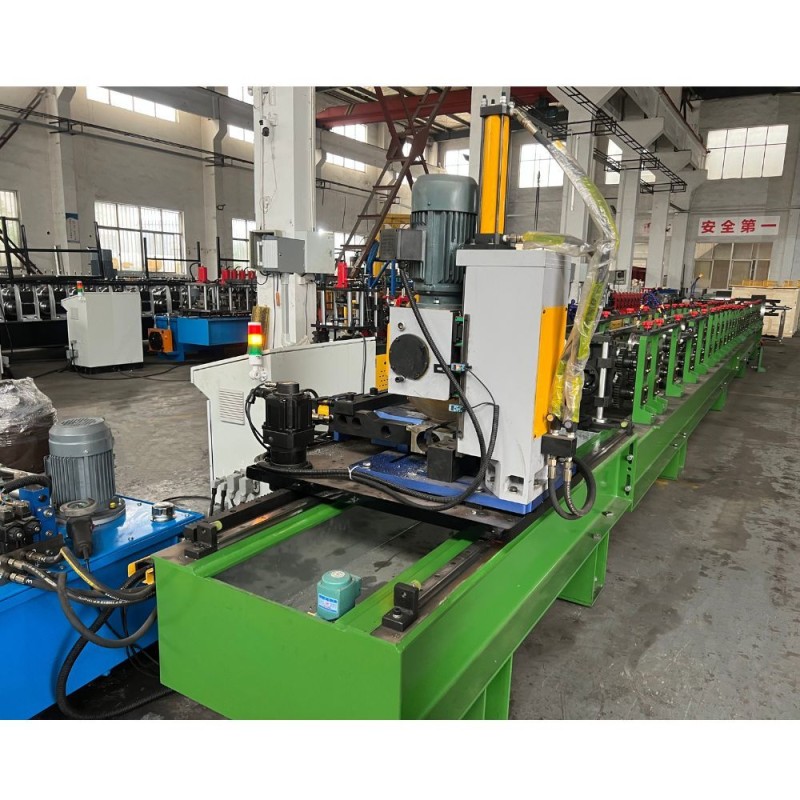

Awning Tube Roll Forming Machine comprised of 3T manual uncoiler, feeding guiding, roll forming machine, straighten device, fly saw cutting, electrical control system, output table.

Technical Parameter:
1. Material thickness:0.6-1.5mm galvanized coils
2. Forming speed: 0-10M/min (EXCLUDING CUTTING STOP TIME)
3. Forming roller: about 30 stations
4. Main motor power: 7.5KW*2
5. Roller material: 45# forged steel, surface coated with chrome
6. Main shaft material: 45# steel
7. Main axis dia.: ￠60mm
8. Hydraulic cutting pressure: 10-12Mpa
9. Cutting method: saw cutting, cutting after roll forming.
10. Electrical controlling system: Whole line adopted PLC control, cut to length tolerance≤2mm
11. Water cooling system
13. Way of Drive: Chain
Machine List:
Serial No. Commodity & Description Quantity
1 3T manual un-coiler 1 set
2 feeding guiding 1 set
3 Main roll forming machine with water cooling 1 set
4 Output table 1 set
5 Main drive 1 set
6 Fly saw cutting 1 set
7 Control box 1 set
8 Water cooling system 1 set

Working Flow:

Uncoiling – feed Guiding–Roll forming –fly saw cutting –Run-out table

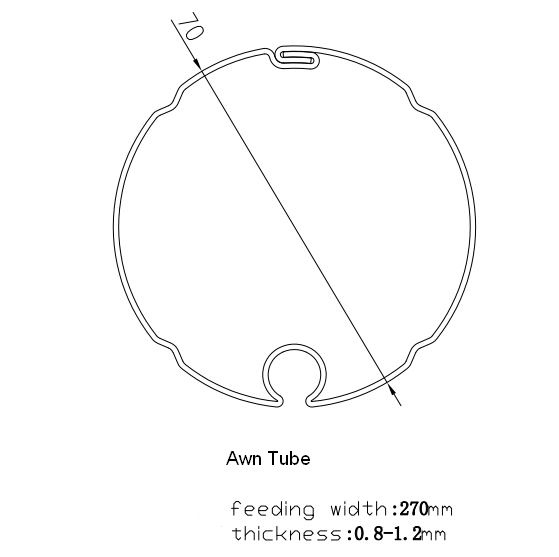

Profile Drawings:
70mm 78mm Awning Tube Roll Forming Machine with 0.6mm-1.2mm Thickness Galvanized Steel
We also can make the sizes 65mm, 70mm, 78mm, 85mm by changing cassettes
70mm 78mm Awning Tube Roll Forming Machine with 0.6mm-1.2mm Thickness Galvanized Steel

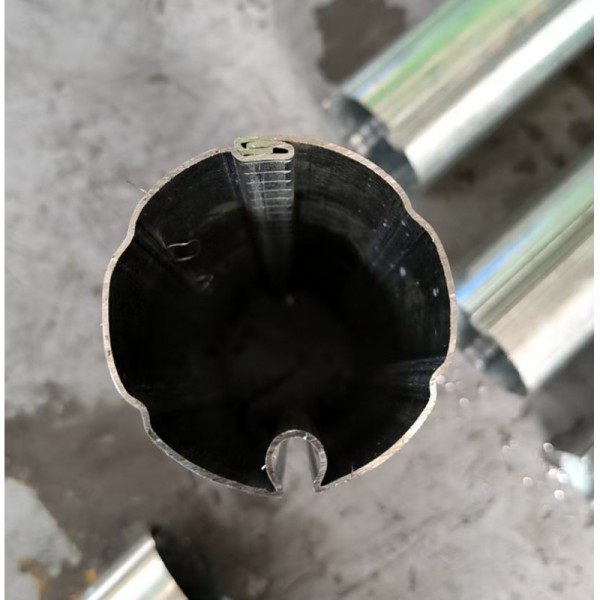

Samples:
70mm 78mm Awning Tube Roll Forming Machine with 0.6mm-1.2mm Thickness Galvanized Steel
Application:
70mm 78mm Awning Tube Roll Forming Machine with 0.6mm-1.2mm Thickness Galvanized Steel
70mm 78mm Awning Tube Roll Forming Machine with 0.6mm-1.2mm Thickness Galvanized Steel
