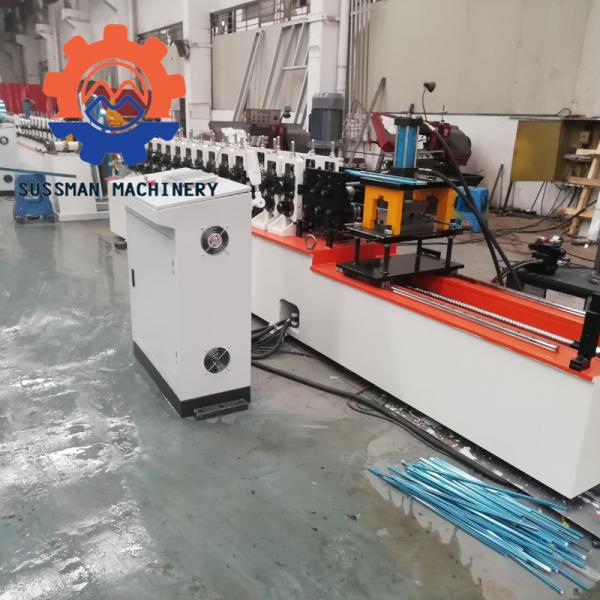

0.6mm Stainless Steel Glass Sliding Door U Channel Roll Forming Machine
0.6mm Stainless Steel Glass Sliding Door U Channel Roll Forming Machine
0.6mm Stainless Steel Glass Sliding Door U Channel Roll Forming Machine
0.6mm Stainless Steel Glass Sliding Door U Channel Roll Forming Machine
0.6mm Stainless Steel Glass Sliding Door U Channel Roll Forming Machine
0.6mm Stainless Steel Glass Sliding Door U Channel Roll Forming Machine
Specifications
Brand Name :
Sussman
Model Number :
SM-DR
Certification :
CE
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T L/C
Supply Ability :
10 sets per months
Delivery Time :
60days after deposit
Packaging Details :
Standard packing
Material Thickness :
0.6 mm stainless steel
Forming Speed :
0-30 m/min
Forming Stations :
13 stations
Shaft material :
45# steel
Usage :
glass door
Machine size :
6500*800*1000mm
Description

0.6 Mm Stainless Steel Glass Sliding Door U Channel Roll Forming Machine With High Speed 30 M/Min


Door Rail Technical Parameter


Suitable steel plate		 0.6mm stainless steel

Production speed		 0.-30m/min

Roller stand
13 rows

Diameter		 60mm

Main power
5.5kw

Pump power
4kw

Roller material
Carbon Steel 45#

Blade material
Cr12, qunched, Cr-plating size 0.05mm

Control system
PLC Delta

Main structure of the machine
300mm H-Beam



Door Rail Main Components

1.

3T passive un-coiler

 1 set
2.

Feeding and leveling device

1 set
3

Main roll forming machine

1 set
4

Hydraulic cutting

 1 set
5.

Control system (including control box)

 1 set
6

Out tables

 2 sets













Working Flow of Door Rail

Decoiler----Feeding and Leveling---Roll forming--- Non stop cutting---Run out tables



Profiles of Door Rail


0.6mm Stainless Steel Glass Sliding Door U Channel Roll Forming Machine

0.6mm Stainless Steel Glass Sliding Door U Channel Roll Forming Machine

0.6mm Stainless Steel Glass Sliding Door U Channel Roll Forming Machine
