Building Material Ridge Capping Metal Roll Forming Machine For Roof , Low Noise
Building Material Ridge Capping Metal Roll Forming Machine For Roof , Low Noise
Building Material Ridge Capping Metal Roll Forming Machine For Roof , Low Noise
Building Material Ridge Capping Metal Roll Forming Machine For Roof , Low Noise
Building Material Ridge Capping Metal Roll Forming Machine For Roof , Low Noise
Building Material Ridge Capping Metal Roll Forming Machine For Roof , Low Noise
Specifications
Brand Name :
SUSSMAN
Model Number :
SM-RH
Certification :
SGS.CE.ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
60 days after deposit
Packaging Details :
Steel wire and plastic film
Name :
metal ridge cap roll forming machine
Material thickness :
0.3-0.7mm GI,PPGI
Material Of Cutting :
CR12Mov with quench treatment
Condition :
New
After-sales service provided :
Engineers available to service machinery overseas
Voltage :
380V 50Hz 3phases
Color :
blue or as your request
Tile type :
Colored Steel
Description

Fully automation ridge cap roll forming equipment/ roof roll forming machine

Technical Parameter

Item NO

Description

Offered specification

1

Product Line speed

5-10m/min(not include cutting )

2

Suitable material thickness

0.3-0.7mm

3

Raw material

Color steel sheet and galvanized steel

4

Material width

300mm-500mm

7

Roller stations

16 stations

8

Roller material

45# Bearing steel, quenching treatment

9

Shaft diameter

Φ75mm ,material is 45# forge steel

10

Transmission

By chain one inch 20A single chain

11

Material of chain

45# forged steel with frequency quenching, 12A

12

Cutting system

Hydraulic cutting blade cr12mov with quench HRC58-62°

13

Main motor power

7.5kw

14

Motor power of hydraulic station

4kw

15

Hydraulic station pressure

12Mpa

16

Tolerance

6m+-1.5mm

17

Machine Frame

H Beam Steel

Main Components

Equipment name

 Quantity

3T passive un-coiler

 1 set

Feeding and leveling device

1 set
Main roll forming machine 1 set

Hydraulic station

 1 set

Control system (including control box)

 1 set

Out tables

 2 sets

Spare parts

 1 package

Working Flow of Roll Forming Machine

Decoiler----Feeding---Roll forming---Hydraulic Cutting---Run out tables

Advantage

For more information,welcome to visit our website: www.rollformingmachine.info

1. Designed by 15 years experienced R&D members with lifetime services.
2. Introduced Mitsubishi PLC with touch screen.
3. Need only one worker (minimum) to operate
4. Roller cover with 0.05mm chrome, ensure lifetime>10years
5. Cr12Mov mould steel cutter with quenched treatment. Blade with heat treatment.
6. Product cut-to-length.
7. 75mm diameter solid steel shaft

Photo Gallery

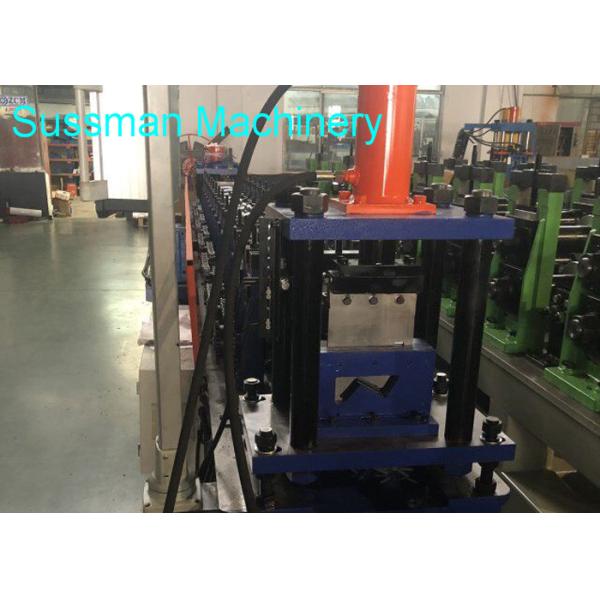

Building Material Ridge Capping Metal Roll Forming Machine For Roof , Low Noise

Building Material Ridge Capping Metal Roll Forming Machine For Roof , Low Noise
