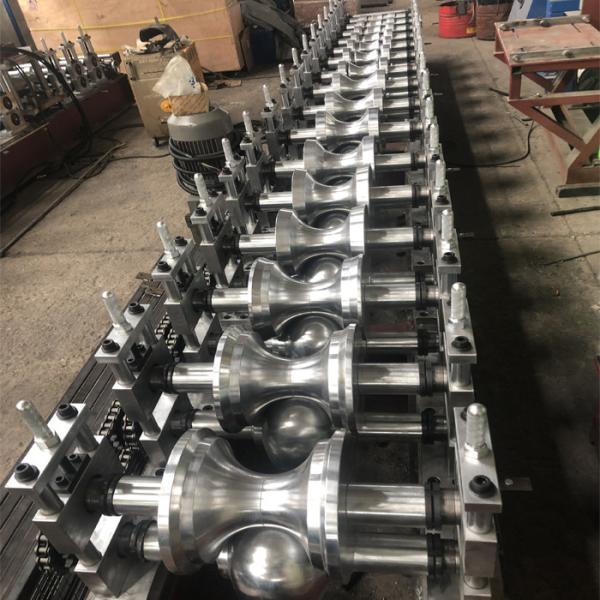

16 Roller Stations Round 0.3mm Ridge Cap Roll Former
16 Roller Stations Round 0.3mm Ridge Cap Roll Former
16 Roller Stations Round 0.3mm Ridge Cap Roll Former
16 Roller Stations Round 0.3mm Ridge Cap Roll Former
16 Roller Stations Round 0.3mm Ridge Cap Roll Former
16 Roller Stations Round 0.3mm Ridge Cap Roll Former
Specifications
Brand Name :
Sussman
Model Number :
Tile capping 01
Certification :
ISO 9001 SGS
Place of Origin :
Wuxi,China
MOQ :
1
Price :
USD 16500-USD23500 per set
Payment Terms :
T/T
Supply Ability :
5 Sets per month
Delivery Time :
30 days
Packaging Details :
Naked packing
Material :
0.3—0.8mm PI, PPGI
Rolling Speed :
5-10m/min
Roller Stations :
16stations
Roller material :
45# steel, coated with chrome
Tolerance :
+-1.5mm
Description

16 Roller Stations Round Ridge Cap Roll Forming Machine Thickness 0.3-0.8mm Galvanized Coil

Technical Data

Items

Specifications
Material of coil Material Thickness 0.3—0.8mm
Un Coiler 3 tons manual
Forming system Rolling Speed 5-10m/min
Roller Stations 16stations
Roller material 45# steel, coated with chrome
Maim Motor Power 5.5kw

Hydraulic cutting Power

 4kw

Cutting

system

 Material Of Cutting CR12 with quench treatment
Hardness HRC58-62
Tolerance +-1.5mm
Electrical control system Electric Source

380V, 50HZ,3 phase

Also can satisfy customer’s require
Control System PLC with touch screen
Way Of Drive 1.2 inch single chain

Packing

information

 Color of the machine blue

Working flow

Uncoiling—Feedingwithguide—Roll forming—cutting—Products collecting
