Specifications
Brand Name :
Sussman
Model Number :
SM-SB
Certification :
SGS.ISO,CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 sets per month
Delivery Time :
60days
Packaging Details :
standard packing film and steel
Name :
Metal Shutter Bottom Roll Forming Machine
Material thickness :
0.7-1.2mm galvanized steel
Forming stations :
About 23 roller stations
Roller material :
45# high grade Steel
Dirve system :
Chain drive
Forming speed :
0-12m/min
Cutting method :
stop saw cutting
Main power :
11KW
Description

0.7-1.2mm Galvanized Steel Metal Shutter Bottom Roll Forming Machine with Stop Saw Cutting

Machine Technical Data

Suitable material

Color steel sheet , galvanized steel

Roller station

23 stations

Main motor power

11KW

Cutting method

Stop saw cutting

Thickness of material

0.7-1.2mm

Diameter of principal axis

Φ60

Material expand width

as profile

Electric tension

380V 3phase 50HZ or as the customer's requirements

Material of roller

High grade Gcr15# forged steel plated with hard chrome plating

Controlling system

PLC

Processing speed

8-12m/min

Processing precision within

+-1.00mm (depend on design)

Material of cutting blade

Cr12 mould steel with quenched treatment

Kind of drive

1 inch chain

Installation Dimension (L*W*H)

9.0m*0.8m*1.2m

Roller material

high grade 45#steel; Cr12 quenching

Weight

 5ton

Working flow

Decoiler----------Feeding with guide-------Roll forming---------Saw cutting-----Out table
0.7-1.2mm Galvanized Steel Metal Shutter Bottom Roll Forming Machine with Stop Saw Cutting

The roll forming process involves feeding a continuous strip of metal through a series of rollers that gradually shape the metal into the desired profile. In the case of a shutter bottom roll forming machine, the rollers are designed to form the bottom section of the shutter door, which typically has a corrugated or ribbed profile for strength and rigidity.

These machines can be highly automated, with computer controls to adjust settings such as roller positions and feed rates. They are capable of producing shutter bottom sections efficiently and consistently, making them suitable for high-volume production environments.

The resulting shutter bottom sections can then be assembled with other components to create complete shutter doors, which are used in various applications such as storefronts, warehouses, and garages.

Production Line Machine List

Serial No.

Commodity & Description

Quantity

1

3T passive uncoiler

1 set

2

Feeding with guiding

1 set

3

Main roll forming machine

1 set

4

Output table

1 set

5

Main drive chain

1 set

6

Saw cutting

1 set

7

Controll system (including cabinet)

1 set

8

Water cooling system

1 set

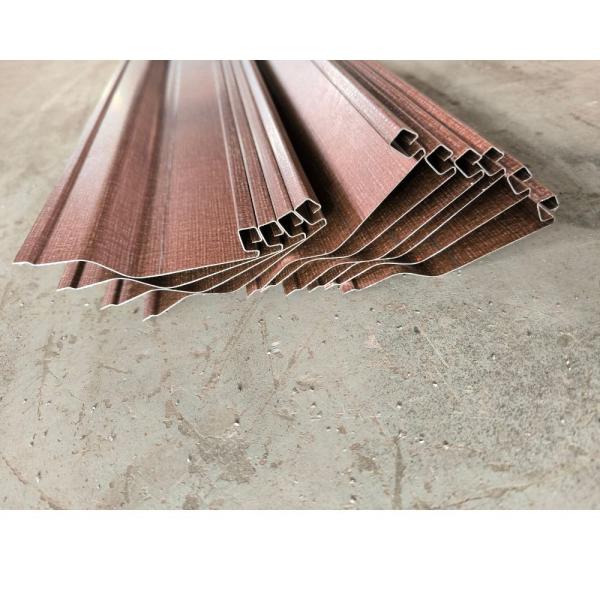

Profile

0.7-1.2mm Galvanized Steel Metal Shutter Bottom Roll Forming Machine with Stop Saw Cutting0.7-1.2mm Galvanized Steel Metal Shutter Bottom Roll Forming Machine with Stop Saw Cutting

Loading pictures

0.7-1.2mm Galvanized Steel Metal Shutter Bottom Roll Forming Machine with Stop Saw Cutting

The machine photo

0.7-1.2mm Galvanized Steel Metal Shutter Bottom Roll Forming Machine with Stop Saw Cutting


All machines are customized. If you have any interest in this machine, please send us the profile drawing or sample picture.
