60 Mm 70 Mm 85 Mm Steel Awning Tube Roll Forming Machine Roller Blind Tube Roll Forming Machine
60 Mm 70 Mm 85 Mm Steel Awning Tube Roll Forming Machine Roller Blind Tube Roll Forming Machine
60 Mm 70 Mm 85 Mm Steel Awning Tube Roll Forming Machine Roller Blind Tube Roll Forming Machine
60 Mm 70 Mm 85 Mm Steel Awning Tube Roll Forming Machine Roller Blind Tube Roll Forming Machine
60 Mm 70 Mm 85 Mm Steel Awning Tube Roll Forming Machine Roller Blind Tube Roll Forming Machine
60 Mm 70 Mm 85 Mm Steel Awning Tube Roll Forming Machine Roller Blind Tube Roll Forming Machine
60 Mm 70 Mm 85 Mm Steel Awning Tube Roll Forming Machine Roller Blind Tube Roll Forming Machine
60 Mm 70 Mm 85 Mm Steel Awning Tube Roll Forming Machine Roller Blind Tube Roll Forming Machine
Specifications
Brand Name :
Sussman
Model Number :
SM-OP
Certification :
SGS.ISO,CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
60days
Packaging Details :
standard packing film and steel
Name :
Roller Blind Tube Roll Forming Machine
Material :
45# Steel
material thickness :
0.8mm-1.2mm
Forming stations :
24 stations
Roller material :
GCr15 Steel
Cassette :
50mm tube, 60mm tube, 65mm tube, 70mm tube, 78mm tube, 80mm tube, 85mm tube
Cutting method :
Fly saw cutting
warranty :
one year
Description

60 Mm 70 Mm 85 Mm Steel Awning Tube Roll Forming Machine Roller Blind Tube Roll Forming Machine

Machine Technical Data

Feeding materials

0.8-1.2mm, galvanized steel

Machine frame type

Cast iron structure

Forming station

24 stations roller

Main shaft material

45# Round steel, heat treatment,HRC40-45,Φ70mm

Rollers material

Gcr15,ball bearing steel, quenching HRC 52-55C°, chrome coating 0.05mm

Bearing

Chinese famous brand/HRB brand

Transducer

YASKAWA ,Japan

Operation system

Operation cabinet + Emergency remote control unit

Encode

Omron, Japan brand

Other electricals

Schneider and Omron brand.

Line of dimension(L-W-H)

Approx 9500×900x1300mm

Brand

Chinese famous brand

Transmission

Gearbox


Production Line Machine List

Serial No.

Commodity & Description

Quantity

1

3T hydraulic uncoiler

1 set

2

Feeding

1 set

3

Main roll forming machine

1 set

4

Output table

1 set

5

Main drive gear box

1 set

6

Fly saw cutting

1 set

7

Controlling system (including cabinet)

1 set

8

Water cooling system

1 set

9

Safety cover

2 sets


Standard Profile is for reference

Steel roller tube for awnings is the most popular tube used for awnings or Roller blind. It’s strong galvanized or Zincalume finished without rusted even used in outdoor environment.
You can have different options for the roller tubes, such as galvanized tubes, 50mm tube, 60mm tube, 63mm tube, 65mm tube, 70mm tube, 78mm tube, 80mm tube, 85mm tube etc. And many sizes can make in one machine, to change the size by cassette

60 Mm 70 Mm 85 Mm Steel Awning Tube Roll Forming Machine Roller Blind Tube Roll Forming Machine


Application

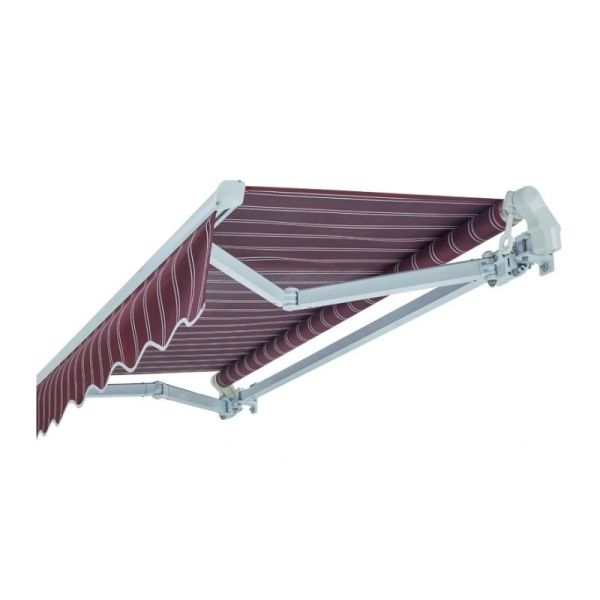

Roller tube used for retractable arm awnings, window drop arm awning, window vertical roller awnings, french awnings, roof awnings, retractable PVC roof pergola, adjustable louvered pergola and zip roller blind.

60 Mm 70 Mm 85 Mm Steel Awning Tube Roll Forming Machine Roller Blind Tube Roll Forming Machine

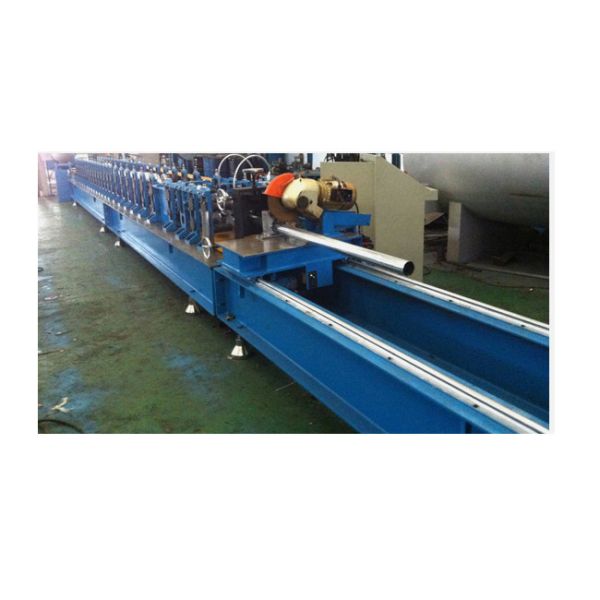

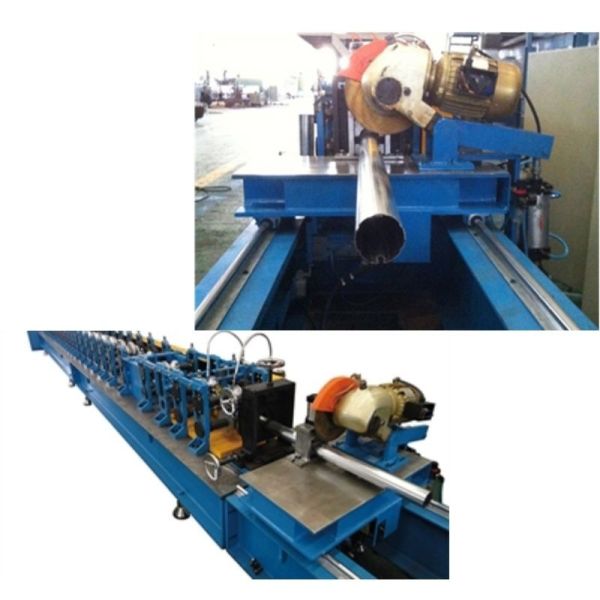

Awning pipe machine photo

1. We can produce the special machine,send your drawing to us,we can design for you.

2. We provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
3.The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations.

60 Mm 70 Mm 85 Mm Steel Awning Tube Roll Forming Machine Roller Blind Tube Roll Forming Machine

Compmany information

60 Mm 70 Mm 85 Mm Steel Awning Tube Roll Forming Machine Roller Blind Tube Roll Forming Machine

60 Mm 70 Mm 85 Mm Steel Awning Tube Roll Forming Machine Roller Blind Tube Roll Forming Machine
