Hydraulic Cutting Metal Shutter Door Forming Machine 12 Steps 12-15 M / Min Speed
Hydraulic Cutting Metal Shutter Door Forming Machine 12 Steps 12-15 M / Min Speed
Hydraulic Cutting Metal Shutter Door Forming Machine 12 Steps 12-15 M / Min Speed
Hydraulic Cutting Metal Shutter Door Forming Machine 12 Steps 12-15 M / Min Speed
Hydraulic Cutting Metal Shutter Door Forming Machine 12 Steps 12-15 M / Min Speed
Hydraulic Cutting Metal Shutter Door Forming Machine 12 Steps 12-15 M / Min Speed
Hydraulic Cutting Metal Shutter Door Forming Machine 12 Steps 12-15 M / Min Speed
Hydraulic Cutting Metal Shutter Door Forming Machine 12 Steps 12-15 M / Min Speed
Specifications
Brand Name :
Sussman
Model Number :
SM-SD-048
Certification :
CE, SGS, ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 15,000 per set
Supply Ability :
5 sets per month
Delivery Time :
30-90 days
Packaging Details :
standard film
working speed :
12-15m/min
diameter of rollers :
＞￠150
Material of main shaft :
45# high quality steel (diameter＞￠50)
number of teeth :
13
Cutting :
hydraulic cutting; quenching HRC58-62
circular pitch :
38.1
Description

Hydraulic Cutting Metal Shutter Door Forming Machine 12 Steps 12-15 M / Min Speed

The technique data

Main parameter of stud&truss& furring roll forming machine
Suitable to process Color steel plate
Width of the plate As customer need
Thickness of the plate 0.5-1.2mm
De-coiler Manual one, can load 5 tons raw material
Rollers for forming 12 rows
Material of the cutting blade Cr12
Hydraulic cutting power 3kw
Processing precision Within 1.00mm
Control system Delta PLC control
Side panel of machine 14mm

Working flow

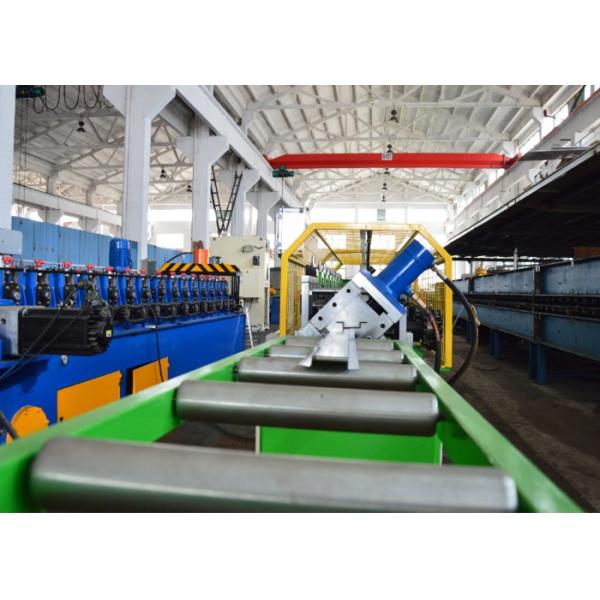

decoiler—→level device—→main roll forming machine—→hydraulic cutting—→ run out table

Parts of machine

name quantity (set)
De-coiler 1set

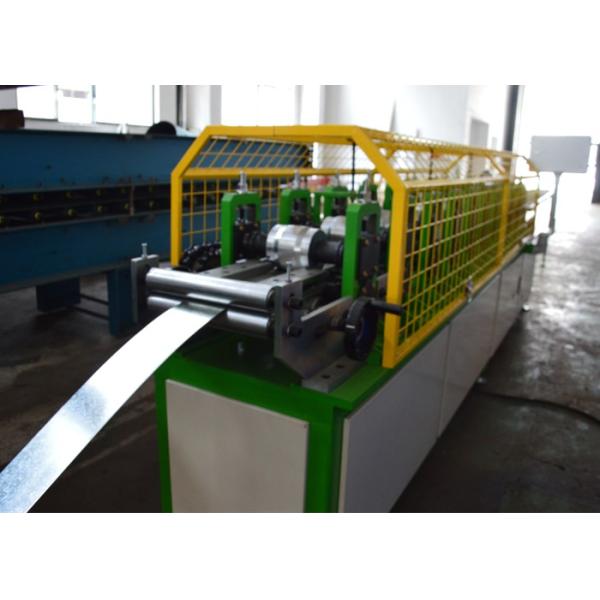

Main roll forming machine 1set
Run out table 2 sets
Control panel 1set

Installation of the machine

The individual components of the machine are installed according to the layout and prepared for the commissioning.

The installation comprises of:

- Installation by Sussman service technicians.

- The following services are included:

- Installation of the machine components.

- Adjustment of the machine components.

- Connection of all motors to the control cabinet.

- Installation of the required safety devices.

Delivery extent does not comprise of:

- Media supply (electrics, compressed air, etc.)to the machine(control cabinet)

- Raw material,process material and fuels

- Raw material for test blocks

- Transport and lifting devices

- Auxiliary staff.

The operators of the plant should be present during the installation in order to become familiar with the new machines.
