4KW Colored Glaze Steel Ridge Cap Roll Forming Equipment 3.0T 300 H-High Grade Steel
4KW Colored Glaze Steel Ridge Cap Roll Forming Equipment 3.0T 300 H-High Grade Steel
4KW Colored Glaze Steel Ridge Cap Roll Forming Equipment 3.0T 300 H-High Grade Steel
4KW Colored Glaze Steel Ridge Cap Roll Forming Equipment 3.0T 300 H-High Grade Steel
4KW Colored Glaze Steel Ridge Cap Roll Forming Equipment 3.0T 300 H-High Grade Steel
4KW Colored Glaze Steel Ridge Cap Roll Forming Equipment 3.0T 300 H-High Grade Steel
4KW Colored Glaze Steel Ridge Cap Roll Forming Equipment 3.0T 300 H-High Grade Steel
4KW Colored Glaze Steel Ridge Cap Roll Forming Equipment 3.0T 300 H-High Grade Steel
4KW Colored Glaze Steel Ridge Cap Roll Forming Equipment 3.0T 300 H-High Grade Steel
4KW Colored Glaze Steel Ridge Cap Roll Forming Equipment 3.0T 300 H-High Grade Steel
Specifications
Brand Name :
Sussman
Model Number :
RF
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
60days
Packaging Details :
Film
Voltage :
380V
Power(W) :
4KW
Weight :
About 3.0T
Warranty :
1 years
Description
Product Description

1 Suitable to process Color steel plate
2 Width of the plate 400mm
3 Thickness of the plate 0.3-0.8mm
4 De-coiler Manual one, can load 5 tons raw material
5 Rollers for forming 10 rows
6 Diameter of the roller 70mm
7 Rolling material Carbon Steel 45#
8 Main motor power 3kw
9 Productivity 8-12m/min
10 Cutting method Hydraulic mould cutting
11 Material of the cutting blade Cr12
12 Hydraulic cutting power 3kw
13 Processing precision Within 1.00mm
14 Control system Delta PLC control
15 Side panel of machine 14mm
16 Main structure of the machine 300 H steel
17 Weight About 2.8T
18 Dimensions 5.6*1.0*1.5m
19 Voltage 380V 50Hz 3phases(changeable as needs)
20 Certificate CE/ISO

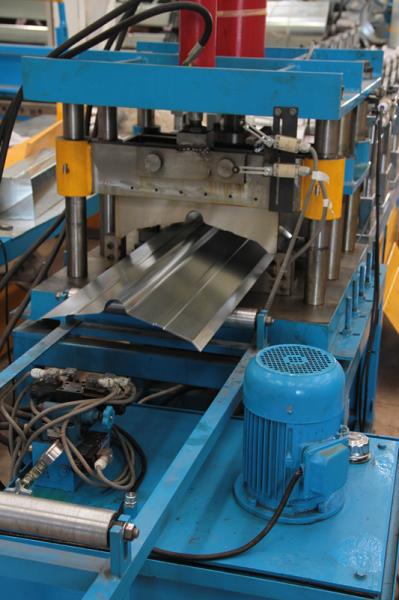

Machine picure

4KW Colored Glaze Steel Ridge Cap Roll Forming Equipment 3.0T 300 H-High Grade Steel4KW Colored Glaze Steel Ridge Cap Roll Forming Equipment 3.0T 300 H-High Grade Steel4KW Colored Glaze Steel Ridge Cap Roll Forming Equipment 3.0T 300 H-High Grade Steel4KW Colored Glaze Steel Ridge Cap Roll Forming Equipment 3.0T 300 H-High Grade Steel4KW Colored Glaze Steel Ridge Cap Roll Forming Equipment 3.0T 300 H-High Grade Steel
