Modular 316 Stainless Steel Wire Rope Mesh Railing System with 40mm Mesh Aperture Webnet Infill
Modular 316 Stainless Steel Wire Rope Mesh Railing System with 40mm Mesh Aperture Webnet Infill
Modular 316 Stainless Steel Wire Rope Mesh Railing System with 40mm Mesh Aperture Webnet Infill
Modular 316 Stainless Steel Wire Rope Mesh Railing System with 40mm Mesh Aperture Webnet Infill
Modular 316 Stainless Steel Wire Rope Mesh Railing System with 40mm Mesh Aperture Webnet Infill
Modular 316 Stainless Steel Wire Rope Mesh Railing System with 40mm Mesh Aperture Webnet Infill
Specifications
Model Number :
Stainless Steel Wire Rope Netting Railing System
Wire rope netting :
with a Ø 1.5 mm rope and a mesh aperture of 40 mm
Price :
contact with us to get the lowest price
Frame size :
900x748mm, 900x973mm, 900x1128mm, 900 × 419 × 419 mm
Delivery Time :
within 7 work days
Installation type :
Surface mounted and Front side install
Posts size :
60x12mm
Supply Ability :
1000 square meters per 30 days
Installation parts :
wire rope netting, posts, Spacers and wall anchors
Distance adjuster :
30mm or 60mm
MOQ :
10 square meters
Packaging Details :
wooden case, could be customized
Wall anchor :
M10x77mm
Name :
Stainless Steel Wire Rope Mesh Infill Railing System
Place of Origin :
Hebei,China
Certification :
ISO9001-2015
Brand Name :
HUIHAOCUSTOM
Description
Stainless Steel Wire Rope Mesh Infill Railing System

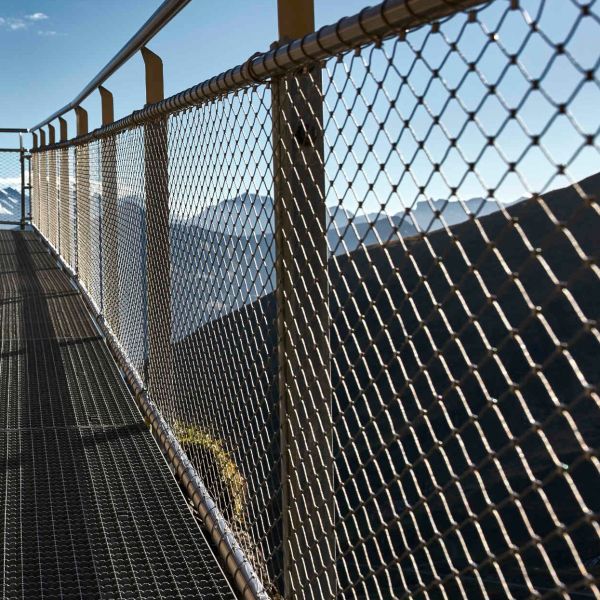

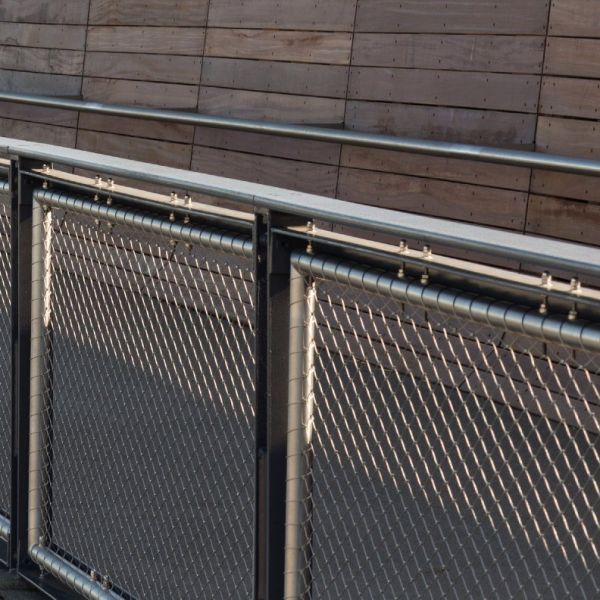

Modular railings offer a stylish, safe, and code compliant system that can complement nearly any design aesthetic. These Stainless Steel Wire Rope Mesh Infill Railing systems meet a range of needs and are ideal for stairs, ramps, walkways, and balconies. Their ability to withstand harsh conditions means they can be used in outdoor as well as indoor applications.
Post Types
We offer two types of posts as reference: one for surface mounted installation and one for front-side installation. Modular Railing can also be installed on custom posts.
  • Post 1 (Surface mounted): 12 mm width, 1000 × 150 × 90 mm
  • Post 2 (Front side install): 12 mm width, 1205 × 170 × 90 mm

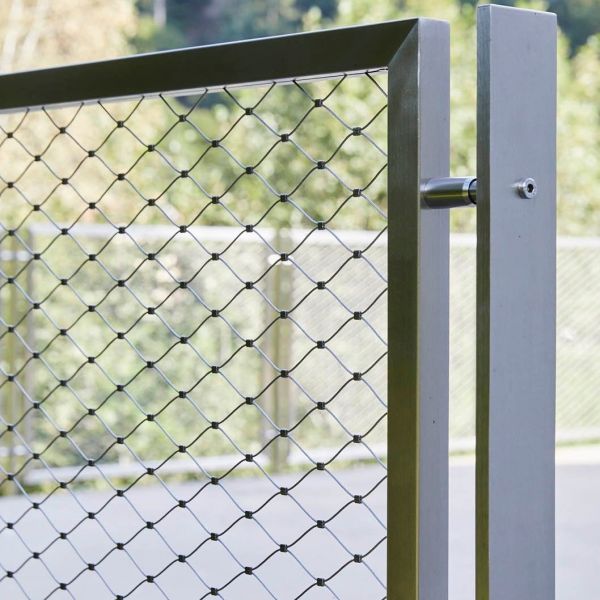

The spacers between post and frame allow you to adjust the railing length, provide positioning assistance and absorb construction tolerances.
Webnet Frame Options
  • Type A: 900 × 1128 mm
  • Type B: 900 × 973 mm
  • Type C: 900 × 748 mm
  • Type L (angular): 900 × 419 × 419 mm
All the frames feature Webnet type H24, with a Ø 1.5 mm rope and a mesh aperture of 40 mm. Webnet Frames allow any railing length from 2800mm.
Technical Specifications
The stainless steel wire rope mesh service life is more than 30 years, close to nature, green and environmentally friendly. We can also customize the rope diameter, mesh size, mesh surface size, etc. according to your requirements.
Wire Rope Structure Broken Force (KN) Rope Dia. (inch) Rope Dia. (mm) Hole Size (mm)
7×197.381/83.2120×208
7×197.381/83.2100×173
7×197.381/83.290×156
7×74.183/322.4100×173
7×74.183/322.490×156
7×74.183/322.480×139
7×74.183/322.470×121
7×73.175/642.0100×173
7×73.175/642.090×156
7×73.175/642.080×139
7×73.175/642.070×121
7×72.171/161.680×139
7×72.171/161.670×121
7×72.171/161.660×104
7×72.171/161.650×87
7×71.223/641.280×139
7×71.223/641.270×121
7×71.223/641.260×104
7×71.223/641.250×87
Service & Support
  • All components are manufactured from 316 stainless steel
  • Free full technical advice is available from our friendly, experienced support team
  • Fast turnaround of quotations
  • Full installation service is available from our experienced team
