Modular Stainless Steel Wire Rope Netting Railing System with 40 mm Mesh Aperture
Modular Stainless Steel Wire Rope Netting Railing System with 40 mm Mesh Aperture
Modular Stainless Steel Wire Rope Netting Railing System with 40 mm Mesh Aperture
Modular Stainless Steel Wire Rope Netting Railing System with 40 mm Mesh Aperture
Specifications
Model Number :
Stainless Steel Wire Rope Netting Railing System
Installation type :
Surface mounted and Front side install
Delivery Time :
within 7 work days
Wire rope netting :
with a Ø 1.5 mm rope and a mesh aperture of 40 mm
Certification :
ISO9001-2015
Installation parts :
wire rope netting, posts, Spacers and wall anchors
Supply Ability :
1000 square meters per 30 days
Wall anchor :
M10x77mm
Price :
contact with us to get the lowest price
Distance adjuster :
30mm or 60mm
MOQ :
10 square meters
Packaging Details :
wooden case, could be customized
Posts size :
60x12mm
Place of Origin :
Hebei,China
Frame size :
900x748mm, 900x973mm, 900x1128mm, 900 × 419 × 419 mm
Brand Name :
HUIHAOCUSTOM
Name :
Stainless Steel Wire Rope Netting Railing System
Description
Modular Stainless Steel Wire Rope Netting Railing System with Webnet Frames

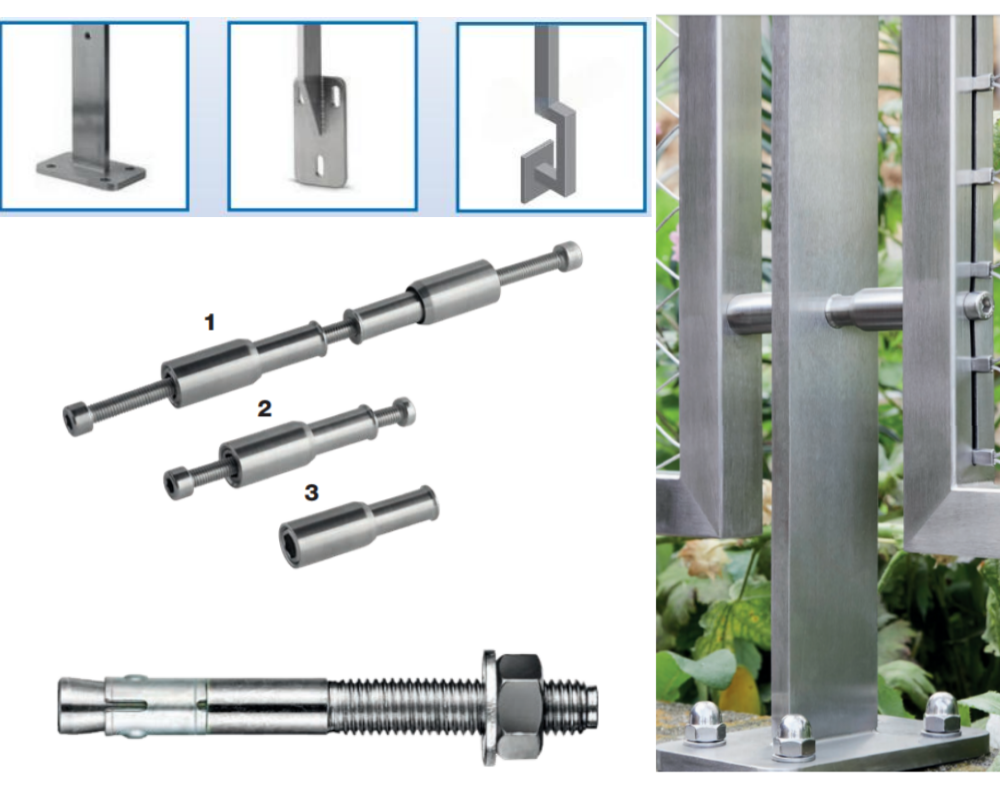

We offer two types of posts as reference: one for surface mounted installation and one for front-side installation. Modular Railing can also be installed on custom posts.
  • Post 1 (Surface mounted): 12 mm width, 1000 × 150 × 90 mm
  • Post 2 (Front side install): 12 mm width, 1205 × 170 × 90 mm

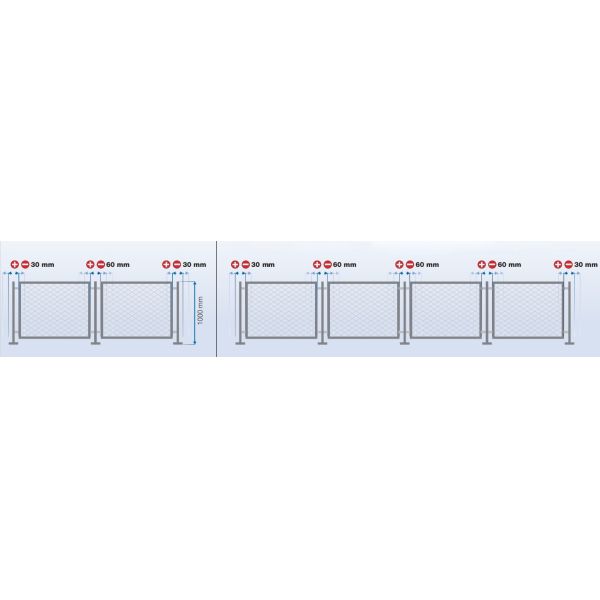

The spacers between post and frame allow you to adjust the railing length, provide positioning assistance and absorb construction tolerances.
Available Webnet Frames
  • Type A: 900 × 1128 mm
  • Type B: 900 × 973 mm
  • Type C: 900 × 748 mm
  • Type L (angular): 900 × 419 × 419 mm
All the frames feature Webnet type H24, with a Ø 1.5 mm rope and a mesh aperture of 40 mm. Webnet Frames allow any railing length from 2800mm.
Specification of Stainless Steel Rope Wire Netting
The service life is more than 30 years, close to nature, green and environmentally friendly. We can also customize the rope diameter, mesh size, mesh surface size, etc. according to your requirements.
Wire Rope Structure Broken Force (KN) Rope Dia. (inch) Rope Dia. (mm) Hole Size (mm)
7×19 7.38 1/8 3.2 120×208
7×19 7.38 1/8 3.2 100×173
7×19 7.38 1/8 3.2 90×156
7×7 4.18 3/32 2.4 100×173
7×7 4.18 3/32 2.4 90×156
7×7 4.18 3/32 2.4 80×139
7×7 4.18 3/32 2.4 70×121
7×7 3.17 5/64 2.0 100×173
7×7 3.17 5/64 2.0 90×156
7×7 3.17 5/64 2.0 80×139
7×7 3.17 5/64 2.0 70×121
7×7 2.17 1/16 1.6 80×139
7×7 2.17 1/16 1.6 70×121
7×7 2.17 1/16 1.6 60×104
7×7 2.17 1/16 1.6 50×87
7×7 1.22 3/64 1.2 80×139
7×7 1.22 3/64 1.2 70×121
7×7 1.22 3/64 1.2 60×104
7×7 1.22 3/64 1.2 50×87
Features of Modular Stainless Steel Wire Rope Netting System
Durability
Manufactured from stainless steel wire rope, the system is strong and resistant to environmental factors, ensuring it remains virtually maintenance-free for the lifetime of the product.
Flexibility
With an inherently flexible design, the system accommodates a wide range of architectural styles and project requirements. Its modularity means it can be customized to fit specific needs.
Ease of Installation
The modular design makes installation fast and straightforward - the perfect solution for professionals looking for an efficient and durable railing system.
Safety
Fully compliant with international safety standards, such as SIA 261 and EN 1990, our system provides a secure, reliable environment for users.
Applications
Our Modular stainless steel wire rope netting Railing system is designed for both new build and refurbishment projects in commercial and residential projects, indoor and out. In residential applications, it is used to enhance and protect balconies, staircases, and decks, providing safety without compromising on design. Similarly, in commercial projects, it is ideal for office buildings, public spaces, and viewing platforms, with its elegant design providing style, safety and durability.
