Thermal Insulation Self Locking Washer Anchoring Discs For Exterior Wall Rock Wool
Thermal Insulation Self Locking Washer Anchoring Discs For Exterior Wall Rock Wool
Thermal Insulation Self Locking Washer Anchoring Discs For Exterior Wall Rock Wool
Thermal Insulation Self Locking Washer Anchoring Discs For Exterior Wall Rock Wool
Thermal Insulation Self Locking Washer Anchoring Discs For Exterior Wall Rock Wool
Thermal Insulation Self Locking Washer Anchoring Discs For Exterior Wall Rock Wool
Specifications
Model Number :
XY-SLW70
Material: :
Stainless Steel
Delivery Time :
12 work days
Packing: :
100pcs Per Bag , Then In Cartons
Certification :
ISO9001-2015
Washer Shape: :
Round
Supply Ability :
500000 pcs per month
Edge Hole: :
10mm Or As Request
Payment Terms :
L/C,D/A,D/P,T/T
Center Hole: :
7mm
MOQ :
30000 pcs
Packaging Details :
Plastic bags +carton +wooden case /pallet
Washer Dia: :
70mm
Highlight: :
70mm Stainless Steel Disc Washers, Stainless Steel Perforated Disc Washers, Insulation Board Disc Washers
Place of Origin :
China HeBei
Washer Thickness: :
0.7mm
Brand Name :
HUIHAOCUSTOM
Name: :
Disc Washers
Description

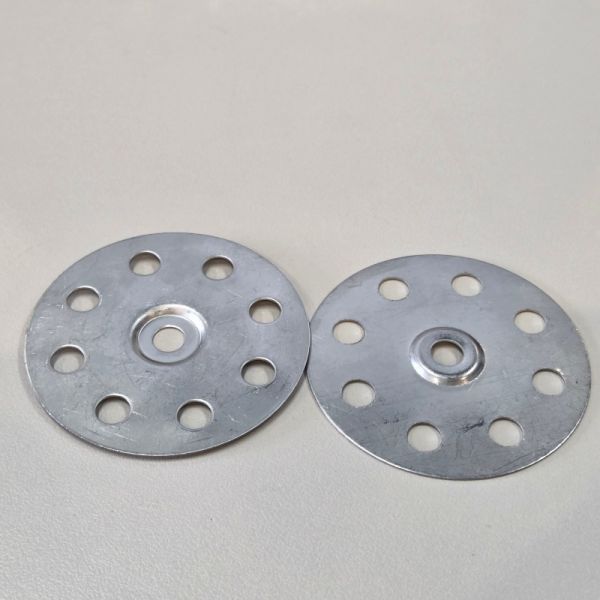

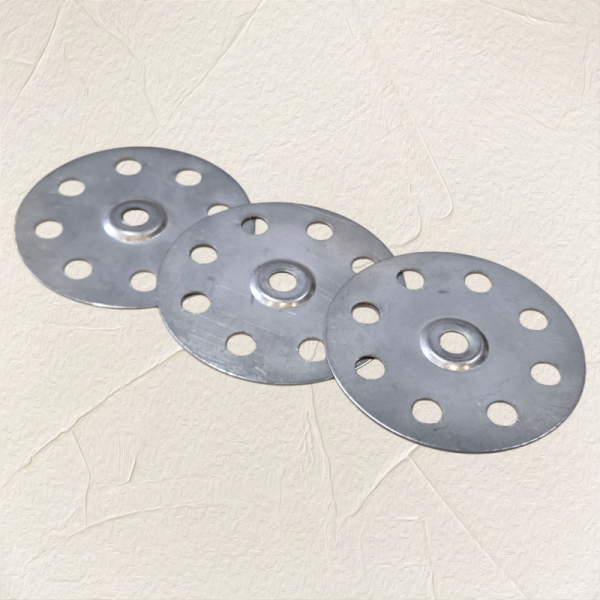

Stainless steel thermal insulation fixing lock plates, anchoring discs for exterior wall rock wool and extruded polystyrene boards

Insulation fixing lock disc (insulation washer) is matching hardware for building thermal insulation. Made of galvanized steel with 8 ventilation holes to drain moisture inside insulation layers. Large circular surface disperses fastening force to prevent breaking rock wool, XPS boards and waterproof rolls. Galvanized steel and 304 stainless steel options available, widely used in external wall insulation, steel roof and pipeline insulation projects.

Specifications of Thermal Insulation Locking Pieces

Thermal Insulation Self Locking Washer Anchoring Discs For Exterior Wall Rock Wool

Name Dics washers, insulation frame washers, perforated disc washers
Material Stainless steel or galvanized steel
Thickness 0.7mm
Washer diameter 70mm
Center hole dia 7mm or meet with the screen/insulation anchors
Packing 100pcs per bag
NOTE The size also could be customized for large order .

Thermal Insulation Self Locking Washer Anchoring Discs For Exterior Wall Rock Wool

Item: 35mm Metal Fixing Washer Discs For Tile Backer Boards

Material: Galvanized steel or stainless steel

Size: 35mm

Center Hole: 5mm

Thickness: 0.7mm
Thermal Insulation Self Locking Washer Anchoring Discs For Exterior Wall Rock Wool

Item: 32mm 4-Claw Tile Backer Board Washer Discs

Material: Galvanized steel or stainless steel

Size: 32mm

Center Hole: 5mm

Thickness: 0.6mm

Product Applications and Features

Thermal Insulation Self Locking Washer Anchoring Discs For Exterior Wall Rock Wool

Firmer, good durability, high pressure, anti-corrosion, moisture-proof, no deformation, size support customization

Thermal Insulation Self Locking Washer Anchoring Discs For Exterior Wall Rock Wool

Thermal Insulation Self Locking Washer Anchoring Discs For Exterior Wall Rock Wool
