4.0*120mm Black Nylon Solar Panel Bird Guard Fastener Clips
4.0*120mm Black Nylon Solar Panel Bird Guard Fastener Clips
4.0*120mm Black Nylon Solar Panel Bird Guard Fastener Clips
4.0*120mm Black Nylon Solar Panel Bird Guard Fastener Clips
4.0*120mm Black Nylon Solar Panel Bird Guard Fastener Clips
4.0*120mm Black Nylon Solar Panel Bird Guard Fastener Clips
Specifications
Supply Ability :
500000 sets per 30 days
color :
Black
Brand Name :
HUIHAOCUSTOM
Name :
Nylon Solar Panel Bird Guard Fastener Clips
Model Number :
Nylon Solar Panel Clips
Factory: :
Xiangyi Metal Factory
Certification :
ISO9001-2015
Usage: :
Fasten The Solar Panel Mesh
MOQ :
10000 sets
Delivery Time :
within 20 work days
J Hook Size :
4mm*120mm
Highlight :
Bird Guard Fastener, Solar Panel Bird Guard Fastener, solar panel stainless steel clips
Payment Terms :
T/T,D/P
Self Locking Washers: :
33mm
Price :
contact with us to get the lowest price
Self Locking Washers Material: :
Nylon
Place of Origin :
Hebei,China
J Hook Material: :
Nylon
Packaging Details :
PP bag plus carton（could be customized）
Description

4.0*120mm Black nylon solar panel Bird Guard Fastener Clips


Product Introduction

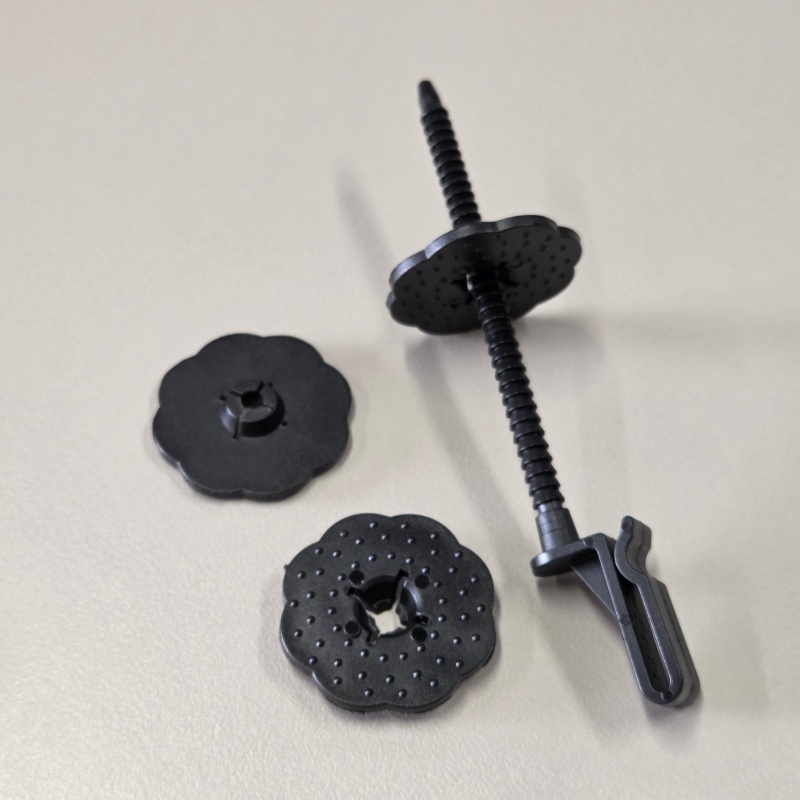

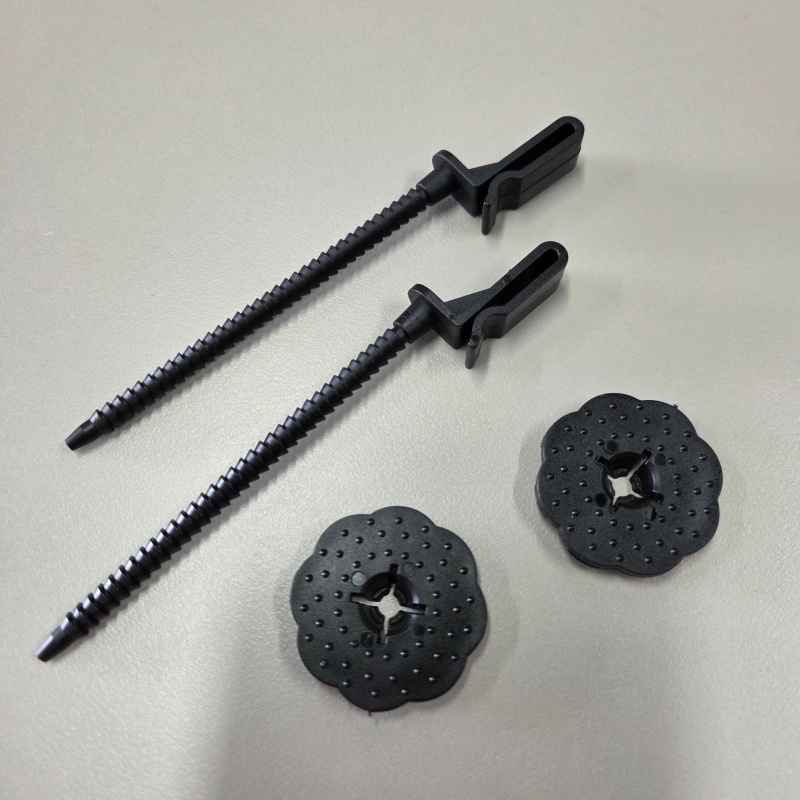

This is a nylon hook nail for solar photovoltaic bird-proof nets, specifically designed for fixing bird-proof nets in photovoltaic power stations. It consists of three parts: self-tapping screws, plum blossom washers, and nylon hook seats. The entire set of accessories is used in conjunction.

•Hook base: Made of high‑strength nylon and equipped with a buckle‑type structure, it is used to hook the edge of the bird‑proof net for easy assembly and disassembly.


•Plum‑blossom washer: a petal‑shaped anti‑slip plastic washer that enlarges the contact area, compresses the mesh fabric, prevents mesh hole tearing, and delivers anti‑slip and anti‑loosening performance.


•Self‑tapping screws: black‑coated self‑tapping screws that can be screwed directly into photovoltaic color‑steel tiles / roof surfaces without pre‑drilling holes.



Name

Black nylon Solar Panel Mesh Clips For Pest Control

Contain

J hook and self locking washers

J hook material

nylon

J hook size

4*120mm

Washer material

nylon

Washer size

33mm


Noted

•Made of modified nylon engineering‑plastic, black, UV‑resistant, capable of withstanding sun and rain, rust‑proof, and suitable for long‑term outdoor rooftop application


• Nylon J-Hook can easily be attached to the solar panel frames.


• Nylon J-Hook can easily be trimmed or bent after assembly.


• 33mm Washers can firmly lock the nylon J hook to hold the bird proofing welded wire mesh to the solar panel frame to prevent birds, pigeons, squirrels and rodents from damaging the interconnection wires under the solar panels.

4.0*120mm Black Nylon Solar Panel Bird Guard Fastener Clips

4.0*120mm Black Nylon Solar Panel Bird Guard Fastener Clips

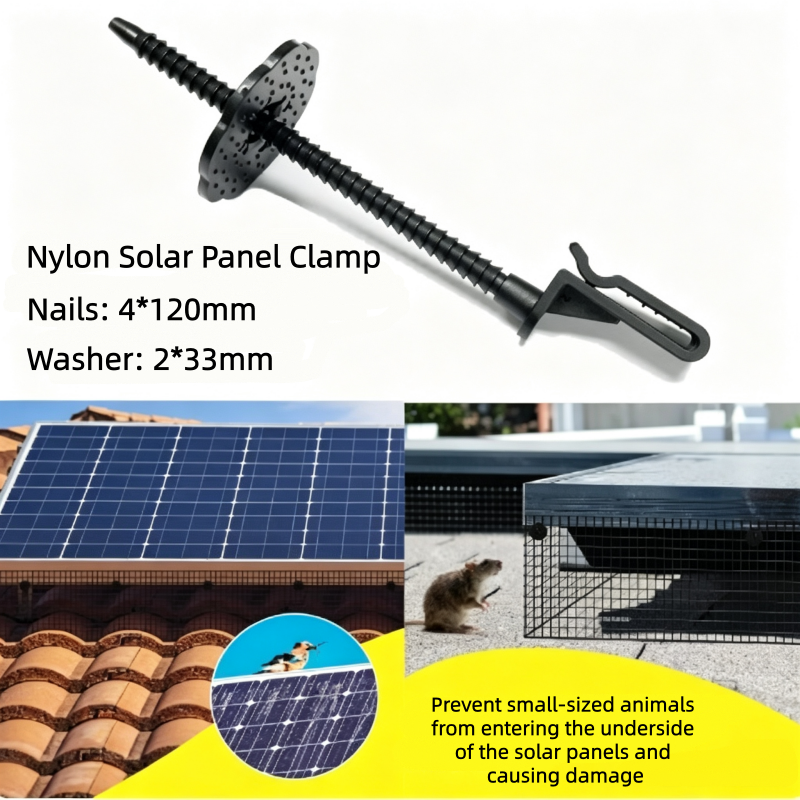

Applications Of Black nylon Solar Panel Mesh Clips Used For Pest Control


> The QTY needed for one solar panel: A typical solar panel is approximately 1.6m tall and 1m wide, on a typical panel one should use 3 clips on each long edge and 2 on each short edge.

> The QTY needed for one roll: usually the length of solar panel roll is 30m, each roll is allocated with 60 clips.

> The QTY needed for a standard 3kW system (2 rows of 6 panels each - 12 panels total installed in a portrait orientation) : 35 J hooks with self locking washers.
4.0*120mm Black Nylon Solar Panel Bird Guard Fastener Clips


4.0*120mm Black Nylon Solar Panel Bird Guard Fastener Clips

4.0*120mm Black Nylon Solar Panel Bird Guard Fastener Clips

4.0*120mm Black Nylon Solar Panel Bird Guard Fastener Clips
