120mm Black Nylon Solar Panel Bird Guard Fastener Clips
120mm Black Nylon Solar Panel Bird Guard Fastener Clips
120mm Black Nylon Solar Panel Bird Guard Fastener Clips
120mm Black Nylon Solar Panel Bird Guard Fastener Clips
120mm Black Nylon Solar Panel Bird Guard Fastener Clips
120mm Black Nylon Solar Panel Bird Guard Fastener Clips
120mm Black Nylon Solar Panel Bird Guard Fastener Clips
120mm Black Nylon Solar Panel Bird Guard Fastener Clips
Specifications
Supply Ability :
500000 sets per 30 days
color :
Black
Model Number :
Nylon Solar Panel Clips
Factory: :
Xiangyi Metal Factory
Price :
contact with us to get the lowest price
Self Locking Washers Material: :
Nylon
Certification :
ISO9001-2015
Usage: :
Fasten The Solar Panel Mesh
MOQ :
10000 sets
Delivery Time :
within 20 work days
J Hook Size :
4mm*120mm
Highlight :
Bird Guard Fastener, Solar Panel Bird Guard Fastener, solar panel stainless steel clips
Payment Terms :
T/T,D/P
Self Locking Washers: :
33mm
Brand Name :
HUIHAOCUSTOM
Name :
Nylon Solar Panel Bird Guard Fastener Clips
Place of Origin :
Hebei,China
J Hook Material: :
Nylon
Packaging Details :
PP bag plus carton（could be customized）
Description

120mm Black nylon solar panel Bird Guard Fastener Clips


Product Introduction

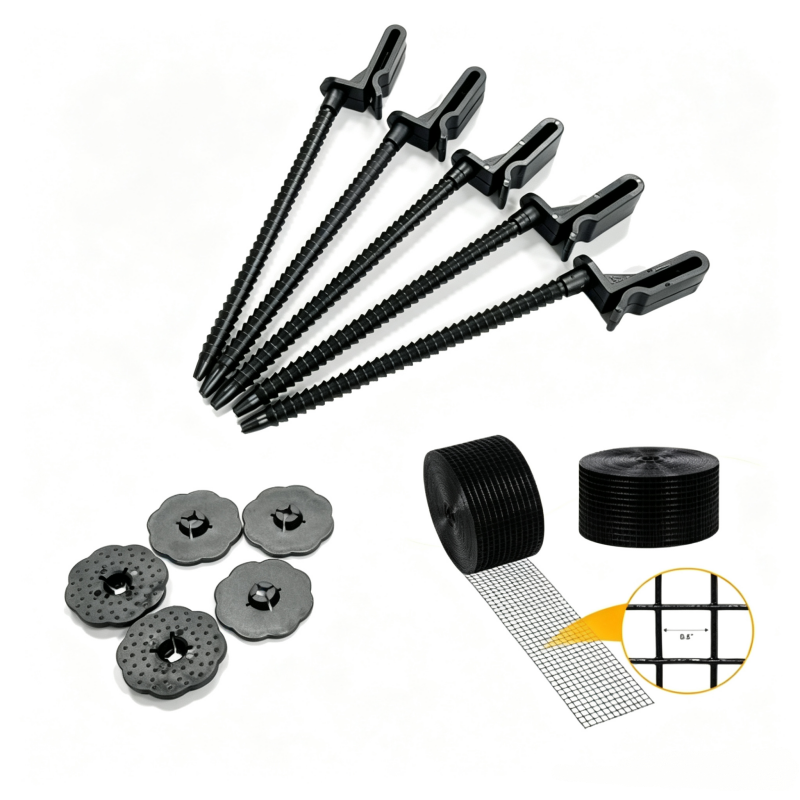

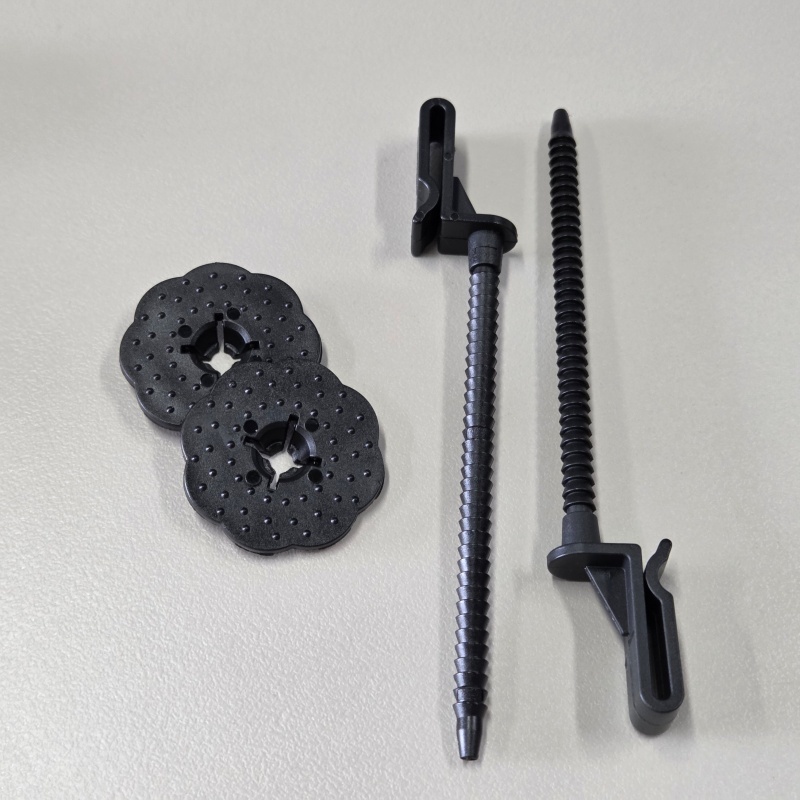

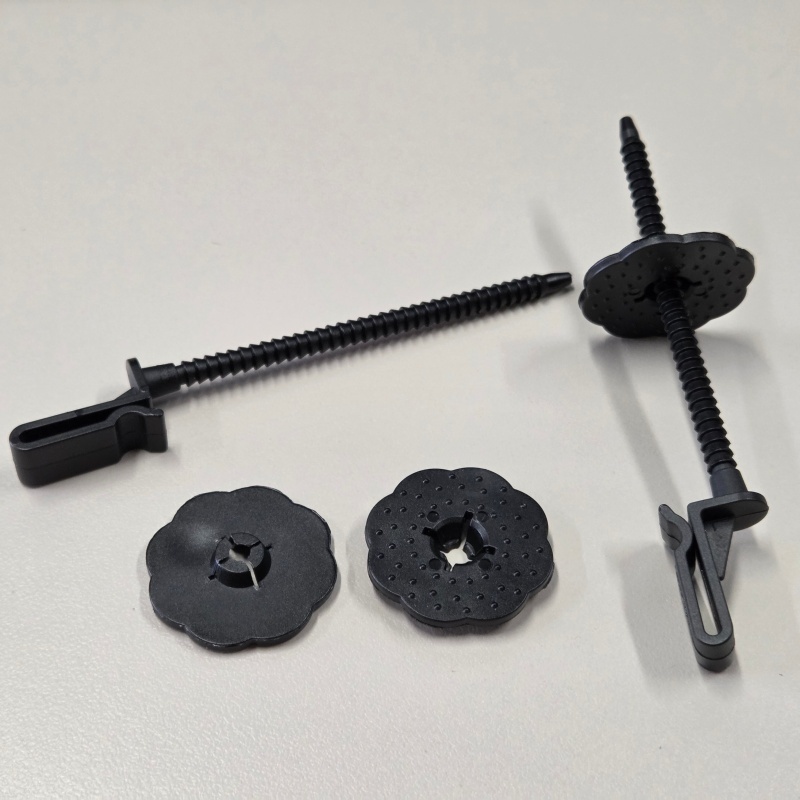

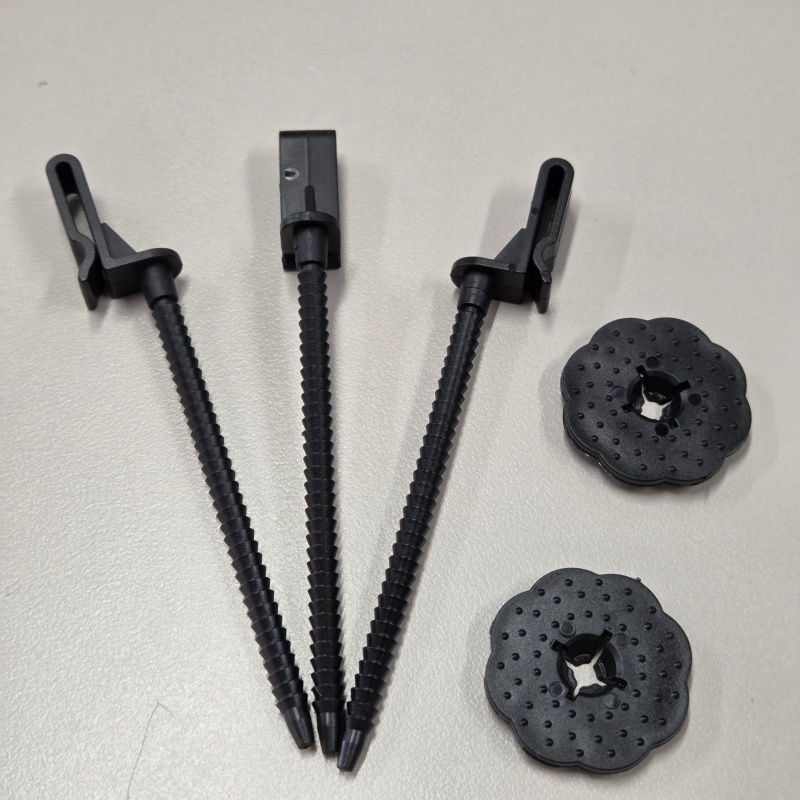

This is a nylon hook nail for solar photovoltaic bird-proof nets, specifically designed for fixing bird-proof nets in photovoltaic power stations. It consists of three parts: self-tapping screws, plum blossom washers, and nylon hook seats. The entire set of accessories is used in conjunction.


1.Material: modified‑nylon engineering plastic, black UV‑resistant, capable of withstanding sun and rain, rust‑proof, suitable for long‑term outdoor rooftop application

2.The hook and nail body: Self-tapping long screw, the extended rod body is suitable for tiled roofs, and the head is equipped with an elastic snap-on hook that directly hooks onto the mesh of the bird-proof net

3.Plum blossom lock plate: Petal-shaped anti-slip lock plate. After being nailed in, it automatically locks to prevent the mesh from loosening and shifting, increase the contact area under pressure, and avoid the mesh from being torn


Parameters of Black‑Nylon Solar Panel Net Clips


Name

Black nylon Solar Panel Mesh Clips For Pest Control

Contain

J hook and self locking washers

J hook material

nylon

J hook size

4*120mm

Washer material

nylon

Washer size

33mm


Noted

•Made of modified nylon engineering‑plastic, black, UV‑resistant, capable of withstanding sun and rain, rust‑proof, and suitable for long‑term outdoor rooftop application


• Nylon J-Hook can easily be attached to the solar panel frames.


• Nylon J-Hook can easily be trimmed or bent after assembly.


• 33mm Washers can firmly lock the nylon J hook to hold the bird proofing welded wire mesh to the solar panel frame to prevent birds, pigeons, squirrels and rodents from damaging the interconnection wires under the solar panels.

120mm Black Nylon Solar Panel Bird Guard Fastener Clips

120mm Black Nylon Solar Panel Bird Guard Fastener Clips



Applications Of Black nylon Solar Panel Mesh Clips Used For Pest Control


> The QTY needed for one solar panel: A typical solar panel is approximately 1.6m tall and 1m wide, on a typical panel one should use 3 clips on each long edge and 2 on each short edge.

> The QTY needed for one roll: usually the length of solar panel roll is 30m, each roll is allocated with 60 clips.

> The QTY needed for a standard 3kW system (2 rows of 6 panels each - 12 panels total installed in a portrait orientation) : 35 J hooks with self locking washers.
120mm Black Nylon Solar Panel Bird Guard Fastener Clips


120mm Black Nylon Solar Panel Bird Guard Fastener Clips

120mm Black Nylon Solar Panel Bird Guard Fastener Clips

120mm Black Nylon Solar Panel Bird Guard Fastener Clips
