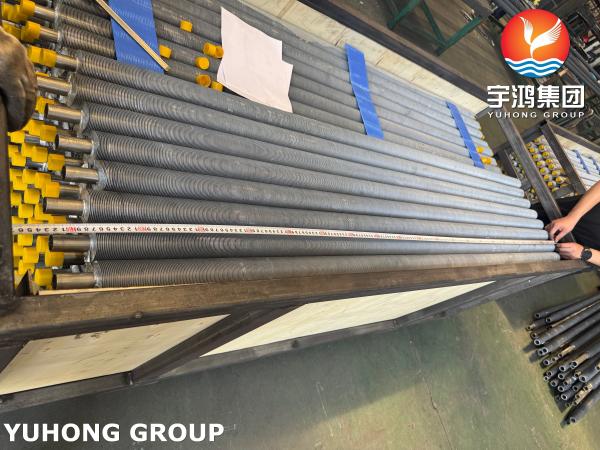

EN 10217-7 1.4301 Extruded Finned Tubes For Heaters And Coolers
EN 10217-7 1.4301 Extruded Finned Tubes For Heaters And Coolers
EN 10217-7 1.4301 Extruded Finned Tubes For Heaters And Coolers
EN 10217-7 1.4301 Extruded Finned Tubes For Heaters And Coolers
EN 10217-7 1.4301 Extruded Finned Tubes For Heaters And Coolers
EN 10217-7 1.4301 Extruded Finned Tubes For Heaters And Coolers
EN 10217-7 1.4301 Extruded Finned Tubes For Heaters And Coolers
EN 10217-7 1.4301 Extruded Finned Tubes For Heaters And Coolers
Specifications
Brand Name :
Yuhong
Model Number :
EN 10217-7 1.4301 Extruded Finned Tubes
Certification :
ABS, BV, DNV, CCS, LR
Place of Origin :
China
MOQ :
Depend the size of finned tubes, 50-100PC
Price :
Negotiable
Payment Terms :
TT, LC
Supply Ability :
1000 tons/month
Delivery Time :
30-60 days
Packaging Details :
Ply-wooden Case With Iron Frame
Product :
Fin Tubes or Finned Tube
Finned Tube Type :
Extruded Finned Tubes
Extruded Finned Tubes Standard :
EN 10217-7
Extruded Finned Tubes Material :
1.4301
Extruded Finned Tubes Length :
According to clients' need
Extruded Finned Tubes Size and details :
According to clients' need
Extruded Finned Tubes Use :
Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators / Air cooler, etc
Extruded Finned Tubes Packing :
Ply-wooden Case With Iron Frame
Description

EN 10217-7 1.4301 Extruded Fin Tubes For Heaters And Coolers

EN 10217-7 is a European Standard that specifies the technical delivery conditions for welded stainless steel tubes intended for pressure purposes. 1.4301 is the material designation within that standard, corresponding to the common austenitic stainless steel grade AISI 304.

Grade 1.4301 have these good properties:

1.good corrosion resistance

2.excellent formability and weldability

3.high toughness

Chemical Composition (%) max

Grade C Cr NI
1.4301 ≤0.07 17.0-19.0 8.0-10.5

Mechanical Properties

Grade Tensile Strength Yield Strength min Elongation in 2" or 50mm min
1.4301 520-670 MPa 210 MPa 45%

Definition

The extruded fin process creates a large surface area of highly conductive aluminum, dramatically improving heat transfer from the external gas to the internal fluid. The bond is excellent, minimizing thermal contact resistance.The general materials of base tubes about the extruded finned tube are carbon steel, copper, alloy, stainless steel ; the general materials of fins about the extruded finned tube are copper, aluminum 1060/1070, aluminum alloy 6063/6061.

Therefore, it is generally divided into four categories: steel aluminum composite finned tubes; copper aluminum composite finned tubes; pure aluminum composite finned tubes, pure copper composite finned tube.

EN 10217-7 1.4301 Extruded Finned Tubes For Heaters And Coolers

Key Applications

Corrosive Exhaust Gas Heat Recovery

Chemical and Petrochemical Process Heaters & Coolers

High-Pressure Gas Cooling after Compression

Specialized HVAC & Energy Systems

EN 10217-7 1.4301 Extruded Finned Tubes For Heaters And Coolers
