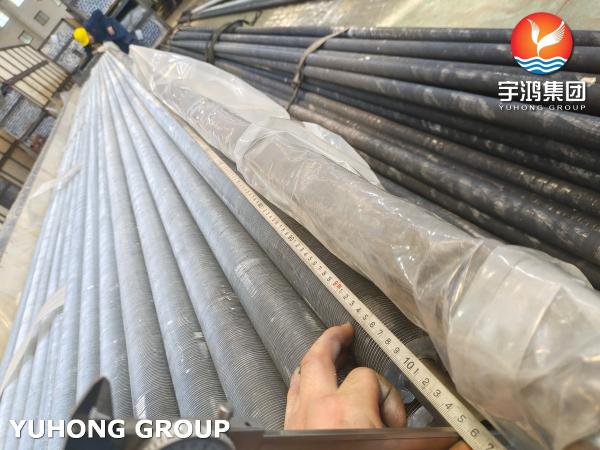

Extruded Fin Tube ASTM A312 TP304 For Heat Exchangers Boilers
Extruded Fin Tube ASTM A312 TP304 For Heat Exchangers Boilers
Extruded Fin Tube ASTM A312 TP304 For Heat Exchangers Boilers
Extruded Fin Tube ASTM A312 TP304 For Heat Exchangers Boilers
Extruded Fin Tube ASTM A312 TP304 For Heat Exchangers Boilers
Extruded Fin Tube ASTM A312 TP304 For Heat Exchangers Boilers
Specifications
Brand Name :
Yuhong
Model Number :
ASTM A312 TP304
Certification :
ABS, BV, DNV, CCS, LR
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
TT, LC
Supply Ability :
10000 Tons/Month
Delivery Time :
5 - 90 Days
Packaging Details :
Ply - Wooden Case + Iron Frame
Base Tube Material Standard :
ASTM A312,ASME SA312
Base Tube Material Grade: :
TP304,TP304L,TP304H,TP321
Fin Type :
Extruded Fin Tube
Fin Material :
Aluminum , Copper , Stainless Steel , Carbon Steel
Description

Extruded Fin Tube,ASTM A312 TP304 For Heat Exchanger

ASTM A312 specifies requirements for the chemical composition, mechanical properties, and manufacturing processes, ensuring high-quality stainless steel pipes.ASTM A312 materials can maintain strength and integrity at elevated temperatures, making them ideal for high-temperature applications such as boilers and heat exchangers.

TP304L has excellent resistance to a wide range of corrosive environments, making it suitable for applications in chemical processing and marine environments.The material maintains good strength and stability at elevated temperatures, which is essential for heat exchange applications and P304L is easily weldable, allowing for effective fabrication of complex geometries, which is beneficial for manufacturing fin tubes.

Chemical Composition:

ASTM A312 TP304 Chemical Composition (%)
C Si Mn P S Cr Ni Mo TI Nb Cu Al V Co Fe Result
≤0.08% ≤0.75% ≤2.00% ≤0.045% ≤0.030% 18.0%-20% / / / / / / / / /

Fin Tube type:

Yuhong Group Fin Tube Specification
Type Description Base tube Fin specification (mm)
O.D. (mm) Fin pitch Fin height Fin thick
Embedded G-type fin tube 16-63 2.1-5 <17 ~0.4
Extruded Single metal combined metal 8-51 1.6-10 <17 0.2-0.4
Low fin tube t-type fin tube 10-38 0.6-2 <1.6 ~0.3
Bamboo tube corrugated tube 16-51 8~30 <2.5 /
Wound L/KL/LLtype fin tube 16-63 2.1-5 <17 ~0.4
String String fin tube 25-38 2.1-3.5 <20 0.2-0.5
U-type U-type tube 16-38 / / /
Welding HF-welding fin tube 16-219 3~25 5~30 0.8-3
H/HH type fin tube 25-63 8~30 <200 1.5-3.5
Studded fin tube 25-219 8~30 5~30 φ5-2

Applications:
  • Heat Exchangers
  • Condensers
  • Boilers
  • Chillers
  • Radiators
  • Evaporators
  • Cooling Towers
  • Chemical Process Equipment
