Q355 Grade Workshop Steel Structure Pre Engineering Metal Buildings Custom Designed
Q355 Grade Workshop Steel Structure Pre Engineering Metal Buildings Custom Designed
Q355 Grade Workshop Steel Structure Pre Engineering Metal Buildings Custom Designed
Q355 Grade Workshop Steel Structure Pre Engineering Metal Buildings Custom Designed
Q355 Grade Workshop Steel Structure Pre Engineering Metal Buildings Custom Designed
Q355 Grade Workshop Steel Structure Pre Engineering Metal Buildings Custom Designed
Q355 Grade Workshop Steel Structure Pre Engineering Metal Buildings Custom Designed
Q355 Grade Workshop Steel Structure Pre Engineering Metal Buildings Custom Designed
Specifications
Brand Name :
Lanjing
Model Number :
LJ-Workshop
Place of Origin :
China
MOQ :
1000sqm
Price :
35-55$/sqm
Payment Terms :
TT
Supply Ability :
40,000 Tons per year
Delivery Time :
30-45 days
Packaging Details :
Single Item
Keyword :
Light Frame Steel Construction
Main frame :
Light Steel Q355 Q235
Window :
Aluminum Alloy Window
Door :
Sliding Door, Rolling Door
Wall & Roof :
Sandwich panel; color steel sheet
Secondary Structure :
Purlin; Brace; Knee Brace etc
Cladding :
Steel color sheet
Column & Beam Connection :
High Strength Bolt
Accessories :
Skylight Belt; Ventilator; Downspout;Gutter etc
Drawing Design :
Drawing Design
Color :
Customer's Requirement
Roof Cladding :
Corrugated Steel Sheet/Sandwich Panel
Certifications :
ISO 9001, CE
Sail Finishing :
PVDF/PTFE, Pvc Coated
Crane Capacity :
5Tons*2 Pcs
Structure Type :
Light Steel Structre
Frame :
Weld steel structure frame
material :
steel
Price Term :
FOB CIF CFR EXW
Design Software :
Auto CAD,Teckla
Bracing :
Round Bar/Angle Steel/Steel Rod
Lifespan :
More than 50 years
Downpipe :
UPVC
Life Time :
50 Years
Description

Pre-engineering Prefab Steel Structure Workshop Prefabricated Steel Structure Building

Product Description

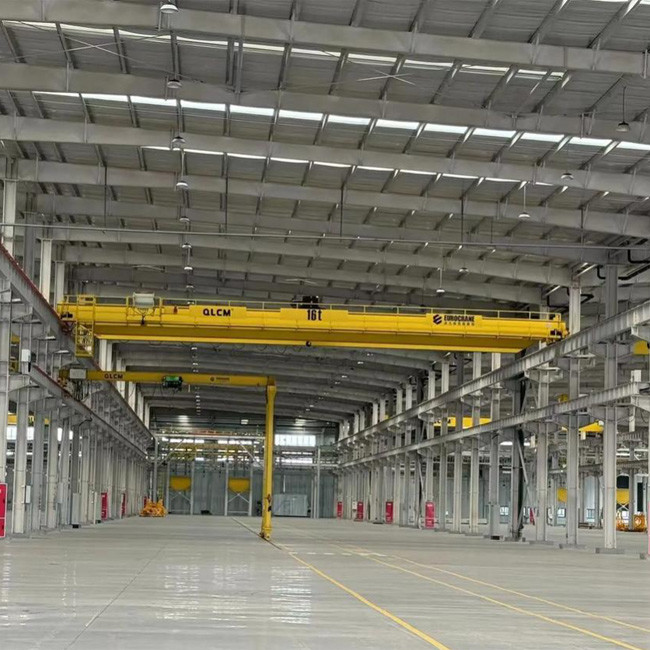

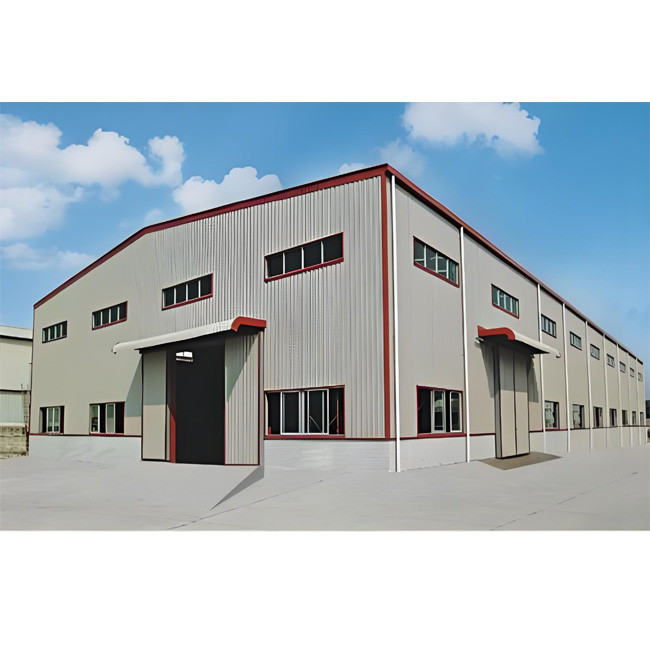

Steel Structure Workshop is a metal workshop built with high-strength steel, delivering outstanding insulation and durability. It features a portal frame design and offers optional insulation to match customer specifications. The walls and roofs are made from sandwich panels or color steel sheets, and the purlins are constructed from C-section or Z-section steel. Doors can be either roll-up or sliding.

Advatange

Large Span: Bridges expansive spaces effortlessly, reducing the need for multiple supports.

Versatility: Highly adaptable, fitting seamlessly into various architectural designs.

Cost-Effective: Offers significant savings in both initial construction and long-term maintenance costs.

Eco-Friendly: Made from recyclable steel, our products champion environmental sustainability and minimal ecological impact.

Specification

Item Materials
Main steel frame column and beam Q235, Q355 steel, paint or galvanization
wind resistant column Q235, Q355 steel, paint or galvanization
Secondary bracing Roof purlin Q235B C/Z section galvanized steel
Wall purlin Q235B C/Z section galvanized steel
Tie bar Q235,φ89*3 round steel pipe
knee brace angle steel,Q235,L50*4
roof horizontal bracing φ20,Q235B steel bar, paint or galvanized
column vertical bracing φ20,Q235B steel bar, paint or galvanized
casing pipe φ32*2.0,Q235 steel pipe
Pulling bar Φ10 round bar Q235
Roof and wall Wall and roof panel corrugated steel sheet/sandwich panel
Protecting system gutter color steel sheet/galvanized steel/stainless steel
Trim and flashing color steel sheet
downspout PVC
self tapping screw
Fastener system Anchor bolts Q235 steel
High strength bolt The Specifications shall be determined according to the design of steel structure.
Normal bolt
Nuts
Window and door Window Aluminium windows
Door According to requirement to choose,can be EPS door,windproof door,high-speed roll-up door,industrial sliding door etc.
