440C Stainless Steel Ball Bearings
440C Stainless Steel Ball Bearings
440C Stainless Steel Ball Bearings
440C Stainless Steel Ball Bearings
Specifications
Brand Name :
SGC
Model Number :
SS 6707-2RS
Certification :
RoHS
Place of Origin :
Fuzhou, China
MOQ :
500 PCS
Price :
Get The Latest Price
Payment Terms :
D/P, L/C, T/T, Western Union
Supply Ability :
50000PCS per month
Delivery Time :
6-45 days upon receipt of official order
Packaging Details :
plastic tube+box, or according to requested by clients
Materials :
AISI440C
Bore Size :
35 mm
OD :
44 mm
Width :
5 mm
Accuracy :
ABEC-1, ABEC-3
Noise and Vibration :
Z1V1
Clearance :
0.008-0.025 mm
Seals :
NBR, Optional Blue or Black
Retainer :
304 Stainless Steel, Rivet Type
Lubrication :
Shell Alivania R2, ESSO Beacon 325, Chevron SRI-2, Mobil 28, Kluber, Kyodo Yushi, etc.
Hardness :
HRC58-62
Surface :
harden polished
Package :
Neutral + Cardboard Box + Wooden
Application :
Precision Machinery, Grinding Media, Motorcycle, Electric Hand Tools, Bicycles, etc..
Feature :
Ground
Sample :
by free
Certifications :
ISO, ROHS
Service :
Customized Service,OEM /After-Sales Service
Description

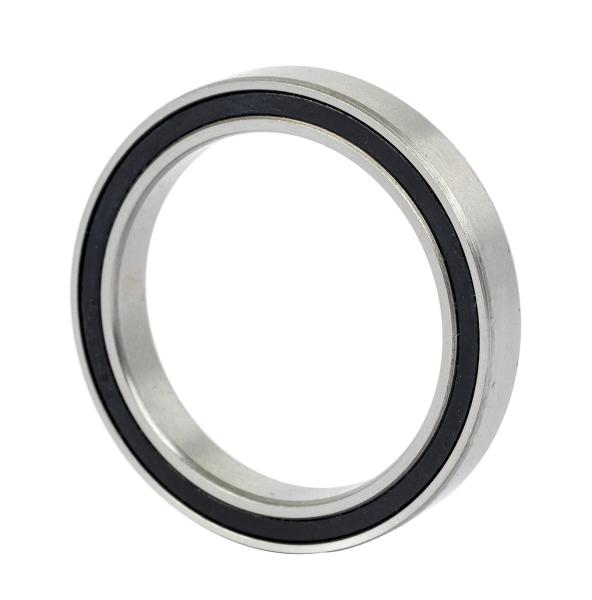

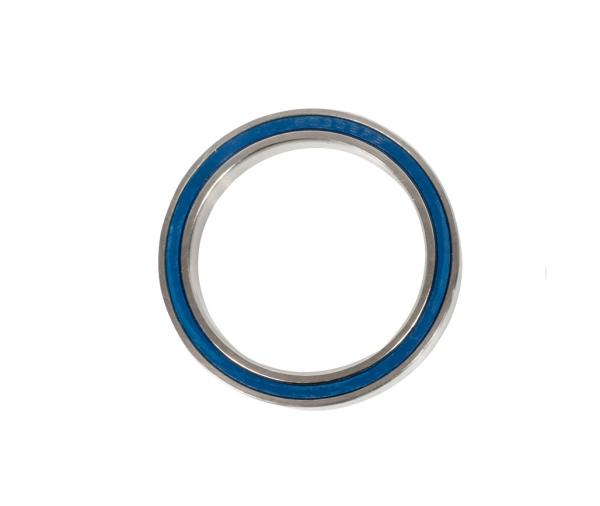

SS6707-2RS Bearing 440C Stainless Steel Extra Thin Ball Bearing Sealed with NBR

Light Contact Seals Type-Thin Section

Model No.: 6707-2RS

Races: AISI440C, HRC58-62 Hardness

Balls: AISI440C, 25 balls

Retainer:304 Stainless Steel

Bondary Diamensions: 35*44*5mm

Applications:

The bearings are widely used on ocean engineering equipment and ship, food processing machinery, medical equipment, cryogenic engineering, automobile, motorcycle, electric tools, high-speed motor, household appliances and other industries.

Lubrications:

Before SGC bearings leave factory,the open bearing is filled with meter anti-rust oil only;while the shielded bearing has been filled with general bearing grease,which makes it suitable for light and medium load as well as low and medium speed applications, with a working temperature ranging from -30℃～100℃.If the bearings are applied beyond the above conditions, other special grease or lubricating methods shall be employed.


Bearing No.
Boundary Dimensions(mm)
d(mm) D(mm) B(mm) Chamfer rsmin(mm)
SS6700 10 15 3 0.1
SS6700 ZZ 10 15 4 0.1
SS6701 12 18 4 0.2
SS6702 15 21 4 0.2
SS6703 17 23 4 0.2
SS6704 20 27 4 0.2
SS6705 25 32 4 0.2
SS6706 30 37 4 0.2
SS6707 35 44 5 0.3
SS6708 40 50 6 0.3
SS6709 45 55 6 0.3
SS6710 50 62 6 0.3
SS6711 55 68 7 0.3
SS6712 60 75 7 0.3

Company Brand

Designation Dropping tem. Penetration Woring Tem. Remarks
Shell Alivania RL2 185 265-295 -35~120 General purpose
Alivania RL3 185 220-250 -35~135
Alivania RA 180 250-275 -25~100
Alivania EP1 180 310-340 -25~110
Alivania EP2 185 265-295 -25~110
Darina 2 250 265-295 -25~150 high Tem. service
Darina EP2 250 265-295 -25~150
Dolium R2 250 265-295 -35~150 corrosion resistnat
Esso Andok C 260 190-210 -30~120 General purpose
Andok 260 190 204-260 -40~120
Beacon 325 190 255-280 -54~120 low Tem. service
Chevron SRI-2 240 255-280 -30~120 water resistnat
Mobil Moilux 2 190 265-290 -10~110 General purpose
Mobil 22 192 260-274 -40~120
Mobil 28 260 265-295 -55~175 wide range Tem. service
Mobil 48 260 240-270 -60~170 high Tem. service
Kluber Isoflex LDS 18 190 255-280 -50~110 low Tem. service
Isoflex NBU 15 250 255-280 -30~120 General purpose
Kyodo Yushi Multemp SRL 185 225-245 -40~145 low torque service
Multemp PS2 190 250-275 -50~110 low Tem. service
Multemp ET150 260 255-280 -10~160 　
China Hangu Hangu 2 198 265-295 -10~130 low noise service
