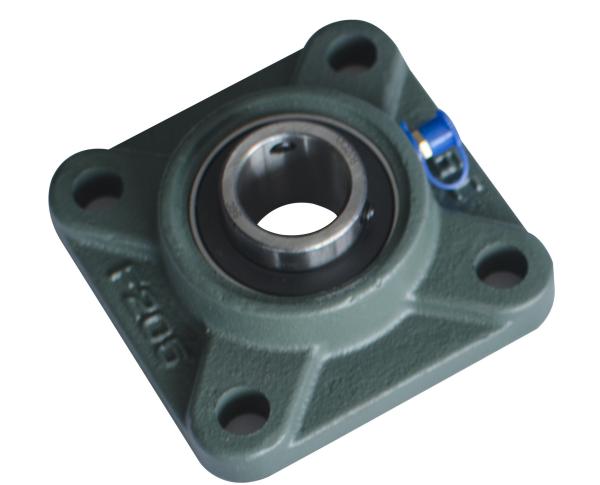

Square Flanged UCF300 Cast Iron Pillow Blocks
Square Flanged UCF300 Cast Iron Pillow Blocks
Square Flanged UCF300 Cast Iron Pillow Blocks
Square Flanged UCF300 Cast Iron Pillow Blocks
Specifications
Brand Name :
SGC
Model Number :
UCF300
Place of Origin :
Fuzhou, China
MOQ :
100 PCS
Price :
Get the latest price
Payment Terms :
D/P, L/C, T/T, Western Union
Supply Ability :
100000PCS per month
Delivery Time :
45 days upon receipt of official order
Packaging Details :
1*1 Plastic Bag+Individual Box+Outer Carton+Pallet
Ball Bearing Insert :
GCr15 Chrome Steel
Hardness :
HRC58-62
Precision Rates :
ABEC-1, ABEC-3
Vibration :
Z1, Z1V1, Z2V2
Clearance :
C0, C2, C3
Shaft Dia :
25mm~140mm, 7/8" ~ 4" Inch
Mounting Block :
High Grade Cast Iron
Type :
F Type
Color of Block :
Green
Oil Nipple :
Brass
Package :
1*1 Plastic Bag+Individual Box+Outer Carton
Service :
OEM or Customized Drawings is Available
Sample :
Free
Description

Four Bolt Holes Flange Bearing Units with Square Mounted Block Set Screw Type UCF300

Set Screw Type-Metric, Inch

Standard duty pillow & mounting blocks that feature a cast iron housing with both set screw or locking collar design.
The dual seal construction ball bearing inserts are available for these mounting and pillow blocks.

Features:

• Cast Iron Housing
• Solid Base
• Dual Seal Type

Applications:

The bearing units can operate satisfactorily under hard working conditions, especially for machines operated in dusty or muddy surroundings, widely used used in agricultural machinery, construction machinery, textile machinery, foodstuff processing machinery, and conveying devices, etc..


Uint No.


Shaft Dia
d
Boundary Dimensions(mm)
Bolt Size
Bearing No.
Housing

Housing No.
Mass
(Kgs)
a e i g l s z Bi n (mm) (in)
(in) (mm)
UCF305-14 7/8. 　 110 80 16 13 29 16 39 38 15 M14 1/2. UC305-14 F305 0.9
UCF305-15 15/16 　 UC305-15
UCF305-16 1 　 UC305-16
UCF305 　 25 UC305
UCF306-18 1-1/8. 　 125 95 18 15 32 16 44 43 17 M14 1/2. UC306-18 F306 1.28
UCF306-19 1-3/16. 　 UC306-19
UCF306 　 30 UC306
UCF307-20 1-1/4. 　 135 100 20 16 36 19 49 48 19 M16 5/8. UC307-20 F307 1.57
UCF307-21 1-5/16. 　 UC307-21
UCF307-22 1-3/8. 　 UC307-22
UCF307-23 1-7/16. 　 UC307-23
UCF307 1-1/2. 35 UC307
UCF308-24 1-1/2. 　 150 112 23 17 40 19 56 52 19 M16 5/8. UC308-24 F308 2
UCF308-25 1-9/16. 　 UC308-25
UCF308 　 40 UC308
UCF309-26 1-5/8. 　 160 125 25 18 44 19 60 57 22 M16 5/8. UC309-26 F309 2.6
UCF309-27 1-11/16. 　 UC309-27
UCF309-28 1-3/4. 　 UC309-28
UCF309 　 45 UC309
UCF310-30 1-7/8. 　 175 132 28 19 48 23 67 61 22 M20 3/4. UC310-30 F310 2.68
UCF310-31 1-15/16 　 UC310-31
UCF310 　 50 UC310
UCF311-32 2-1/8. 　 185 140 30 20 52 23 71 66 25 M20 3/4. UC311-32 F311 3.3
UCF311-34 2-1/8. 　 UC311-34
UCF311-35 2-3/16. 　 UC311-35
UCF311 　 55 UC311
UCF312-36 2-1/4. 　 195 150 33 22 56 23 78 71 26 M20 3/4. UC312-36 F312 4.1
UCF312-38 2-3/8. 　 UC312-38
UCF312-39 2-7/16. 　 UC312-39
UCF312 　 60 UC312
UCF313-40 2-1/2. 　 208 166 33 22 58 23 78 75 30 M20 3/4. UC313-40 F313 4.9
UCF313 　 65 UC313
UCF314-44 2-3/4. 　 226 178 36 25 61 25 81 78 33 M22 7/8. UC314-44 F314 5.6
UCF314 　 70 UC314
UCF315-48 3 　 236 184 39 25 66 25 89 82 32 M22 7/8. UC315-48 F315 7
UCF315 　 75 UC315
UCF316-50 3-1/8. 　 250 196 38 27 68 31 90 86 34 M27 1 UC316-50 F316 9
UCF316 　 80 UC316
UCF317-52 3-1/4. 　 260 204 44 27 74 31 100 96 40 M27 1 UC317-52 F317 10.5
UCF317 　 85 UC317
UCF318-56 3-1/2. 　 280 216 44 30 76 35 100 96 40 M30 1-1/8. UC318-56 F318 12.8
UCF318 　 90 UC318
UCF319-60 3-3/4. 　 290 228 59 30 94 35 121 103 41 M30 1-1/8. UC319-60 F319 13.8
UCF319 　 95 UC319
UCF320-64 4 　 310 242 59 32 94 38 125 108 42 M33 1-1/4. UC320-64
