ABEC 3 Cast Iron Housing UCT300 Take Up Bearing Units
ABEC 3 Cast Iron Housing UCT300 Take Up Bearing Units
ABEC 3 Cast Iron Housing UCT300 Take Up Bearing Units
ABEC 3 Cast Iron Housing UCT300 Take Up Bearing Units
Specifications
Brand Name :
SGC
Model Number :
UCT300
Place of Origin :
Fuzhou, China
MOQ :
100 PCS
Price :
Get the latest price
Payment Terms :
D/P, L/C, T/T, Western Union
Supply Ability :
100000PCS per month
Delivery Time :
45 days upon receipt of official order
Packaging Details :
1*1 Plastic Bag+Individual Box+Outer Carton+Pallet
Ball Bearing Insert :
GCr15 Chrome Steel
Hardness :
HRC58-62
Precision Rates :
ABEC-1, ABEC-3
Vibration :
Z1, Z1V1, Z2V2
Clearance :
C0, C2, C3
Shaft Dia :
25mm ~ 140mm, 7/8" ~ 4" Inch
Mounting Block :
High Grade Cast Iron
Type :
T Type
Color of Block :
Green
Oil Nipple :
Brass
Package :
1*1 Plastic Bag+Individual Box+Outer Carton
Service :
OEM or Customized Drawings is Available
Sample :
Free
Description

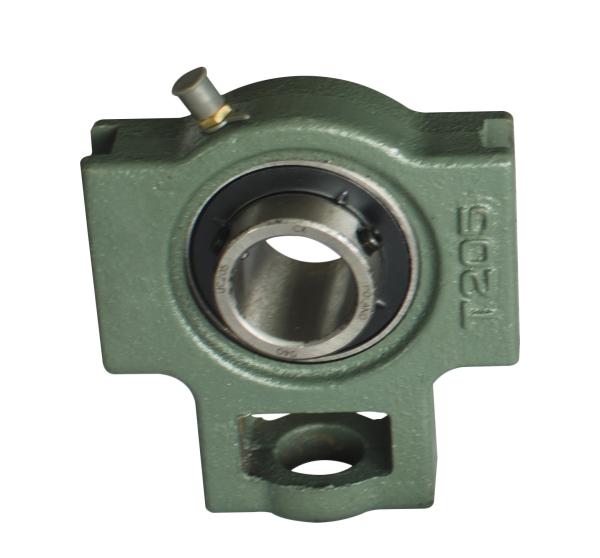

Take Up Bearing Units with Durable Ball Bearing Insert Hardness Treatment UCT300

Set Screw Type-Metric, Inch

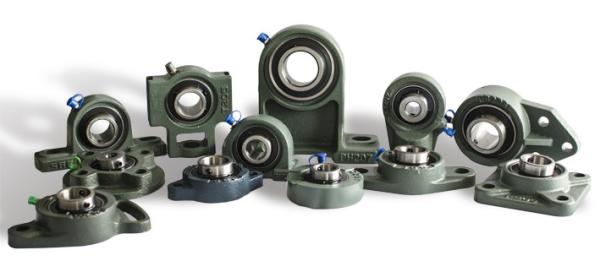

Standard duty pillow & mounting blocks that feature a cast iron housing with both set screw or locking collar design.
The dual seal construction ball bearing inserts are available for these mounting and pillow blocks.

Features:

• Cast Iron Housing
• Solid Base
• Dual Seal Type

Applications:

The bearing units can operate satisfactorily under hard working conditions, especially for machines operated in dusty or muddy surroundings, widely used used in agricultural machinery, construction machinery, textile machinery, foodstuff processing machinery, and conveying devices, etc..


Unit No.		 Shaft Dia
d
Boundary Dimensions(mm)
Bearing No.
Housing

Housing No.
Mass
(kg)
(in) (mm) o g p q s b k e a w j l h Bi n
UCT305-14 7/8. 　 16 12 62 36 26 65 12 80 89 122 36 26 76 38 15 UC305-14 T305 1.05
UCT305-15 15/16 　 UC305-15
UCT305-16 1 　 UC305-16
UCT305 　 25 UC305
UCT306-18 1-1/8. 　 18 14 70 41 28 74 16 90 100 137 41 28 85 43 17 UC306-18 T306 1.24
UCT306-19 1-3/16. 　 UC306-19
UCT306 　 30 UC306
UCT307-20 1-1/4. 　 20 15 75 45 30 80 16 100 111 150 45 32 94 48 19 UC307-20 T307 1.69
UCT307-21 1-5/16. 　 UC307-21
UCT307-22 1-3/8. 　 UC307-22
UCT307-23 1-7/16. 　 UC307-23
UCT307 　 35 UC307
UCT308-24 1-1/2. 　 22 17 83 50 32 89 18 112 124 162 50 34 100 52 19 UC308-24 T308 2.04
UCT308-25 1-9/16. 　 UC308-25
UCT308 　 40 UC308
UCT309-26 1-5/8. 　 24 18 90 55 34 97 18 125 138 178 55 38 110 57 22 UC309-26 T309 2.72
UCT309-27 1-11/16. 　 UC309-27
UCT309-28 1-3/4. 　 UC309-28
UCT309 　 45 UC309
UCT310-30 1-7/8. 　 27 20 98 61 37 106 20 140 151 191 61 40 117 61 22 UC310-30 T310 3.35
UCT310-31 1-15/16 　 UC310-31
UCT310 　 50 UC310
UCT311-32 2 　 29 21 105 66 39 115 22 150 163 207 66 44 127 66 25 UC311-32 T311 4.33
UCT311-34 2-1/8. 　 UC311-34
UCT311-35 2-3/16. 　 UC311-35
UCT311 　 55 UC311
UCT312-36 2-1/4. 　 31 23 113 71 41 123 22 160 178 220 71 46 135 71 26 UC312-36 T312 5
UCT312-38 2-3/8. 　 UC312-38
UCT312-39 2-7/16. 　 UC312-39
UCT312 　 60 UC312
UCT313-40 2-1/2. 　 32 25 116 71 43 134 26 170 190 238 80 50 146 75 30 UC313-40 T313 6
UCT313 　 65 UC313
UCT314-44 2-3/4. 　 36 25 130 85 46 140 26 180 202 252 90 52 155 78 33 UC314-44 T314 7.05
UCT314 　 70 UC314
UCT315-48 3 　 36 25 132 85 46 150 26 192 216 262 90 55 160 82 32 UC315-48 T315 9.28
UCT315 　 75 UC315
UCT316-50 3-1/8. 　 42 28 150 98 53 160 30 204 230 282 102 60 174 86 34 UC316-50 T316 10.03
UCT316 　 80 UC316
UCT317-52 3-1/4. 　 42 30 152 98 53 170 32 214 240 298 102 64 183 96 40 UC317-52 T317 13.3
UCT317 　 85 UC317
UCT318-56
