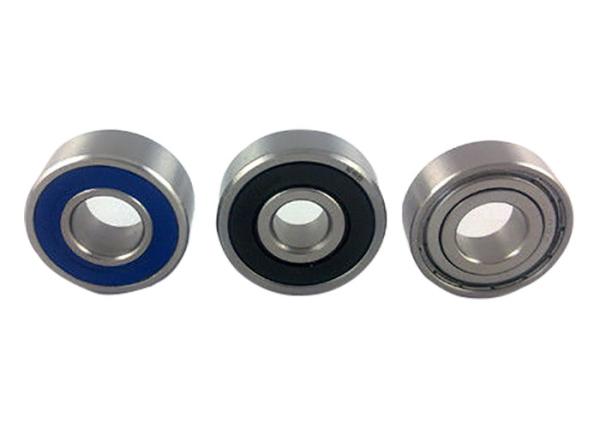

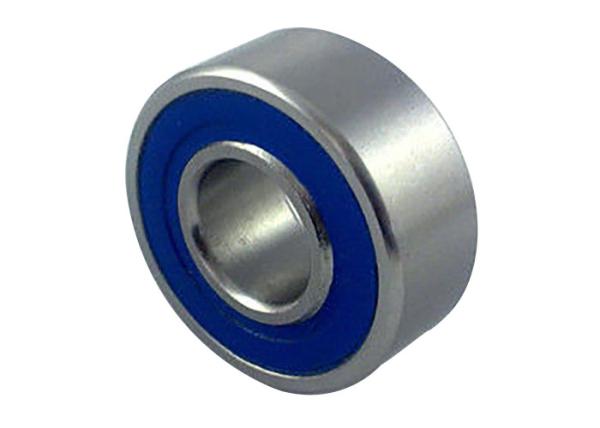

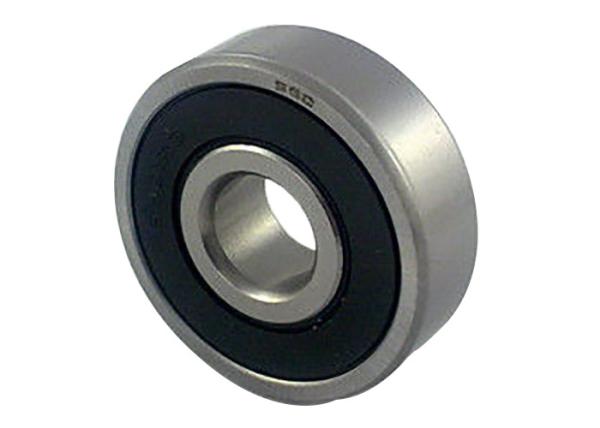

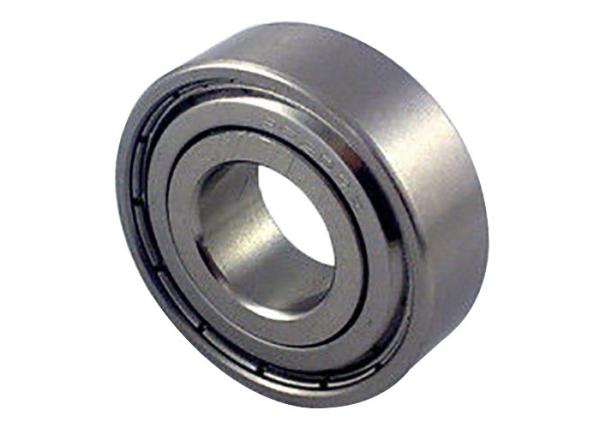

SGC Deep Groove ABEC 3 Stainless Steel Ball Bearings
SGC Deep Groove ABEC 3 Stainless Steel Ball Bearings
SGC Deep Groove ABEC 3 Stainless Steel Ball Bearings
SGC Deep Groove ABEC 3 Stainless Steel Ball Bearings
SGC Deep Groove ABEC 3 Stainless Steel Ball Bearings
SGC Deep Groove ABEC 3 Stainless Steel Ball Bearings
SGC Deep Groove ABEC 3 Stainless Steel Ball Bearings
SGC Deep Groove ABEC 3 Stainless Steel Ball Bearings
Specifications
Brand Name :
SGC
Model Number :
SS6300 Series
Certification :
RoHS
Place of Origin :
Fuzhou, China
MOQ :
100 PCS
Price :
Get The Latest Price
Payment Terms :
D/P, L/C, T/T, Western Union
Supply Ability :
100000PCS per month
Delivery Time :
10-45 days upon receipt of official order
Packaging Details :
plastic tube+box, or according to requested by clients
Races :
AISI440C Stainless Steel
Balls :
AISI440C Stainless Steel
Hardness :
HRC58-62
Cage :
304 SS
Seals Type :
Open, ZZ, 2RS
Accuracy :
ABEC-1, ABEC-3
Vibration :
Z1,Z2, Z3
Radial Play :
C0, C3
Bore size :
10 mm-60 mm
Outside diameter :
35 mm-130 mm
Width :
11 mm-31 mm
Number of row :
Single Row
Structure :
Deep Groove
Lubrication :
Shell Alivania R2, ESSO Beacon 325, Chevron SRI-2, Mobil 28, Kluber, Kyodo Yushi, etc.
Feature :
Corrosion Resistance
Package :
Industrial packing or as per requirement
Product name :
SS6300 Series Ball Bearings
Sample :
by free
Description

Stainless Steel Ball Bearings with Single Row Deep Groove for Anti-Corrosion Processing

Open/Seals/Shields Type - Anti-Corrosion

Materials: AISI440C Stainless Steel

Hardness: HRC58-62

Preccision Grade: ABEC-1, ABEC-3

Vibration: Z1,Z1, Z3

Bore Size: 10mm - 60 mm

OD: 35 mm - 130 mm

Width: 11 mm - 31 mm

Applications:

The bearings are widely used on ocean engineering equipment and ship, food processing machinery, medical equipment, cryogenic engineering, automobile, motorcycle, electric tools, high-speed motor, household appliances and other industries.

Lubrications:

Before SGC bearings leave factory,the open bearing is filled with meter anti-rust oil only;while the shielded bearing has been filled with general bearing grease,which makes it suitable for light and medium load as well as low and medium speed applications, with a working temperature ranging from -30℃～100℃.If the bearings are applied beyond the above conditions, other special grease or lubricating methods shall be employed.

Bearing No. Boundary dimensions Load Rating Limiting Speed(rpm) Weight
Open Shields Seals d D B Rmin Cr Cor Grease 2RS Oil Open
Open
SS6300 SS6300-ZZ SS6300-2RS 10 35 11 0.6 7.65 3.47 22000 16000 27000 0.05
SS6301 SS6301-ZZ SS6301-2RS 12 37 12 1 9.72 5.09 20000 15000 25000 0.05
SS6302 SS6302-ZZ SS6302-2RS 15 42 13 1 11.4 5.43 17000 12000 20000 0.08
SS6303 SS6303-ZZ SS6303-2RS 17 47 14 1 13.58 6.58 15000 10000 18000 0.11
SS6304 SS6304-ZZ SS6304-2RS 20 52 15 1.1 15.94 7.88 13000 8500 17000 0.14
SS6305 SS6305-ZZ SS6305-2RS 25 62 17 1.1 22.2 11.5 10000 7000 14000 0.22
SS6306 SS6306-ZZ SS6306-2RS 30 72 19 1.1 27 15.19 9000 6300 12000 0.35
SS6307 SS6307-ZZ SS6307-2RS 35 80 21 1.5 33.2 19.2 8000 5600 10000 0.42
SS6308 SS6308-ZZ SS6308-2RS 40 90 23 1.5 40.8 24 7000 5000 9000 0.62
SS6309 SS6309-ZZ SS6309-2RS 45 100 25 1.5 52.8 31.8 6300 4500 8000 0.83
SS6310 SS6310-ZZ SS6310-2RS 50 110 27 2 61.8 38.1 6000 4300 7500 1.08
SS6311 SS6311-ZZ SS6311-2RS 55 120 29 2 71.5 44.8 5300 3800 6700 1.37
SS6312 SS6312-ZZ SS6312-2RS 60 130 31 2.1 81.8 51.8 5000 3600 6300 1.71

Company Brand

Designation Dropping tem. Penetration Woring Tem. Remarks
Shell Alivania RL2 185 265-295 -35~120 General purpose
Alivania RL3 185 220-250 -35~135
Alivania RA 180 250-275 -25~100
Alivania EP1 180 310-340 -25~110
Alivania EP2 185 265-295 -25~110
Darina 2 250 265-295 -25~150 high Tem. service
Darina EP2 250 265-295 -25~150
Dolium R2 250 265-295 -35~150 corrosion resistnat
Esso Andok C 260 190-210 -30~120 General purpose
Andok 260 190 204-260 -40~120
Beacon 325 190 255-280 -54~120 low Tem. service
Chevron SRI-2 240 255-280 -30~120 water resistnat
Mobil Moilux 2 190 265-290 -10~110 General purpose
Mobil 22 192 260-274 -40~120
Mobil 28 260 265-295 -55~175 wide range Tem. service
Mobil 48 260 240-270 -60~170 high Tem. service
Kluber Isoflex LDS 18 190 255-280 -50~110 low Tem. service
Isoflex NBU 15 250 255-280 -30~120 General purpose
Kyodo Yushi Multemp SRL 185 225-245 -40~145 low torque service
Multemp PS2 190 250-275 -50~110 low Tem. service
Multemp ET150 260 255-280 -10~160 　
China Hangu Hangu 2 198 265-295 -10~130 low noise service

SGC Deep Groove ABEC 3 Stainless Steel Ball BearingsSGC Deep Groove ABEC 3 Stainless Steel Ball Bearings
