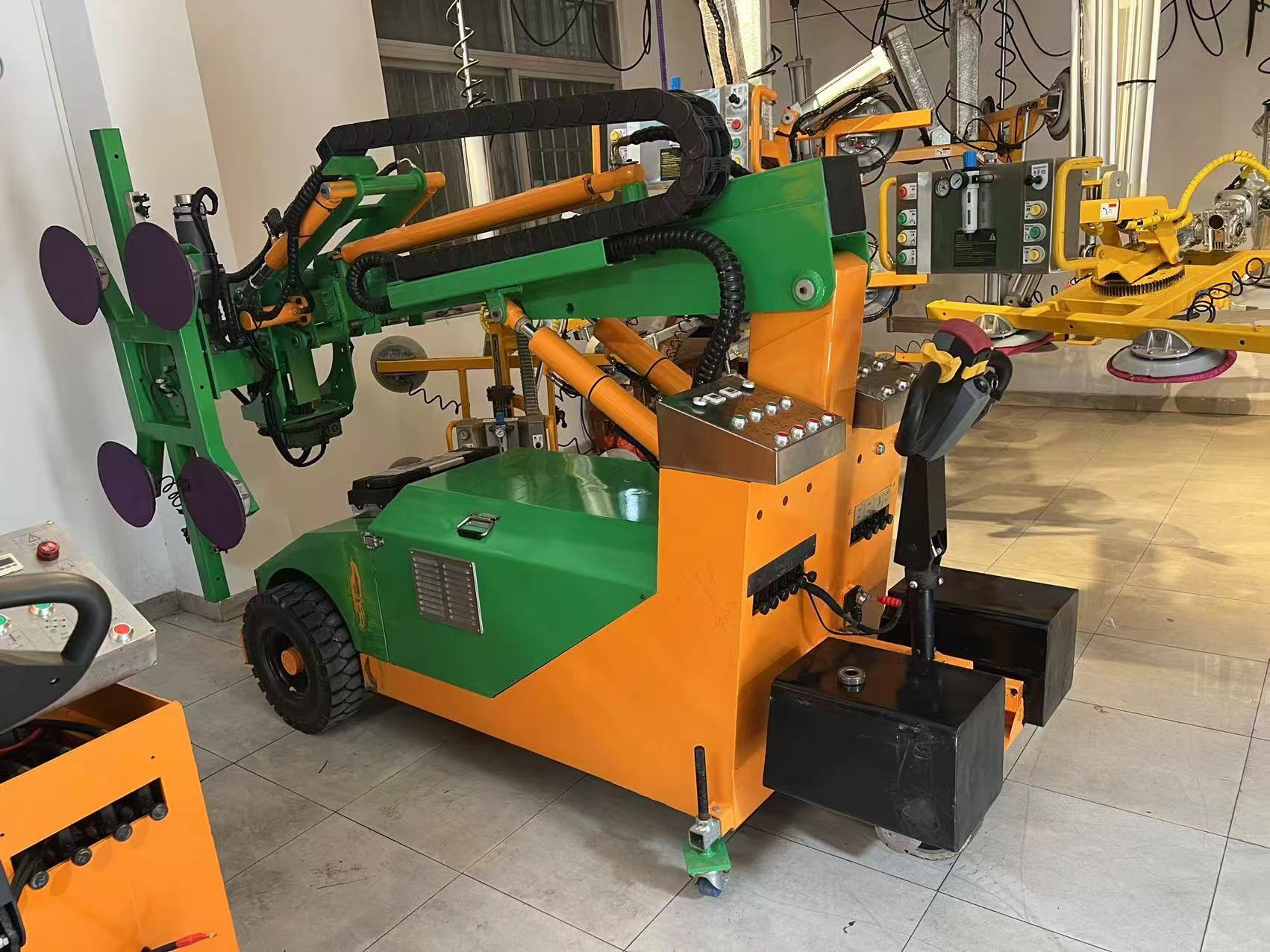

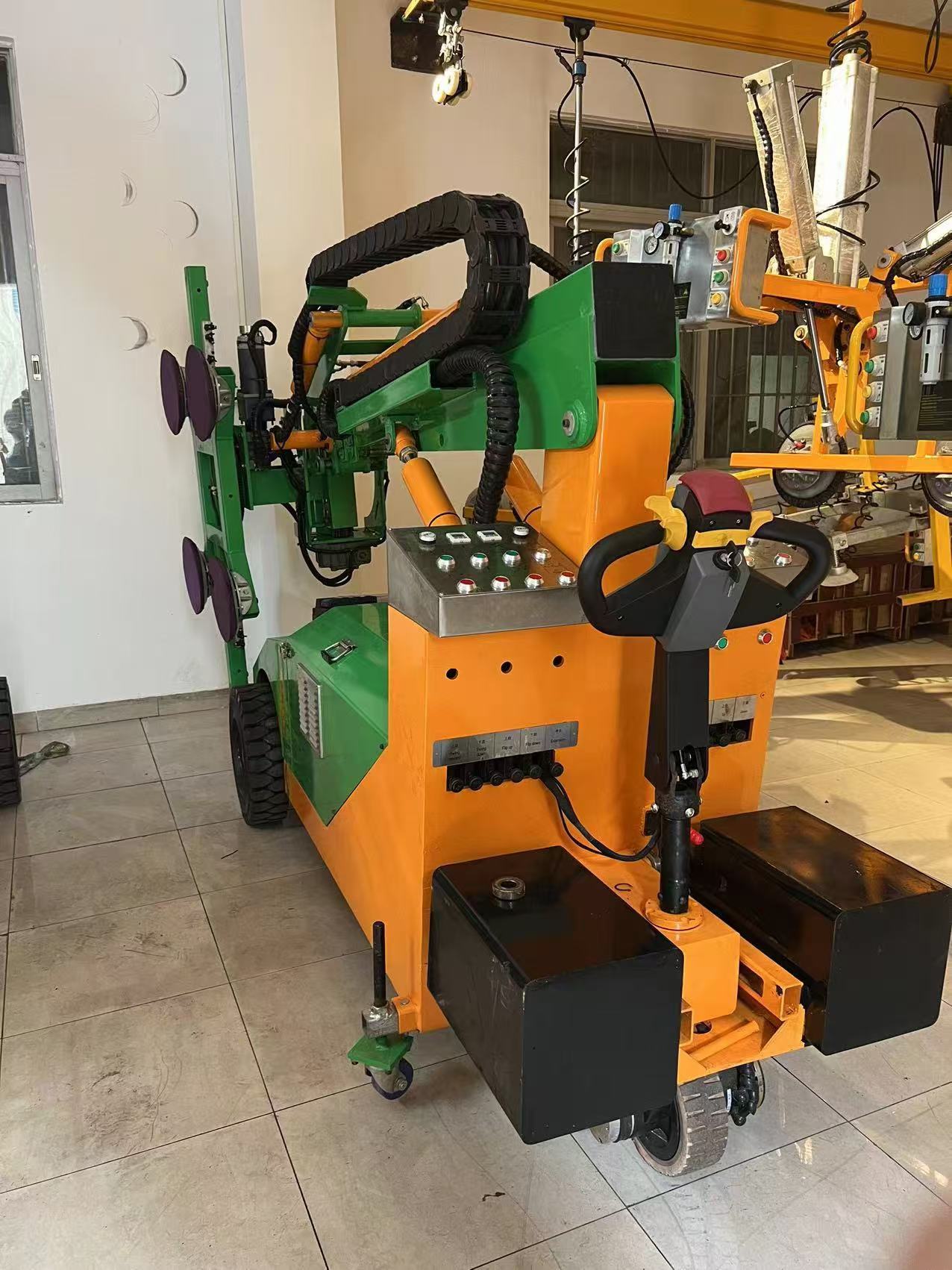

Hydraulic / Electric Vacuum Suction Cup Glass Lifter 500kg Load Capacity
Hydraulic / Electric Vacuum Suction Cup Glass Lifter 500kg Load Capacity
Hydraulic / Electric Vacuum Suction Cup Glass Lifter 500kg Load Capacity
Hydraulic / Electric Vacuum Suction Cup Glass Lifter 500kg Load Capacity
Specifications
Delivery Time :
45 day
Price :
US $ 12800-US $14800
Certification :
CB,CE, RoHS, ISO9001
Color :
Picture Shown Or Customized
MOQ :
1 Set
Payment Terms :
L/C,T/T,Western Union
Place of Origin :
CHINA
Feature :
Safety Durable
Service :
7*24 Hours Service
MOQ :
1 Set
Brand Name :
FSSIDA
Product Name :
Glass Lifter
After-sales Service Provided :
Online Support
Description

Electric Vacuum Suction Cup Elevator, Safe Load-bearing Capacity Of 500 Kilograms

Product Description

The lifter is designed for electric and hydraulic operation. The entire system consists of electric vacuum gripping device, hydraulic performance devices, electric driving system and safety protection system, to achieve gripping, lifting, handling, moving and placing glass to specific location by serial of process setting. The lifter can be assembled to various kinds of models to fit for different size of glass.

Product Specifications

Safe Load Capacity 500kg
Number and Size of Pads 8 pads/ [250mm]diameter
Pads Description Sucker, abrasion resistant, long-time heat resistant
Product Weight 1300kg
Product size 3300mm(L)* 900mm(W) * 2300mm(H)
Max.Glass Size 4000mm(L)*2400mm(W)*4-25mm(T)
Min. Glass Size 1200mm(L) *950mm(W)*4-25mm(T)
Lifting Material Glass, marble, plastic boards, metal sheet, coated boards and other plates.
Battery Specs. 200Ah *4pcs
Working Power 24V DC
Batter Charge 220V 50/60hz
Suitable for lifting Material properties: Gastight/ non-porous, smooth surface
Example: flat glass, building glass, various kinds of processing glass and special glass.
Safety protection When vacuum reaches to the specified pressure,vacuum pump automatically stops to achieve energy saving; when vacuum pressure is insufficient, it automatically restarts to achieve vacuum compensation.
