4-25mm Glass Lifter Machine For Glass Loading / Unloading / Handling Glass
4-25mm Glass Lifter Machine For Glass Loading / Unloading / Handling Glass
4-25mm Glass Lifter Machine For Glass Loading / Unloading / Handling Glass
4-25mm Glass Lifter Machine For Glass Loading / Unloading / Handling Glass
Specifications
Certification :
CB,CE, RoHS, ISO9001
Safe Load Capacity :
500kg
Price :
12800-14800USD/SET
Max. Glass Size :
4000mm* 2400mm
Payment Terms :
T/T
Min. Glass Size :
1200mm* 950mm
Place of Origin :
China
Number and Size of Pads :
8 pads / [250mm] diameter
Delivery Time :
30 working days
Glass thickness :
4-25mm
MOQ :
1
Product Weight :
1300kg
Packaging Details :
Protective Film
Brand Name :
FOSHAN STAR
Name :
Glass Lifter
Description
Glass Lifter for Glass Loading and Unloading
Product Overview

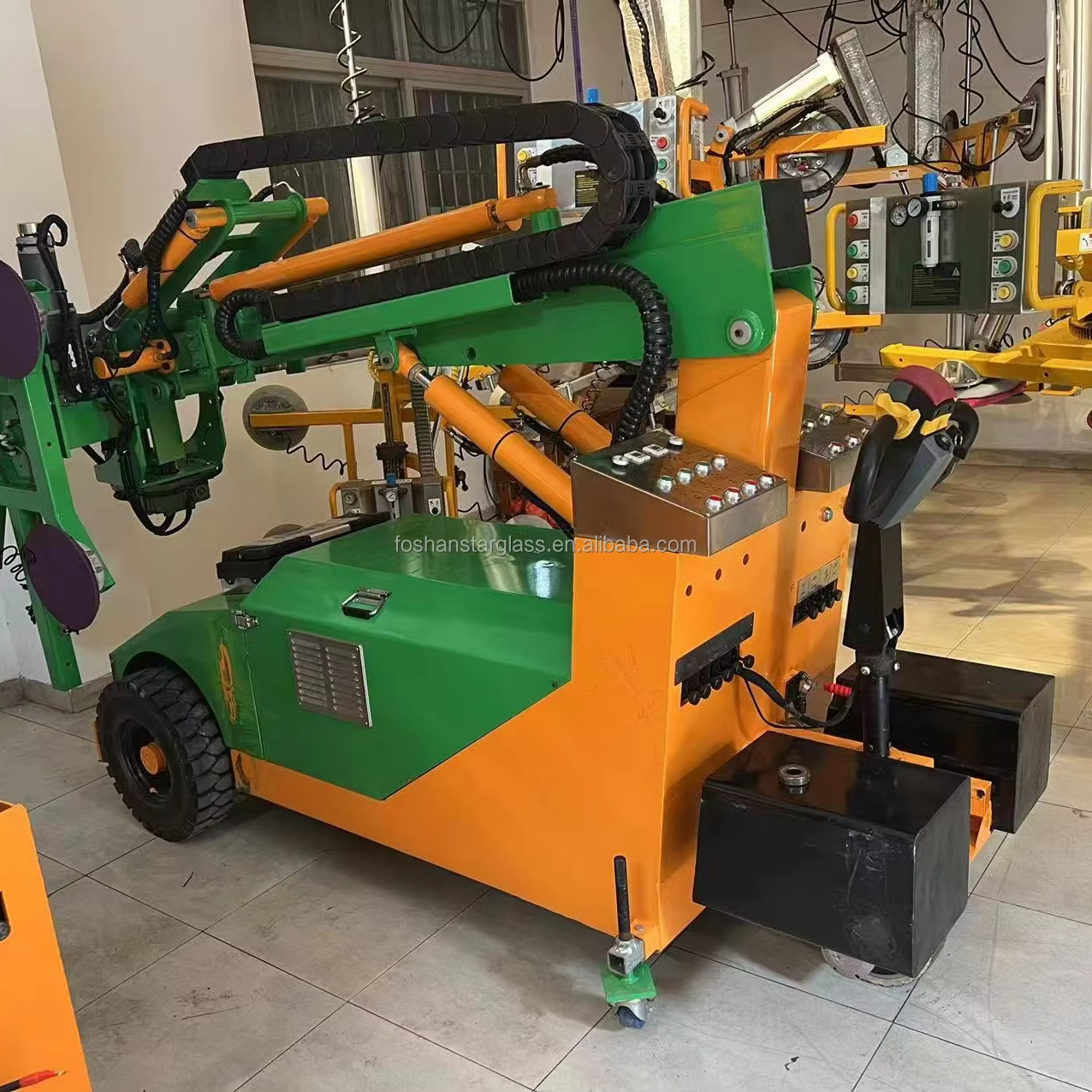

This electric-hydraulic glass lifter is designed for loading, unloading, and handling glass and other flat panels. An electric vacuum gripping system, hydraulic lift, electric drive, and safety protection system work together to grip, lift, move, and position panels up to 4000 × 2400 mm with a 500 kg safe load capacity. It handles glass, marble, plastic boards, metal sheets, and coated panels, and can be configured in various models to suit different panel sizes.

Performance Features
  1. Hydraulic tilt 180° upwards and downwards with stopping at any position
  2. Electric motorized rotation 360° with stopping at any position
  3. Electric head slew left & right 90° with stopping at any position
  4. Hydraulic lift up and down up to 4000mm
  5. Hydraulic extend the lifting arm to 1000mm
  6. Electric motor car, control by steering wheel
  7. Recharge when electricity power less than 30%
Suitable Materials

Material properties: Gastight/non-porous, smooth surface

  • Flat glass
  • Building glass
  • Various kinds of processing glass
  • Special glass
Technical Specifications
Parameter Value
Code SH-CAR-500
Safe Load Capacity 500kg
Number and Size of Pads 8 pads / [250mm] diameter
Pads Description Sucker, abrasion resistant, long-time heat resistant
Product Weight 1300kg
Product Size 3300mm(L) × 900mm(W) × 2300mm(H)
Max. Glass Size 4000mm(L) × 2400mm(W) × 4-25mm(T)
Min. Glass Size 1200mm(L) × 950mm(W) × 4-25mm(T)
Lifting Material Glass, marble, plastic boards, metal sheet, coated boards and other plates
Battery Specs 200Ah × 4pcs
Working Power 24V DC
Battery Charge 220V 50/60Hz
Noise Level Less than 80dB
Safety Protection System

When vacuum reaches to the specified pressure, vacuum pump automatically stops to achieve energy saving; when vacuum pressure is insufficient, it automatically restarts to achieve vacuum compensation.
