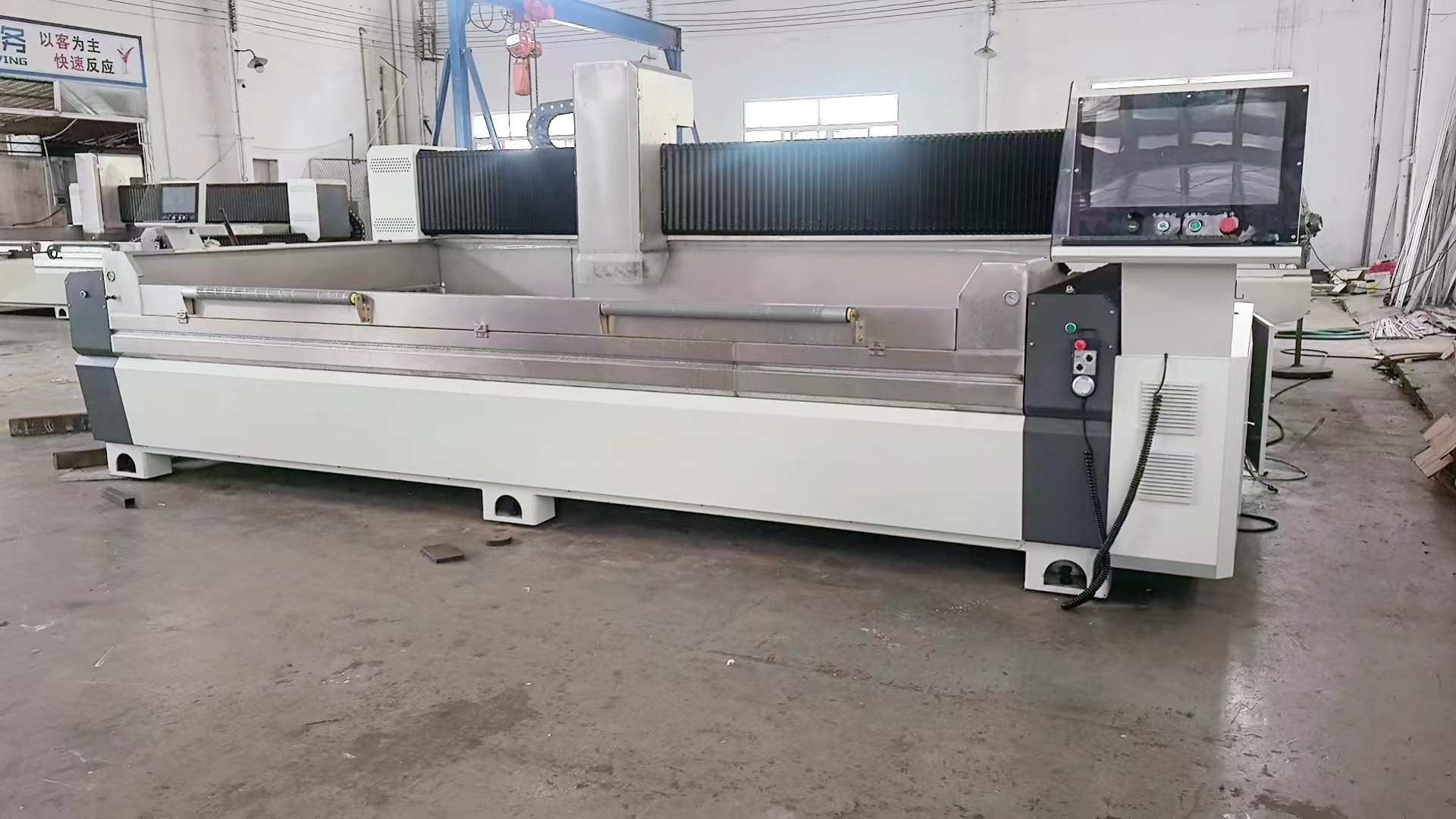

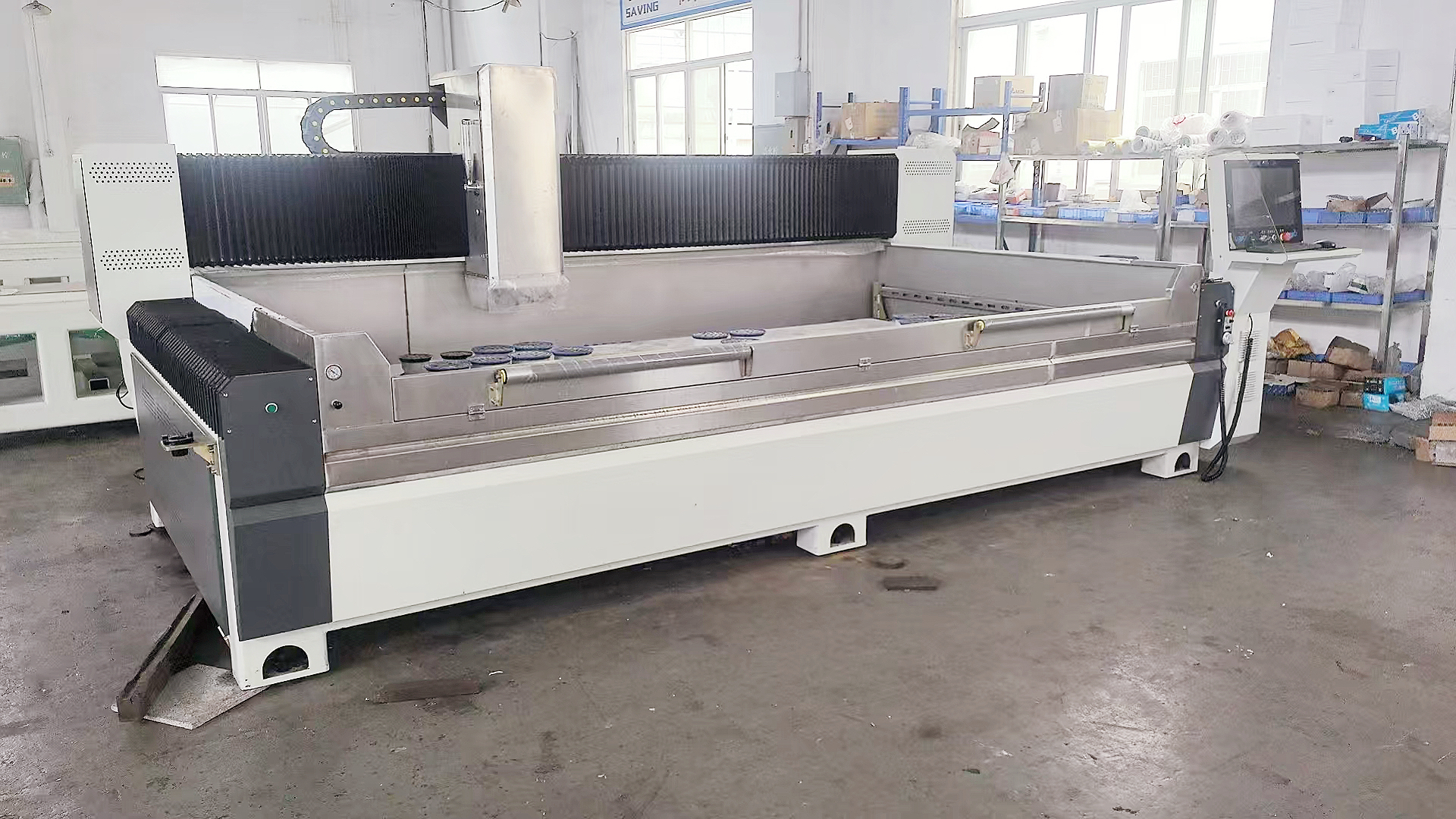

2-19mm CNC Glass Processing Center 380V 50Hz With Automatic Tool Changer
2-19mm CNC Glass Processing Center 380V 50Hz With Automatic Tool Changer
2-19mm CNC Glass Processing Center 380V 50Hz With Automatic Tool Changer
2-19mm CNC Glass Processing Center 380V 50Hz With Automatic Tool Changer
Specifications
Model Number :
2515
Spindle Power :
18KW
MOQ :
1 SET
Installation Power :
25KW
Price :
33000-39000$
Processing thickness :
2~19mm
Certification :
CE
Outline dimension :
4500 mm × 2800 mm × 1800 mm
Delivery Time :
45day
Processing Speed :
X-axis: 0-20 m/min; Y-axis: 0-20 m/min
Place of Origin :
CHINA
Power requirement :
380V,50Hz
Packaging Details :
4500*2600*1800
Brand Name :
FSSIDA
Name :
CNC Glass Processing Center
Description
CNC Glass Processing Center With , Automatic Tool Changer, And 18KW Spindle
Product Overview

This fully automatic integrated glass rock panel edge trimming and polishing machine offers both straight-edge and irregular-edge trimming capabilities. It is suitable for decorative applications, home appliances, mosaic installations, handicrafts, and similar applications.

Product Features

1. Highly integrated functionality, one-stop processing


The CNC glass processing center integrates grinding, chamfering, polishing, drilling, milling, and various processes. It can automatically complete complex processes such as straight lines, circles, shapes, and drilling in one go according to the design graphics, completely changing the cumbersome process of multi equipment circulation in traditional glass processing.


2. High processing accuracy and stable quality


This equipment usually uses high-precision linear guides, grinding grade ball screws, and CNC systems, which can achieve micrometer level precision machining with a positioning accuracy of ± 0.02mm to ± 0.05mm. Fully automatic positioning and machining effectively avoid errors caused by manual operation, solve common edge fractures and hidden cracks in traditional machining, and make the output and quality of mass production highly stable.

Product Specifications
Category Parameter Value
Machine Parameters Outline Dimension 4500 mm × 2800 mm × 1800 mm
Packaging Size 4500 mm × 2600 mm × 1800 mm
Principal Axis Huadiao × Taixin
Bench Height 750±50 mm (base foot adjustable)
Power Requirement 380V, 50Hz
Installation Power 25KW
Processing Parameters Finish Size MAX. 2500×1500mm
Processing Thickness 2~19mm
Working Accuracy ≤±0.2mm/m
Spindle Power 18KW
