Multi Purpose CNC Glass Processing Center 25KW For Cutting / Drilling / Grinding / Polishing Glass
Multi Purpose CNC Glass Processing Center 25KW For Cutting / Drilling / Grinding / Polishing Glass
Multi Purpose CNC Glass Processing Center 25KW For Cutting / Drilling / Grinding / Polishing Glass
Multi Purpose CNC Glass Processing Center 25KW For Cutting / Drilling / Grinding / Polishing Glass
Specifications
Model Number :
ST-CNC2515
Working table size :
2500*1500mm
MOQ :
1
Packaging Details :
Protective Film
Repeatability :
±0.05mm/300mm
Price :
53000-56000USD/SET
Covered area :
4500x3200mm
Certification :
CB,CE, RoHS, ISO9001
Total power :
25KW
Delivery Time :
30 -45 working days
Brand Name :
FOSHAN STAR
Glass thickness :
2-19mm
Place of Origin :
China
Total weight :
3000KG
Payment Terms :
T/T
Name :
CNC Glass Processing Center
Description
CNC Glass Processing Center
Machine introduction

The ST-CNC 2512 is a multi-purpose CNC glass processing center for cutting, drilling, grinding, and polishing glass from 2 to 19 mm thick. Its fully digital control system delivers fast axis movement and quick setup, combining high precision, quality, and efficiency in one machine.

Equipment characteristics structural

  1. Overall frame: using overall welding, annealing, vibration and aging treatment；
  2. Mechanical structure: The whole machine is welded with high-strength steel. It adopts multiple processes of annealing, vibration, and aging treatment. The surface is sandblasted and then primed, which effectively ensures product quality. It is processed in one go using a high-precision CNC machining center. Forming.
  3. Work table: The work table is made of a whole aluminum plate. The aluminum plate has been precision processed to ensure the flatness and processing accuracy of the table suction cup, thus ensuring the processing accuracy of glass products.
  4. Frame beams: Adopt a unique overall structural design and use a high-precision CNC machining center to process and form in one go to ensure product quality.
  5. The automatic lubrication system is adopted to ensure that the guide rail and screw rod are well lubricated when working at high speed, ensuring that the screw rod has a high degree of stability during operation, thus ensuring the processing accuracy of the product.
Technical Parameters
Project Parameter content Parameter Remark
Device parameters Covered area 4500x3200mm
Working table size 2500X1500mm
Glass thickness 2～19mm
Grinding head tool holder diameter φ22X100 BT40/5 tool magazine
Repeatability ±0.05mm/300mm
Total power 380V,25KW,50Hz
Total Weight 3000KG
speed Machine tool X, Y, Z axis travel 2800mmX1300X200mm
Machine body X, Y, Z axis accuracy 0.05mmX0.05mmX0.05mm
Machine body X, Y axis speed 0～15m/min
Machine body Z-axis speed 0～15m/min
Spindle Maximum spindle speed (r/min) 12000
Spindle power 15KW With water
Cooling method Oil cooler
Exterior Grey /White
Black /White

Product service

Multi Purpose CNC Glass Processing Center 25KW For Cutting / Drilling / Grinding / Polishing Glass

Multi Purpose CNC Glass Processing Center 25KW For Cutting / Drilling / Grinding / Polishing Glass

Multi Purpose CNC Glass Processing Center 25KW For Cutting / Drilling / Grinding / Polishing Glass

Multi Purpose CNC Glass Processing Center 25KW For Cutting / Drilling / Grinding / Polishing Glass

Multi Purpose CNC Glass Processing Center 25KW For Cutting / Drilling / Grinding / Polishing Glass

Multi Purpose CNC Glass Processing Center 25KW For Cutting / Drilling / Grinding / Polishing Glass

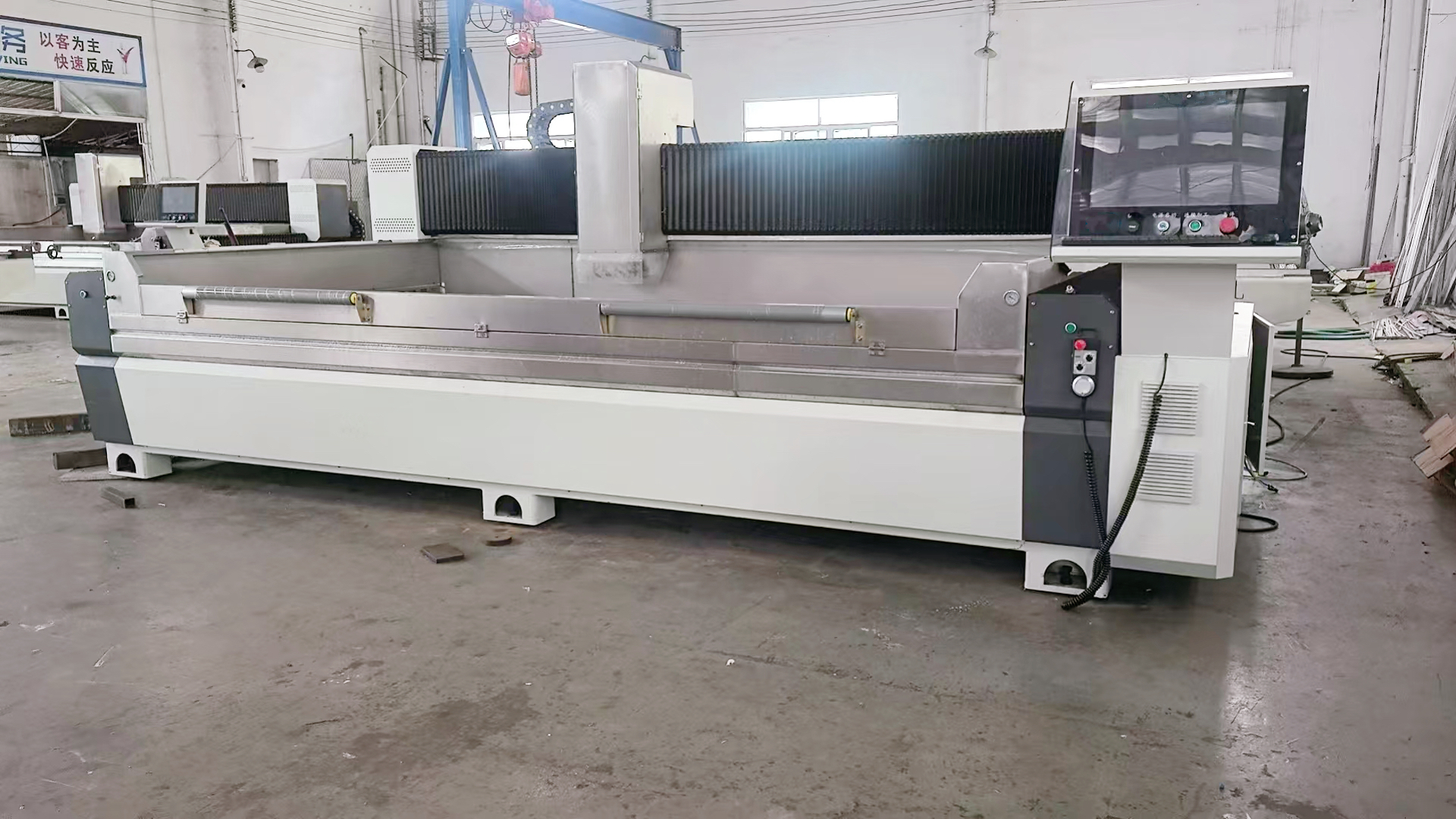

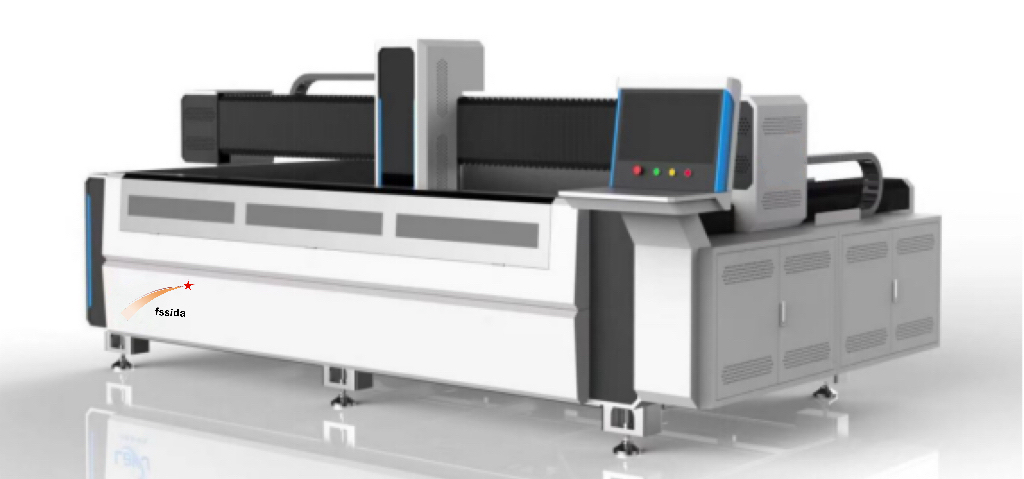

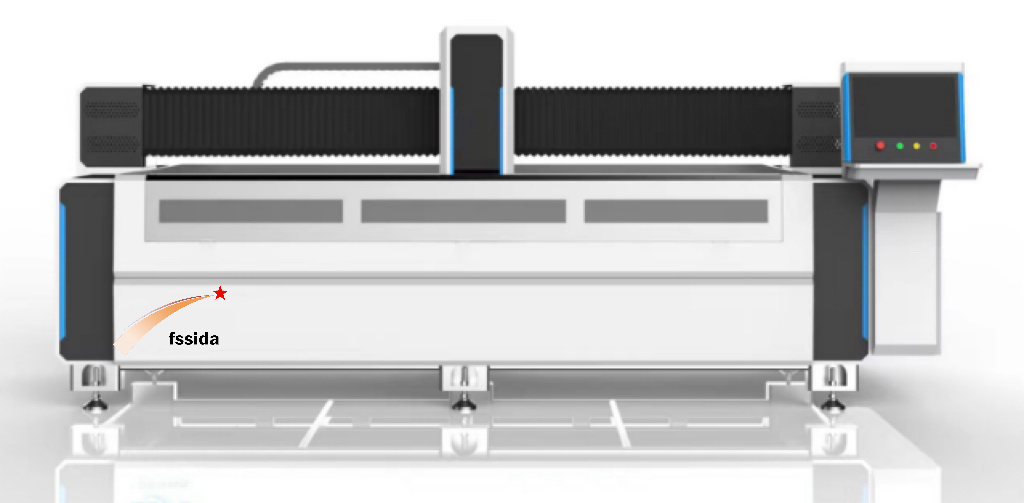

Machine Images

Multi Purpose CNC Glass Processing Center 25KW For Cutting / Drilling / Grinding / Polishing Glass

Multi Purpose CNC Glass Processing Center 25KW For Cutting / Drilling / Grinding / Polishing Glass

Multi Purpose CNC Glass Processing Center 25KW For Cutting / Drilling / Grinding / Polishing Glass

Multi Purpose CNC Glass Processing Center 25KW For Cutting / Drilling / Grinding / Polishing Glass
