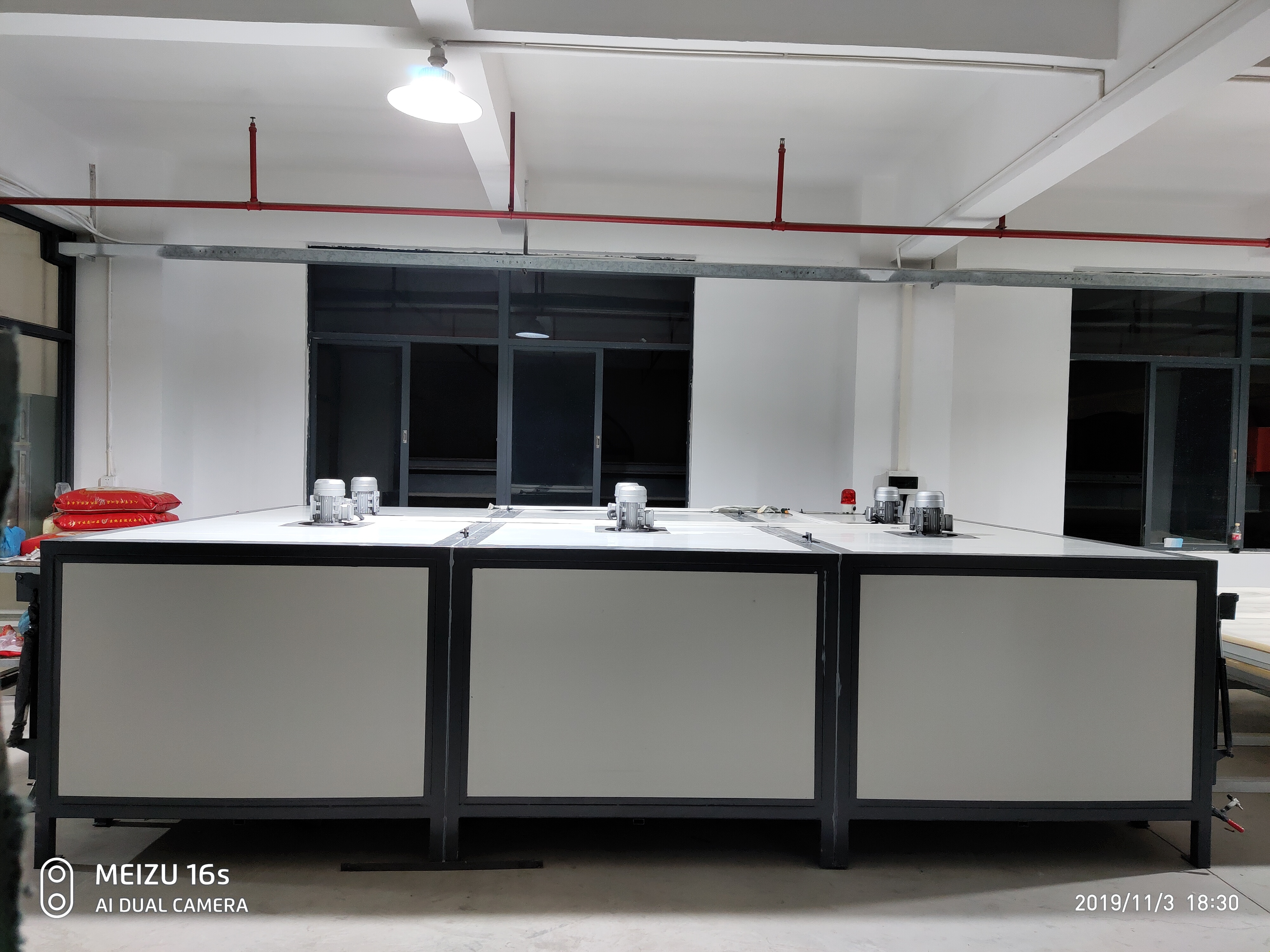

PLC Control Glass Laminating Furnace 3 Phase AC 220V 440V 45kw Glass Laminating Equipment
PLC Control Glass Laminating Furnace 3 Phase AC 220V 440V 45kw Glass Laminating Equipment
PLC Control Glass Laminating Furnace 3 Phase AC 220V 440V 45kw Glass Laminating Equipment
PLC Control Glass Laminating Furnace 3 Phase AC 220V 440V 45kw Glass Laminating Equipment
Specifications
Model Number :
STJ-2436-3
Furnace type :
Batch
Place Of Origin :
CHIAN
Supply Ability :
10-18SET/MONTH
Specification :
4200*3100*1650mm
MOQ :
1
Weight :
2200kg
Certification :
CE/ISO/RoHS
Heating method :
Electric Heating
Payment Terms :
T/T
Packaging Details :
Protective film
Brand Name :
FOSHAN STAR
Name :
PLC Control Glass Laminating Furnace
Delivery Time :
30-50
Place of Origin :
CHINA
Structure :
Horizontal
Price :
16500USD
Electric Power :
3 Phase AC 220-440V / 45kw
Description
Glass Laminating Oven with Over-temperature Protection and PLC Control for Enhanced Safety
Product Overview

The Glass Laminating Furnace is an advanced, highly efficient industrial oven specifically designed for glass laminate manufacturing. This essential production line component ensures quality and durability in laminated glass products through precise heating, bonding, and laminating processes.

Featuring robust construction with a substantial 2200kg weight for operational stability, this furnace handles demanding production requirements in large-scale manufacturing facilities. The sophisticated PLC control system with user-friendly touch screen interface enables precise parameter adjustment and automated processes for consistent results.

This machine including:

l Heating Chamber (including heater, air circulation, temperature measurement device)

l Glass bed cart

l Glass bed lifter(automatically)

l Circulation fan

l 3 vacuum bags

l Touch screen

l PLC automatic control

Technical Specifications
Model No ST-2436
Electric Power 3-Phase AC 220-440V / 45kw
Structure Horizontal
Control System PLC Control with Touch Screen Interface
Heating Method Electric Heating
Furnace Type Batch
Mechanical Test Report Provided
Grinding Head Number No
Weight 2200kg

Electric Power

(3-phase AC 220-440V)/45KW

Processing Glass Size

Max:2440*3660mm / Min: 100*100mm

Max bending deep(mm): 400mm

Max glass thickness in each silicone bag: 36mm

Efficiency

Forming cycle: 75-120 Min/cycle

Max production capacity in one cycle: 40m²

Production capacity in 8 hours: 160m² (if 80% full furnace loaded)

Operation platform

3 layers

Working Temperature

90-150℃

Floor Space

4200*3100*1650mm

Net Weight

About 2200kg
Safety Features

The furnace incorporates comprehensive safety systems including over-temperature protection to prevent exceeding safe thresholds and an emergency stop mechanism for immediate shutdown during unexpected issues, ensuring operator safety and equipment protection.

Applications

This high-performance Glass Lamination Equipment Furnace is widely used in industries requiring strong, durable laminated glass including:

  • This high-performance Glass Lamination Equipment Furnace is widely used in industries requiring strong, durable laminated glass including:
    Architectural glazing (building windows, glass doors)
    Safety glass production (protective glass barriers)
    Decorative glass panels
Customization & Support

FOSHAN STAR offers customized solutions for the Glass Lamination Furnace model STJ-2436-3, tailored to meet specific glass lamination processing needs. Comprehensive technical support, maintenance services, staff training, and replacement parts are available to ensure optimal performance and longevity.
