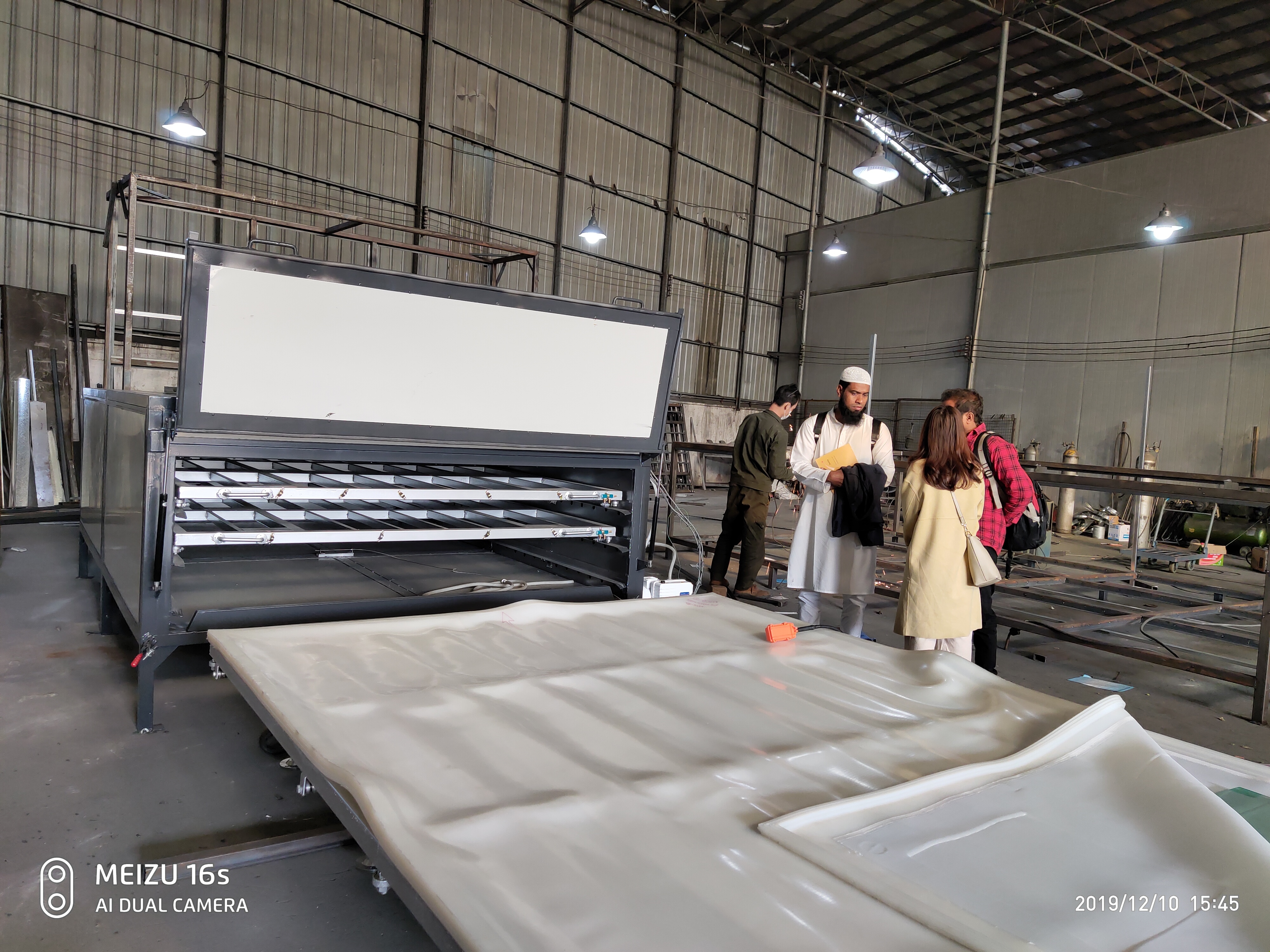

Small Size 1530 EVA Laminating Furnace Two Layers With PLC Automatic Control
Small Size 1530 EVA Laminating Furnace Two Layers With PLC Automatic Control
Small Size 1530 EVA Laminating Furnace Two Layers With PLC Automatic Control
Small Size 1530 EVA Laminating Furnace Two Layers With PLC Automatic Control
Specifications
Model Number :
STJ-1530
Max glass processing size :
1500*3000mm
MOQ :
1
Packaging Details :
Protective Film
Net Weight :
2500kg
Price :
9500USD/SET
Max Glass Thickness in Each Silicone Bag :
36mm
Certification :
CB,CE, RoHS, ISO9001
Operation platform :
2 layers
Delivery Time :
30 working days
Brand Name :
FOSHAN STAR
Electric Power :
3-phase AC 220-440V/40KW
Payment Terms :
T/T
Name :
Glass Laminating Furnace
Place of Origin :
China
Exterior Dimension :
6200*2000*1450mm
Description

Small Size 1530 EVA Laminating Furnace with Two Layers and PLC Automatic Control for Glass Laminating

Small Size 1530 EVA Laminating Furnace
Product Overview

This compact EVA laminating furnace produces EVA film laminated glass using a dual-layer design with two silica vacuum bags for efficient, high-volume processing. PLC automatic control and a touch screen enable precise, user-friendly operation, while the furnace handles glass up to 1500 x 3000 mm with a 400 mm bending depth and 36 mm thickness per bag. Each cycle forms up to 40 m² of laminated glass, delivering 100–125 m² per 8-hour shift.

Machine Components
  • Heating Chamber (including heater, air circulation, temperature measurement device)
  • Glass bed cart
  • Two layers glass bed
  • Circulation fan
  • 2 vacuum bags
  • Touch screen
  • PLC automatic control
Supply List
1. Heating box (including the tray on the top of the machine) : 1 set
2. PLC cabinet : 1 set
3. Automatic lifting table : 1 set
4. Work trays : 2 sets
5. Silicon bag : 2 sets
6. Electric apparatus (PLC and touch screen) : 1 set
7. Vacuum pump : 1 set
8. Vacuum buffer tank : 1 set
9. Vacuum silicon tube : 2 sets
10. Numerical vacuum meter : 1 set
11. Industrial fan : 2 sets
12. Install tools : 1 set
Technical Specifications
Electric Power 3-phase AC 220-440V / 40KW
Processing Glass Size Max: 1500*3000mm / Min: 100*100mm
Max Bending Deep 400mm
Max Glass Thickness in Each Silicone Bag 36mm
Efficiency Forming cycle: 75-120 Min/cycle
Max Production Capacity in One Cycle 40m²
Production Capacity in 8 Hours 100-125m²
Operation Platform 2 layers
Working Temperature 90-150℃
Exterior Dimension 6200*2000*1450mm
Floor Space 6200*2000mm
Net Weight 2500kg
Product service

Small Size 1530 EVA Laminating Furnace Two Layers With PLC Automatic Control

Small Size 1530 EVA Laminating Furnace Two Layers With PLC Automatic Control

Small Size 1530 EVA Laminating Furnace Two Layers With PLC Automatic Control

Small Size 1530 EVA Laminating Furnace Two Layers With PLC Automatic Control

Small Size 1530 EVA Laminating Furnace Two Layers With PLC Automatic Control

Small Size 1530 EVA Laminating Furnace Two Layers With PLC Automatic Control

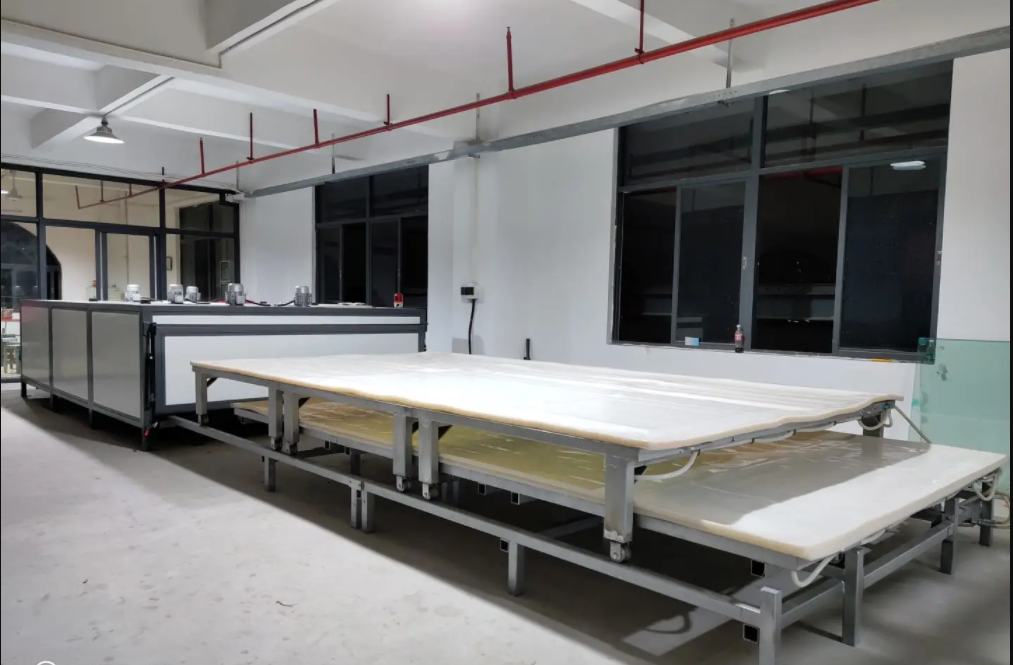

Machine Images

Small Size 1530 EVA Laminating Furnace Two Layers With PLC Automatic Control

Small Size 1530 EVA Laminating Furnace Two Layers With PLC Automatic Control
