Fully Automatic Glass Sandblasting Machine 3.5Kw PLC Intelligent Control
Fully Automatic Glass Sandblasting Machine 3.5Kw PLC Intelligent Control
Fully Automatic Glass Sandblasting Machine 3.5Kw PLC Intelligent Control
Fully Automatic Glass Sandblasting Machine 3.5Kw PLC Intelligent Control
Specifications
Weight :
1200kg
Model Number :
ST-PS2500
Model No :
ST-PS2500
Place of Origin :
CHINA
Minimum Glass Size :
350*350mm
Price :
$66000-$10000USD
Packaging Details :
Steel Pallet
Cover area :
6800x1500x3300mm
Payment Terms :
L/C,T/T,Western Union
Total Power :
3.5kw
Delivery Time :
60 working days
Brand Name :
FSSIDA
Certification :
CE
Name :
Glass Sandblasting Machine
MOQ :
1
Max sandblasting height :
2500mm
Description
Fully Automatic Glass Sandblasting Machine, Speed Of 20-30m ²/h, Alloy Nozzle
Product Description

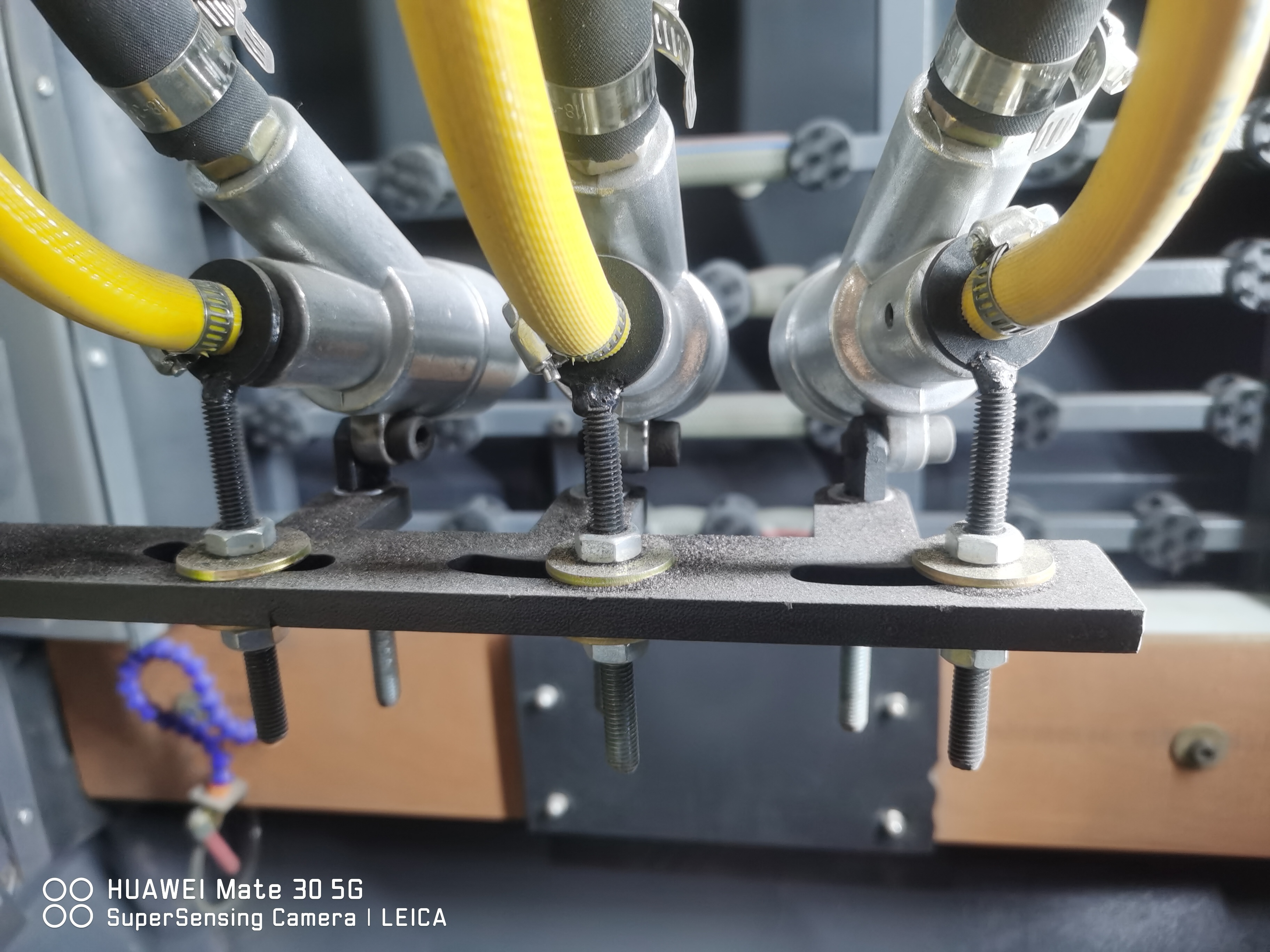

This advanced sandblasting machine offers both automatic and manual operation modes. It features three automatic guns and one manual gun for flexible processing. The guns and glass are moved by synchronous belts, ensuring smooth and precise movement. The gun up-and-down control system is conveniently located outside the machine for easy operation and reduced fault rates. The sandblasting speed ranges from 20-30 m²/h, and dust extraction is handled by bag dust extraction with vibration cylinder.
Product Features
1. Highly automated and precise control
PLC intelligent control: PLC programmable controllers and touch screen human-machine interfaces are commonly used, which are intuitive and easy to operate, and can preset and store various processing parameters.

Automatic reciprocating sandblasting: Multiple spray guns are driven by servo motors and can automatically move up and down or left and right to ensure precise sandblasting trajectory and coverage range, and uniform and consistent processing surface.

Automatic conveying: Glass is automatically conveyed into the sandblasting area through a synchronous belt or roller conveyor, achieving continuous production without the need for manual repeated handling.
2. Environmentally friendly and dust-free design
Sealed operation: The entire sandblasting process is carried out in a sealed cabin, effectively preventing the leakage of abrasives and dust.

Efficient dust removal system: Equipped with a bag filter or cyclone separator, it can automatically separate reusable abrasives and useless dust, and collect the dust in a centralized manner to ensure a clean workshop environment that meets environmental standards.
Product Specifications
Model No ST-PS2500
Total Power 3.5kw
Air Consumption 0.6-0.8MPA
Weight 1200kg
Minimum Glass Size 350*350mm
Max sandblasting height 2500mm
Cover area 6800x1500x3300mm
