20-30m2/H Automatic Glass Sandblasting Machine Manufacturers Easy Operation
20-30m2/H Automatic Glass Sandblasting Machine Manufacturers Easy Operation
Specifications
Name :
Automatic Glass Sandblasting Machine
Price :
$6500-$9500USD/SET
Model Number :
ST-1600/2000/2500
Cover area :
4700x1500x2300/6800x1500x2800/6800x1500x3300
Payment Terms :
L/C,T/T,Western Union
Certification :
CB,CE, RoHS, ISO9001
Total power :
3.5Kw
Delivery Time :
30 working days
Gun inside diameter :
8mm
Packaging Details :
Protective Film
Glass thickness range :
3-50mm
MOQ :
1
Brand Name :
FOSHAN STAR
Max sandblasting height :
1500mm/2000mm/2500mm
Supply Ability :
60Set each month
Place of Origin :
China
Total weight :
1000Kg/1100Kg/1200Kg
Description

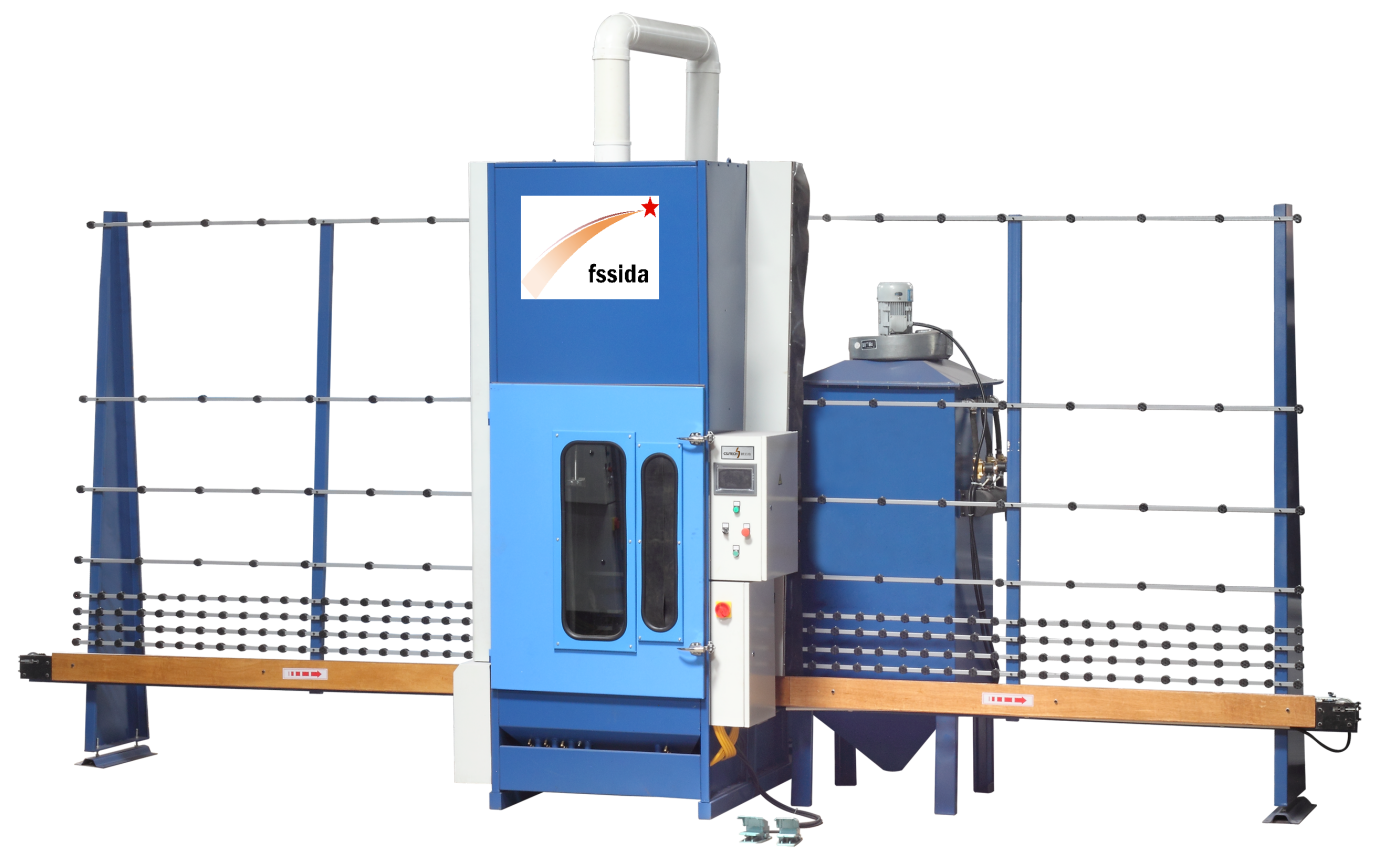

Automatic Glass Sandblasting Machine
Machine Introduction
This advanced sandblasting machine offers both automatic and manual operation modes. It features three automatic guns and one manual gun for flexible processing. The guns and glass are moved by synchronous belts, ensuring smooth and precise movement. The gun up-and-down control system is conveniently located outside the machine for easy operation and reduced fault rates. The sandblasting speed ranges from 20-30 m²/h, and dust extraction is handled by bag dust extraction with vibration cylinder.
Technical Specifications
Parameters ST-PS1600 ST-PS2000 ST-PS2500
Max Sandblasting Height 1500mm 2000mm 2500mm
Cover Area (mm) 4700×1500×2300 6800×1500×2800 6800×1500×3300
Total Power 3.5Kw 3.5Kw 3.5Kw
Total Weight 1000Kg 1100Kg 1200Kg
Detailed Configuration
Automatic Guns: 3 units
Manual Work Gun: 1 unit
Gun Inside Diameter: 8mm
Gun Lifting Speed: 8m/min
Glass Conveying Speed: 3.6m/min
Work Speed: 20m²/h
Conveyor Timing Belt Width: 60mm
Lifting Timing Belt Width: 32mm
Minimum Glass Size: 350mm
Glass Thickness Range: 3-50mm
Lifting Motor Power: 0.37KW
Transmission Motor Power: 0.75KW
Dust Removal Fan Power: 2.2KW
Dust Removal Method: Filter Element
Filter Bag Cleaning Method: Automatic
Air Supply Pressure: 0.6-0.8MPA
Air Source Flow: ≥3m³/min
Total Power: 3.5KW
Air Source Requirements
Air Compressor Power: 22KW, Flow Rate: ≥3m³/min
Air Tank: 1m³
Filter: To match air compressor, filter water in compressed air
Included Spare Parts
  • Sandblasting Sands: 1 bag
  • Brush: 5 pieces
  • Tools: 1 set
  • Tool Box: 1 piece

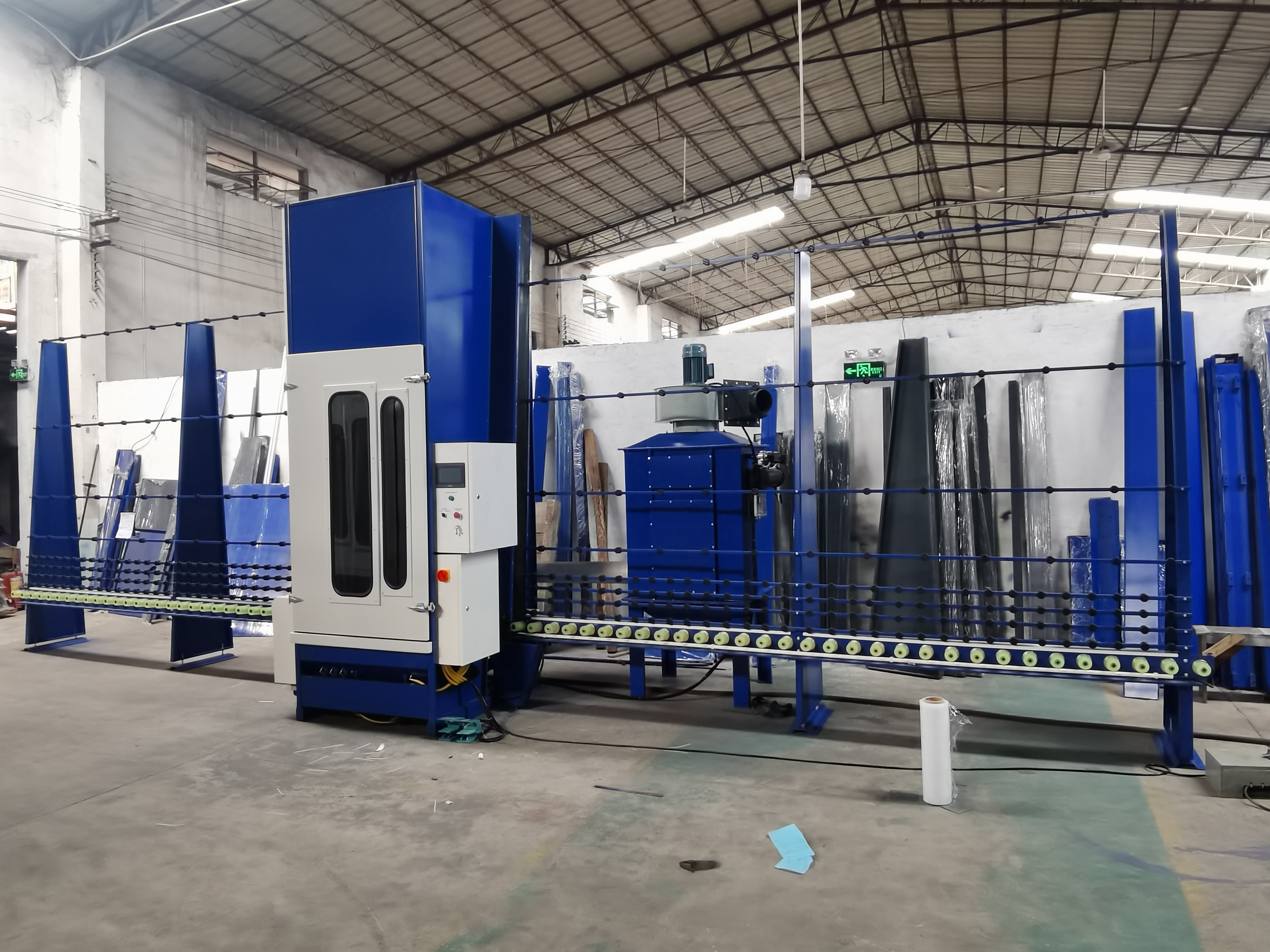

Machine Photos

20-30m2/H Automatic Glass Sandblasting Machine Manufacturers Easy Operation

20-30m2/H Automatic Glass Sandblasting Machine Manufacturers Easy Operation

20-30m2/H Automatic Glass Sandblasting Machine Manufacturers Easy Operation
