ASTM A269 304 Cold Drawn Seamless Stainless Steel Hydraulic Cylinder Honed Tube Supplier
ASTM A269 304 Cold Drawn Seamless Stainless Steel Hydraulic Cylinder Honed Tube Supplier
Specifications
Payment Terms :
T/T
Grade :
ASTM 304 / UNS S30400
OD :
20–500 mm
Supply Ability :
Adequate production
Product name :
304 Hydraulic Cylinder Honed Tube
Model Number :
304
Length :
1000–12000 mm or Customized
Packaging Details :
Standard Package
MOQ :
500kgs
Delivery Time :
8 ~ 14 days
Wall Thickness :
2–30 mm
Price :
negotiable
Standard :
ASTM A269
Type :
Round Stainless Steel Tube
Certification :
ISO,SGS,CE,BIS
Place of Origin :
China
Brand Name :
JUDE STEEL
Applications :
Hydraulic & Pneumatic Equipment Industrial Machinery etc.
Description

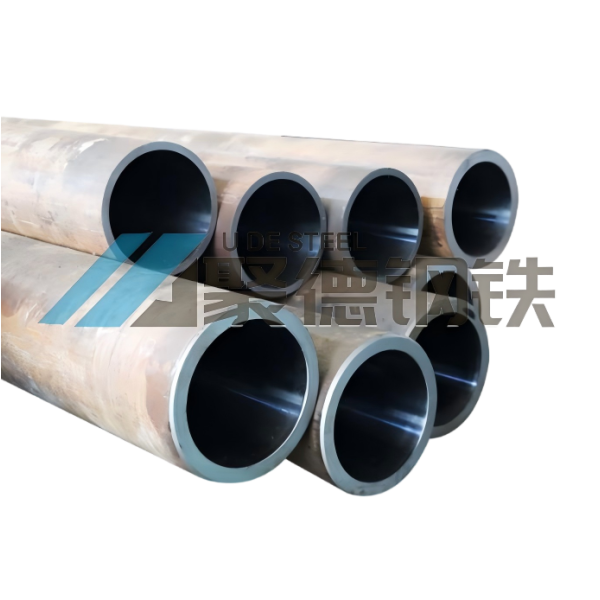

ASTM A269 304 Cold Drawn Seamless Stainless Steel Hydraulic Cylinder Honed Tube Supplier

ASTM A269 304 Cold Drawn Seamless Stainless Steel Hydraulic Cylinder Honed Tube is a high-precision stainless steel tube specially designed for hydraulic and pneumatic cylinder applications. Manufactured from 304 stainless steel seamless tube through advanced cold drawing and honing processes, it provides excellent dimensional accuracy, smooth internal surface finish, superior corrosion resistance, and reliable mechanical performance.

Product Specifications Of ASTM A269 304 Stainless Steel Honed Tube
Item Description
Product Name 304 Hydraulic Cylinder Honed Tube
Material Grade ASTM 304 / UNS S30400
Standard ASTM A269
Manufacturing Process Seamless + Cold Drawn + Honed
Type Stainless Steel Hydraulic Cylinder Tube
Outer Diameter (OD) 20–500 mm
Inner Diameter (ID) 10–450 mm
Wall Thickness 2–30 mm
Length 1000–12000 mm or Customized
ID Tolerance H7 / H8 / Customized
Inner Surface Roughness Ra ≤0.2–0.4 μm
Straightness ≤0.5 mm/m
Surface Finish Honed ID / Polished OD
Certificate EN10204 3.1 MTC
ASTM A269 304 Cold Drawn Seamless Stainless Steel Hydraulic Cylinder Honed Tube Supplier
Material & Composition Of 304 Cold Drawn Seamless Stainless Steel Tube

ID.:10–450 mm
OD:20–500 mm

W.T.: 2–30 mm

Technique:Cold Draw

Material:304 316 ect stainless steel

Length: 1000–12000 mm or Customized

Product Features Of Hydraulic Cylinder Honed Tube

  • ASTM A269 standard stainless steel tube
  • 304 austenitic stainless steel with excellent corrosion resistance
  • Seamless cold drawn construction for high precision
  • Precision honed internal surface
  • Low friction and excellent sealing performance
  • Tight dimensional tolerance
  • High concentricity and straightness
  • Excellent weldability and machinability
  • Suitable for high-pressure hydraulic applications

Chemical Composition (ASTM 304)

Element Content (%)
Carbon (C) ≤0.08
Silicon (Si) ≤1.00
Manganese (Mn) ≤2.00
Phosphorus (P) ≤0.045
Sulfur (S) ≤0.030
Chromium (Cr) 18.0–20.0
Nickel (Ni) 8.0–10.5
Iron (Fe) Balance

Mechanical Properties (304 Stainless Steel)
Property Value
Tensile Strength ≥515 MPa
Yield Strength ≥205 MPa
Elongation ≥40%
Hardness ≤92 HRB
Density 7.93 g/cm³
Elastic Modulus 193 GPa
Precision Honing Performance
Item Specification
Inner Surface Roughness Ra 0.2–0.4 μm
ID Accuracy H7 / H8
Roundness ≤0.02 mm
Straightness ≤0.5 mm/m
Bore Quality Mirror-like finish
Manufacturing Process
  • High-quality 304 stainless steel billet selection
  • Seamless tube manufacturing
  • Solution annealing treatment
  • Pickling and passivation
  • Cold drawing for dimensional accuracy
  • Precision honing of inner diameter
  • Straightening and polishing
  • Dimensional inspection
  • Surface roughness testing
  • Non-destructive testing and final packaging
FAQ

1. What is a 304 stainless steel honed tube?

A 304 stainless steel honed tube is a precision seamless tube processed by cold drawing and honing to achieve a smooth inner surface and accurate dimensions for hydraulic cylinder applications.

2. Why is honing required for hydraulic cylinder tubes?

Honing creates a smooth and precise inner bore that reduces friction, improves sealing performance, and extends the working life of hydraulic cylinders.

3. What is ASTM A269 used for?

ASTM A269 is a standard specification for seamless and welded austenitic stainless steel tubing used in general corrosion-resistant and industrial applications.

4. What is the difference between 304 and 316L honed tubes?

304 stainless steel provides excellent general corrosion resistance, while 316L contains molybdenum for improved resistance in marine and chemical environments.

5. Can you supply custom hydraulic cylinder tubes?

Yes. JUDE STEEL supplies customized OD, ID, wall thickness, length, tolerance, and surface requirements according to customer drawings.

6. Do you provide material certificates?

Yes. We provide EN10204 3.1 Material Test Certificates (MTC), inspection reports, and third-party certificates upon request.
