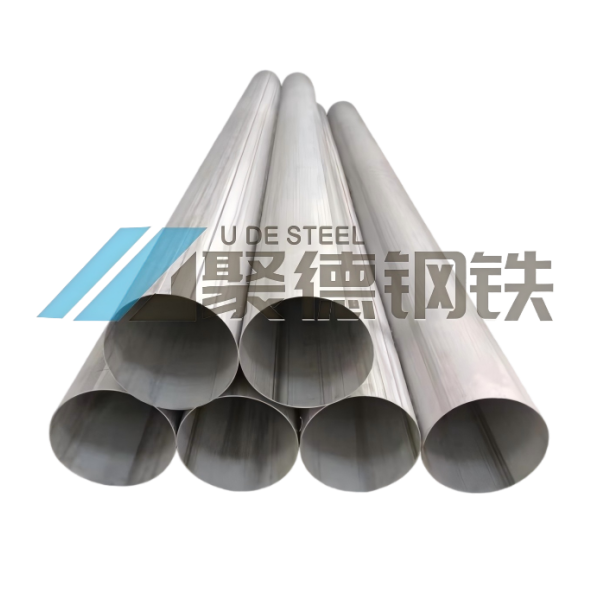

ASTM A312 TP304L 6 Inch Sch 10S Welded Stainless Steel Pipe For Chemical Processing And Industrial Piping Systems
ASTM A312 TP304L 6 Inch Sch 10S Welded Stainless Steel Pipe For Chemical Processing And Industrial Piping Systems
Specifications
Model Number :
304L
Grade :
TP304L (UNS S30403)
Packaging Details :
Standard Package
MOQ :
1
Delivery Time :
8 ~ 14 days
Size(NPS) :
6 Inch
Price :
negotiable
Shape :
Round
Payment Terms :
T/T
Advantage :
High Corrosion Resistance
Supply Ability :
Adequate production
Applications :
Chemical Processing, Industrial Piping Systems etc.
Certification :
ISO,SGS,CE,BIS
Standard :
ASTM A312, ASTM A358, ASTM A778, ASME B36.19M
Place of Origin :
China
Type :
Welded Stainless Steel Pipe
Brand Name :
JUDE STEEL
Product name :
ASTM A312 TP304L 6 Inch Sch 10S Welded Stainless Steel Pipe
Description
ASTM A312 TP304L 6 Inch Sch 10S Welded Stainless Steel Pipe For Chemical Processing And Industrial Piping Systems

ASTM A312 TP304L 6 Inch Sch 10S Welded Stainless Steel Pipe is a welded stainless steel pipe manufactured from TP304L low-carbon austenitic stainless steel in accordance with the ASTM A312 standard. It features a 6-inch nominal pipe size (NPS 6 / DN150) and a Schedule 10S wall thickness, making it an economical and reliable choice for low- to medium-pressure piping systems.

Key attributes

Specifications

Item Specification
Product Name ASTM A312 TP304L 6 Inch Sch 10S Welded Stainless Steel Pipe
Material Grade TP304L (UNS S30403)
Product Type Welded Stainless Steel Pipe
Nominal Pipe Size (NPS) 6 Inch
Nominal Diameter (DN) DN150
Pipe Schedule Sch 10S
Outside Diameter (OD) 168.3 mm (6.625")
Wall Thickness 3.40 mm (0.134")
Inside Diameter (ID) 161.5 mm (6.358")
Theoretical Weight 13.8 kg/m (9.27 lb/ft)
Standard ASTM A312, ASME B36.19M
Manufacturing Process Electric Fusion Welded (EFW) / ERW / TIG Welded (as required)
Standard Length 6 m, 12 m, or Customized
End Type Plain End (PE), Beveled End (BE), Threaded (Optional)
Surface Finish Pickled & Annealed (P&A), Bright Annealed (BA), Polished, No.4
Inspection & Testing PMI, Hydrostatic Test, Eddy Current Test, Ultrasonic Test, Dimensional Inspection, Visual Inspection
Certification EN 10204 3.1 Mill Test Certificate (MTC), ISO 9001
Packing Plastic Caps, Bundles, Wooden Cases, or Export Seaworthy Packing
Applications Chemical Processing, Industrial Piping Systems, Petrochemical Plants, Water Treatment, Food & Beverage Processing, Pharmaceutical Industry, Heat Exchanger Systems, Oil & Gas, Marine Engineering
ASTM A312 TP304L 6 Inch Sch 10S Welded Stainless Steel Pipe For Chemical Processing And Industrial Piping Systems
Products Description

Compared with standard TP304, TP304L contains a lower carbon content (maximum 0.03%), which significantly improves weldability and reduces the risk of intergranular corrosion after welding. This makes it particularly suitable for fabrication, field welding, and corrosive service environments.
The pipe has a 168.3 mm outside diameter and a 3.40 mm wall thickness, providing an excellent balance of strength, corrosion resistance, and weight. It is manufactured in accordance with ASME B36.19M dimensional requirements and is available in standard or custom lengths to meet different project needs.

Chemical Composition (ASTM A312 TP304L)
Element Content (%)
Carbon (C) ≤ 0.030
Silicon (Si) ≤ 0.75
Manganese (Mn) ≤ 2.00
Phosphorus (P) ≤ 0.045
Sulfur (S) ≤ 0.030
Chromium (Cr) 18.0–20.0
Nickel (Ni) 8.0–12.0
Nitrogen (N) ≤ 0.10
Iron (Fe) Balance

Physical Properties (TP304L Stainless Steel)

Property Value
Density 7.93 g/cm³
Melting Range 1,400–1,450°C
Thermal Conductivity (100°C) 16.2 W/m·K
Electrical Resistivity (20°C) 0.72 μΩ·m
Specific Heat (20°C) 500 J/kg·K
Coefficient of Thermal Expansion (20–100°C) 17.2 × 10⁻⁶/K
Modulus of Elasticity 193 GPa

Mechanical Properties (ASTM A312 TP304L)

Property Value
Tensile Strength ≥ 485 MPa (70 ksi)
Yield Strength (0.2% Offset) ≥ 170 MPa (25 ksi)
Elongation ≥ 35%
Hardness ≤ 92 HRB (Approx. ≤ 201 HB)
Modulus of Elasticity 193 GPa
Poisson's Ratio 0.29
Common Materials
Grade Standard
TP304
ASTM A312
TP304L ASTM A312
TP316 ASTM A312
TP316L ASTM A312
TP321 ASTM A312
Duplex 2205 ASTM A790
6 Inch Sch 10S Welded Stainless Steel Pipe applications

Thanks to its excellent resistance to oxidation, moisture, mild chemicals, and many industrial fluids, ASTM A312 TP304L 6 Inch Sch 10S welded stainless steel pipe is widely used in chemical processing plants, industrial piping systems, petrochemical facilities, water treatment plants, food and beverage processing, pharmaceutical manufacturing, heat exchanger systems, and general process piping.
