ASTM A554 304 Mirror Polished Stainless Steel Round Tube 5/8 (16mm) OD × 1.5mm Wall × 6m (20 Ft) Supplier
ASTM A554 304 Mirror Polished Stainless Steel Round Tube 5/8 (16mm) OD × 1.5mm Wall × 6m (20 Ft) Supplier
Specifications
Model Number :
304
Length :
6m (20 Ft)
Price :
negotiable
Standard :
ASTM A554
Type :
Round Stainless Steel Tube
Packaging Details :
Standard Package
MOQ :
1
Delivery Time :
8 ~ 14 days
Wall Thickness :
1.5mm
Payment Terms :
T/T
Grade :
304 / UNS S30400
OD :
5/8" (16mm)
Supply Ability :
Adequate production
Product name :
ASTM A554 304 Mirror Polished Stainless Steel Round Tube
Brand Name :
JUDE STEEL
Applications :
Catering & sanitary applications shop fittings boat awnings stern and bow rails exhaust tubes etc.
Certification :
ISO,SGS,CE,BIS
Place of Origin :
China
Description

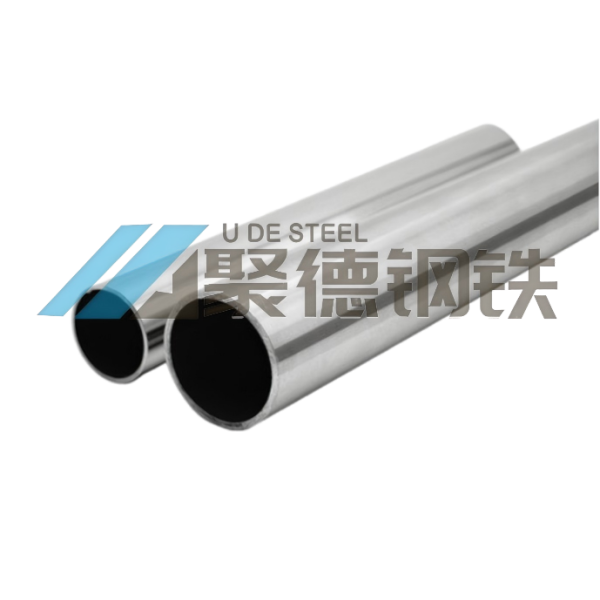

ASTM A554 304 Mirror Polished Stainless Steel Round Tube 5/8" (16mm) OD × 1.5mm Wall × 6m (20 Ft) Supplier

ASTM A554 304 Mirror Polished Stainless Steel Round Tube is a premium decorative and mechanical stainless steel tube manufactured from AISI 304 stainless steel. This tube features a 5/8 inch (16mm) outside diameter, 1.5mm wall thickness, and a standard 6m (20 Ft) length with a high-quality mirror polished finish.
Manufactured according to ASTM A554 specifications, this 304 stainless steel round tube provides excellent corrosion resistance, superior surface appearance, good weldability, and easy fabrication. The reflective mirror finish stainless steel tube is widely used for architectural decoration, handrails, furniture, food processing equipment, and custom fabrication projects.

Key attributes
Item Specification
Product Name ASTM A554 304 Mirror Polished Stainless Steel Round Tube
Material Grade 304 / UNS S30400
Standard ASTM A554
Tube Type Round Stainless Steel Tube
Outside Diameter (OD) 5/8" (16mm)
Wall Thickness 1.5mm
Inside Diameter (ID) Approx. 13mm
Length 6m (20 Ft)
Surface Finish #8 Mirror Polished
Manufacturing Process Welded, Cold Finished
Shape Round
End Type Plain End
Certification EN 10204 3.1 MTC Available
ASTM A554 304 Mirror Polished Stainless Steel Round Tube 5/8
Material & Composition

Standard: ASTM A554
Grade: 304 / UNS S30400
Wall Thickness: 1.5mm
OD:5/8" (16mm)
Length:6m (20 Ft)
ID:Approx. 13mm

Available Sizes Of 304 Mirror Polished Stainless Steel Tube

OD Wall Thickness Length
5/8" (16mm) 1.5mm 1m
5/8" (16mm) 1.5mm 2m
5/8" (16mm) 1.5mm 3m
5/8" (16mm) 1.5mm 4m
5/8" (16mm) 1.5mm 5m
5/8" (16mm) 1.5mm 6m (20 Ft)
Custom Size Available Customized Length

Chemical Composition Of ASTM A554 Stainless Steel Tube
Element 304 Stainless Steel
Carbon (C) ≤0.08
Silicon (Si) ≤1.00
Manganese (Mn) ≤2.00
Phosphorus (P) ≤0.045
Sulfur (S) ≤0.030
Chromium (Cr) 18.00–20.00
Nickel (Ni) 8.00–10.50
Nitrogen (N) ≤0.10
Iron (Fe) Balance
Physical Properties Of ASTM A554 304 Stainless Steel Round Tube
Property Value
Density 7.93 g/cm³
Melting Point 1400–1450°C
Thermal Conductivity 16.2 W/m·K
Electrical Resistivity 0.72 μΩ·m
Specific Heat 500 J/kg·K
Modulus of Elasticity 193 GPa
Mechanical Properties Of Decorative Mirror Stainless Steel Tube
Property Value
Tensile Strength ≥515 MPa
Yield Strength ≥205 MPa
Elongation ≥40%
Hardness ≤201 HB
Reduction of Area ≥50%
Applications Of Stainless Steel Grade 304 Tube

Catering & sanitary applications
shop fittings
boat awnings
stern and bow rails
exhaust tubes

FAQ

1. What is ASTM A554 stainless steel tube?

ASTM A554 is a specification for welded stainless steel mechanical tubing and ornamental tubing, commonly used for decorative, structural, and fabrication applications.

2. Is 304 stainless steel good for mirror polished tubes?

Yes. 304 stainless steel mirror polished tube provides excellent corrosion resistance, smooth appearance, and easy maintenance, making it suitable for architectural and decorative applications.

3. What is the standard length of this stainless steel round tube?

The standard length is 6 meters (20 feet). Custom lengths are available according to customer requirements.

4. What is the difference between ASTM A554 and ASTM A312?

ASTM A554 is mainly used for mechanical and ornamental stainless steel tubing, while ASTM A312 is commonly used for pressure piping applications.

5. Can you supply custom stainless steel tube sizes?

Yes. JUDE STEEL provides customized solutions including different diameters, wall thicknesses, lengths, and surface finishes.

6. Do you provide MTC certificates?

Yes. We can provide EN 10204 3.1 Material Test Certificates and inspection documents upon request.
