2250 2520 914 Material Wide Wire Mesh
2250 2520 914 Material Wide Wire Mesh
2250 2520 914 Material Wide Wire Mesh
2250 2520 914 Material Wide Wire Mesh
Specifications
Brand Name :
JIUFU
Model Number :
JF-6002
Certification :
ISO
Place of Origin :
ANPING,CHINA
MOQ :
30 Square Meter
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000 Square Meter per day
Delivery Time :
7-20 days
Packaging Details :
Wooden Box
Product Name :
Wide Wire Mesh
Material :
2250 2520 914
Hole Type :
Square Hole
Wire Diameter :
0.12-0.8mm
Mesh Count :
90x60 mesh
Width :
1.5-6.5m
Application :
industry, mining, petroleum, chemical, food
Usage :
Filter
Feature :
acid resistance
Color :
Natural
Description

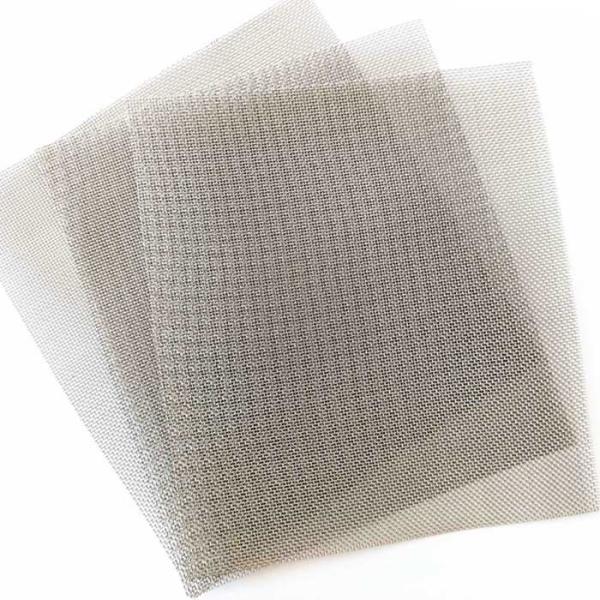

2250 2520 914 Material Wide Wire Mesh

Stainless steel wide wire mesh, also known as stainless steel screen, stainless steel woven mesh, stainless steel filter mesh, stainless steel wire mesh, etc.

Stainless steel wide wire mesh can be divided into: extra wide stainless steel wire mesh, heavy duty stainless steel wire mesh.

Production process: the warp and weft wire diameters are the same, each diameter wire crosses up and down every two (or more) weft wires, and each weft wire crosses every two (or more) diameter wires. It is made by threading a fork up and down.

Stainless steel wide wire mesh weaving method: plain weave, twill weave

Stainless steel wide wire mesh material: 201, 304, 304L, 321, 316, 316L, 310S, 2250, 2520, 914 and other materials

Stainless steel wide wire mesh width: common widths are 1 meter, 1.2 meters, 1.5 meters, more than 2 meters to 6 meters can be customized

Stainless steel wide wire mesh length: 30 meters, according to customer requirements.

Wide Wire Mesh Specification:

Mesh Count Wire Diameter Opening Size
Material
8
0.80mm
2.375mm
304,304L,316,316L
10
0.60mm
1.94mm
304,304L,316,316L
12
0.50mm
1.61mm
304,304L,316,316L
14
0.50mm
1.314mm
304,304L,316,316L
30×40
0.30mm×0.30mm
0.54mm×0.33mm
304,304L,316,316L
36×40
0.27mm×0.27mm
0.43mm×0.36mm
304,304L,316,316L
40
0.23mm
0.405mm
304,304L,316,316L
40
0.25mm
0.385mm
304,304L,316,316L
50
0.21mm
0.298mm
304,304L,316,316L
50
0.23mm
0.278mm
304,304L,316,316L
40×60
0.25mm×0.28mm
0.635mm×0.143mm
304,304L,316,316L
50×70
0.22mm×0.24mm
0.288mm×0.122mm
304,304L,316,316L
60×80
0.19mm×0.21mm
0.233mm×0.0.107mm
304,304L,316,316L
60×90
0.15mm×0.20mm
0.273mm×0.082mm
304,304L,316,316L
60×100
0.12mm×0.15mm
0.303mm×0.104mm
304,304L,316,316L
