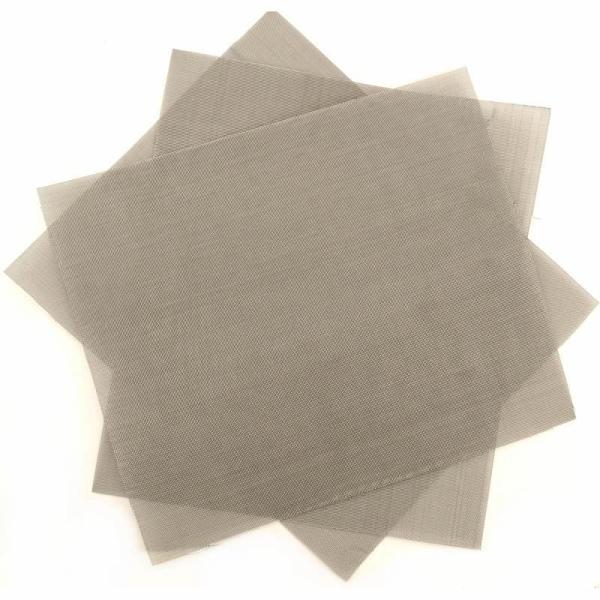

Silver SS304L SS316L Wide Wire Mesh Stainless Steel Diamond Wire Mesh
Silver SS304L SS316L Wide Wire Mesh Stainless Steel Diamond Wire Mesh
Silver SS304L SS316L Wide Wire Mesh Stainless Steel Diamond Wire Mesh
Silver SS304L SS316L Wide Wire Mesh Stainless Steel Diamond Wire Mesh
Specifications
Brand Name :
JIUFU
Model Number :
JF-6007
Certification :
ISO
Place of Origin :
ANPING,CHINA
MOQ :
30 Square Meter
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000 Square Meter per day
Delivery Time :
7-20 days
Packaging Details :
Wooden Box
Product Name :
Wide Wire Mesh
Material :
SS304L SS316L
Wire Diameter :
0.08mm-0.6mm
Mesh Count :
28-90 mesh
Width :
1.5m-6.5m
Application :
Papermaking
Usage :
slurry drainage
Feature :
smooth mesh, consistent wire diameter and uniform mesh
Color :
Silver
Weaving Type :
Plain Weave, Twill Weave
Description

Silver SS304L SS316L Wide Wire Mesh Stainless Steel Diamond Wire Mesh

Diamond Stainless Steel Papermaking Wire Mesh

Material: 304L, 316L


Mesh: 28-90 mesh


Features:

1. Improve the speed of the machine and change the dehydration of the mesh part. Speed up the slurry filtration rate;
2. It changes the arrangement of fibers in the mesh. (Ordinary mesh is a square mesh with more longitudinally arranged fibers, and the produced paper has good longitudinal tension but poor transverse tension);
3. Increase the formation of fibers and reduce problems such as holes and meshes;
4. It avoids the problems of loose wire, poor flatness and pulp inclusion in the wire that are easily caused by the traditional papermaking wire;
5. It will not produce pulping phenomenon due to high speed. destroying fibers;
6. Easy to clean, reduce downtime and long service life.

The special stainless steel mesh for the inner and outer meshes of our company's stainless steel paper-making wire mesh cage is made of raw wire (material 316L) imported from Germany or Japan, which is woven by our company using an imported mesh loom. It has the advantages of smooth mesh, consistent wire diameter and uniform mesh. and its wire diameter and porosity are customized according to the characteristics of the papermaking process.

Papermaking Wire Mesh Specification:

Mesh Count Wire Diameter Opening Size
Material
8
0.80mm
2.375mm
304,304L,316,316L
10
0.60mm
1.94mm
304,304L,316,316L
12
0.50mm
1.61mm
304,304L,316,316L
14
0.50mm
1.314mm
304,304L,316,316L
30×40
0.30mm×0.30mm
0.54mm×0.33mm
304,304L,316,316L
36×40
0.27mm×0.27mm
0.43mm×0.36mm
304,304L,316,316L
40
0.23mm
0.405mm
304,304L,316,316L
40
0.25mm
0.385mm
304,304L,316,316L
50
0.21mm
0.298mm
304,304L,316,316L
50
0.23mm
0.278mm
304,304L,316,316L
40×60
0.25mm×0.28mm
0.635mm×0.143mm
304,304L,316,316L
50×70
0.22mm×0.24mm
0.288mm×0.122mm
304,304L,316,316L
60×80
0.19mm×0.21mm
0.233mm×0.0.107mm
304,304L,316,316L
60×90
0.15mm×0.20mm
0.273mm×0.082mm
304,304L,316,316L
60×100
0.12mm×0.15mm
0.303mm×0.104mm
304,304L,316,316L

Silver SS304L SS316L Wide Wire Mesh Stainless Steel Diamond Wire Mesh

Silver SS304L SS316L Wide Wire Mesh Stainless Steel Diamond Wire Mesh

Silver SS304L SS316L Wide Wire Mesh Stainless Steel Diamond Wire Mesh
